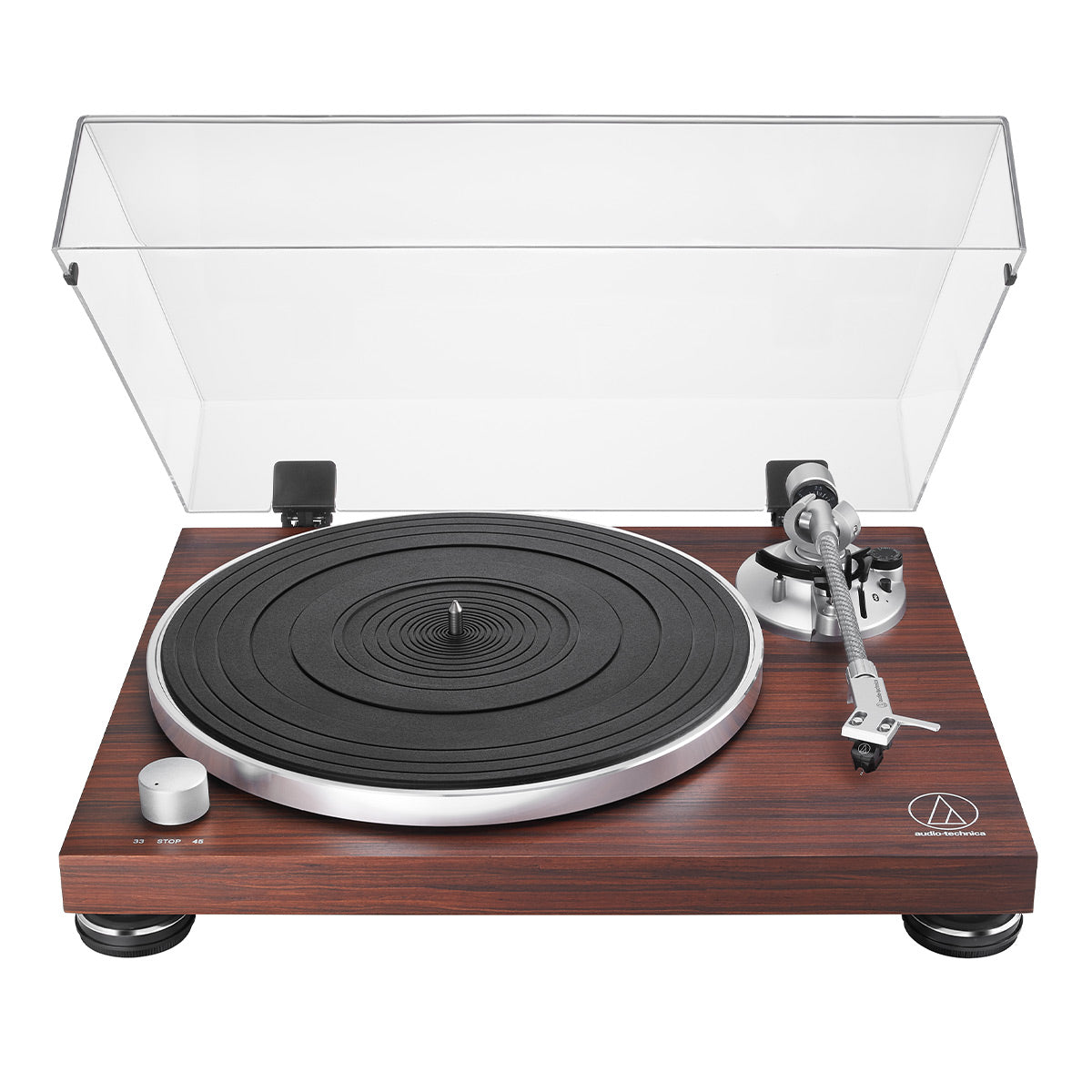

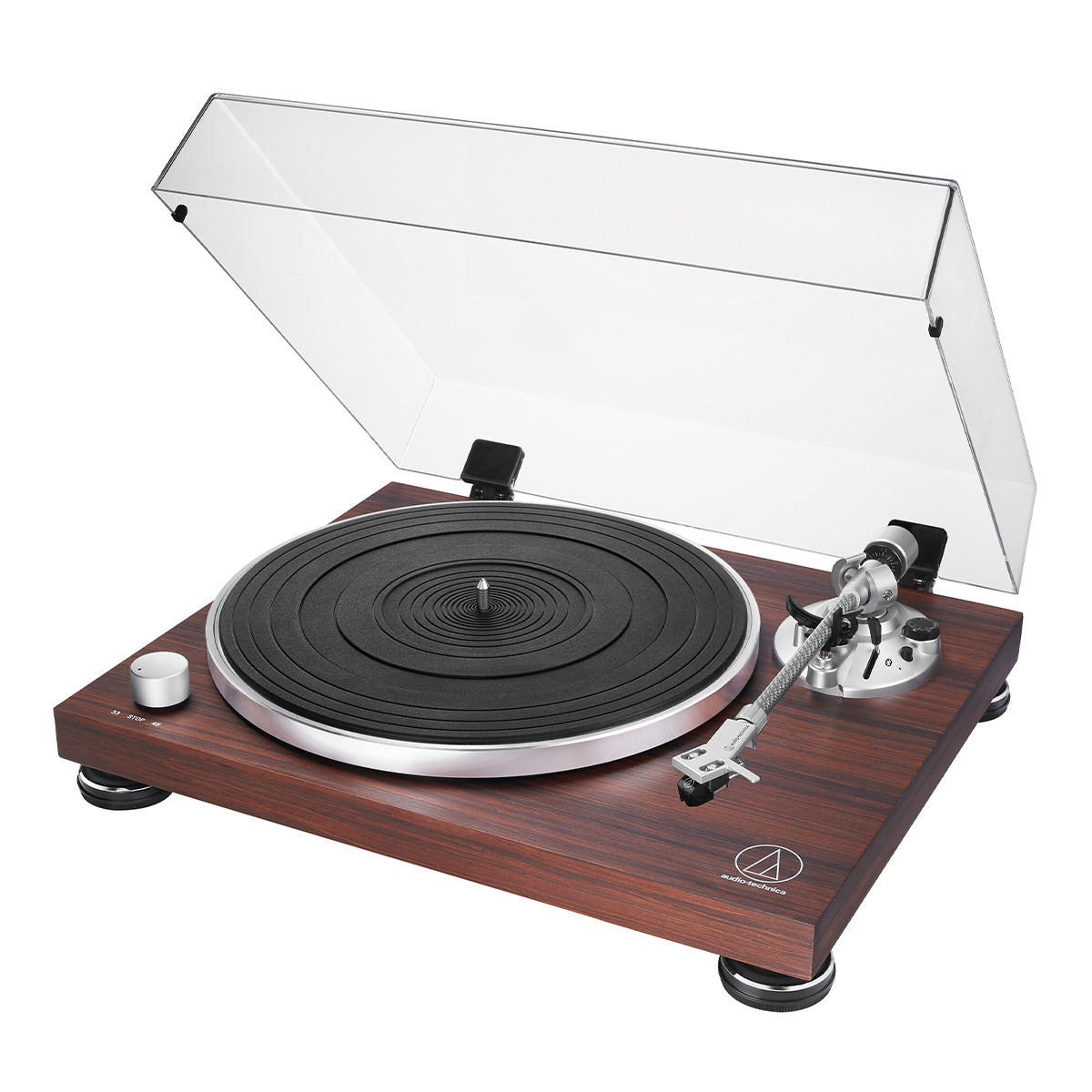

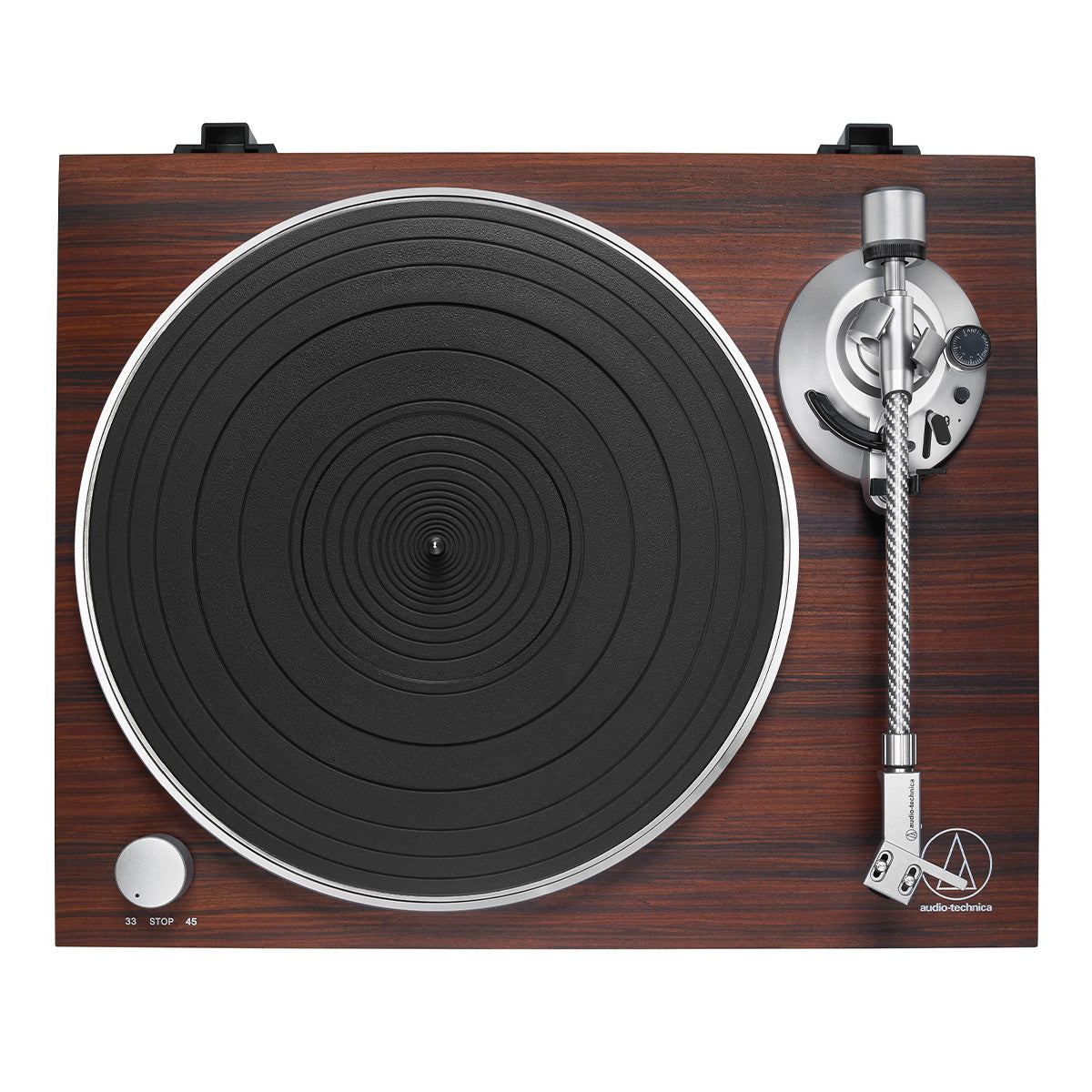

Audio-Technica AT-LPW50BT-RW Wireless Belt-Drive Turntable with Bluetooth (Rosewood)
Overview
Product Information
Specifications
What's In The Box
Product Information
The AT-LPW50BT-RW extends Audio-Technica’s line of fully manual, belt-drive wood turntables by adding the option of wireless connectivity. Now you can enjoy optimal high-fidelity audio reproduction from vinyl with your choice of wired or wireless operation.
Features
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- High-fidelity audio with Bluetooth wireless technology
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 (silver) universal ½“-mount headshell and AT-VM95E (black) Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus

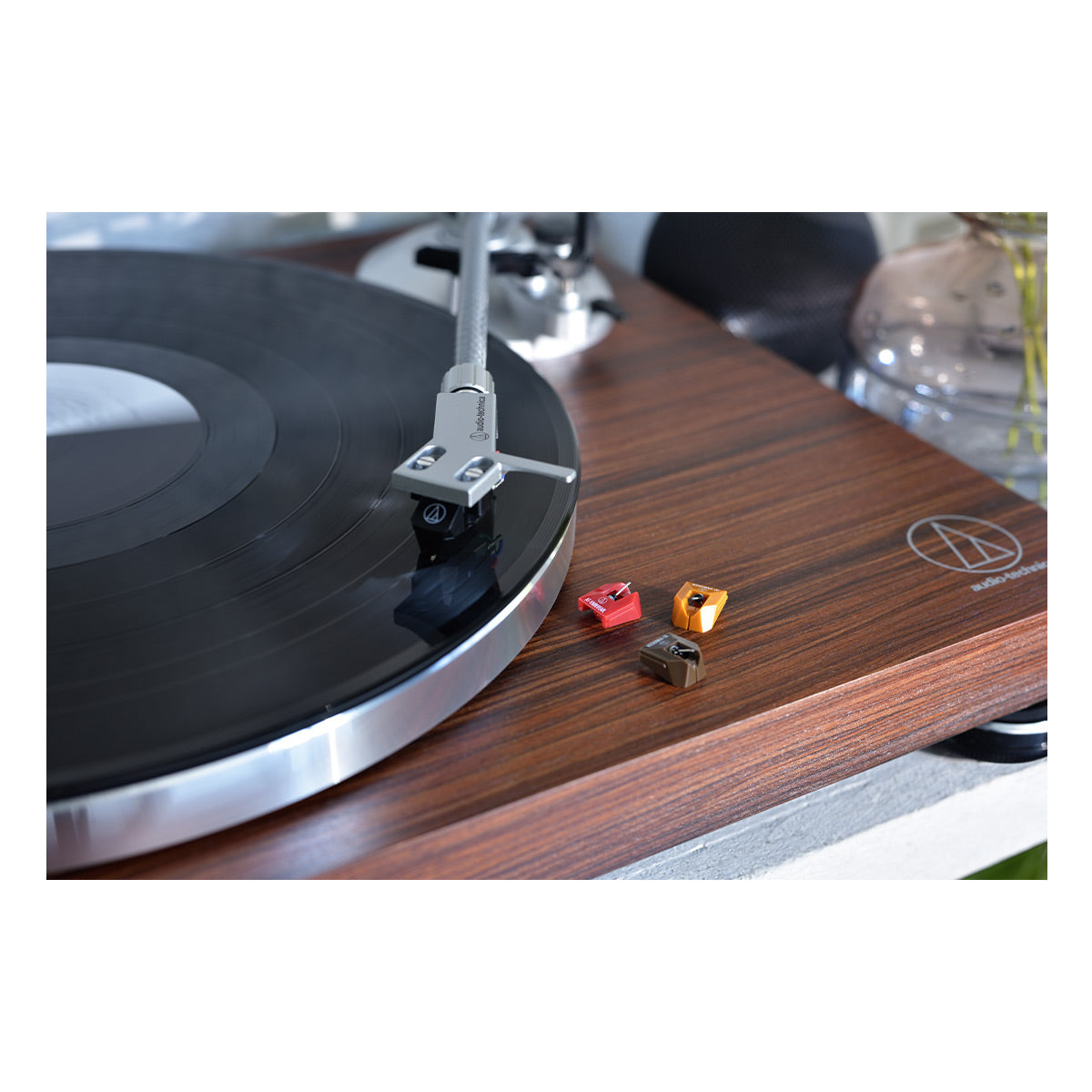

- The AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance 30 mm thick MDF (medium density fiberboard) plinth with rosewood-finished wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
The AT-LPW50BT-RW features an anti-resonance 30 mm thick MDF (medium density fiberboard) plinth, with a stunning rosewood-finished wood veneer, to dampen low-frequency acoustical feedback, and a sensor-monitored motor to ensure accurate platter rotation speeds of 33-1/3 and 45 RPM.

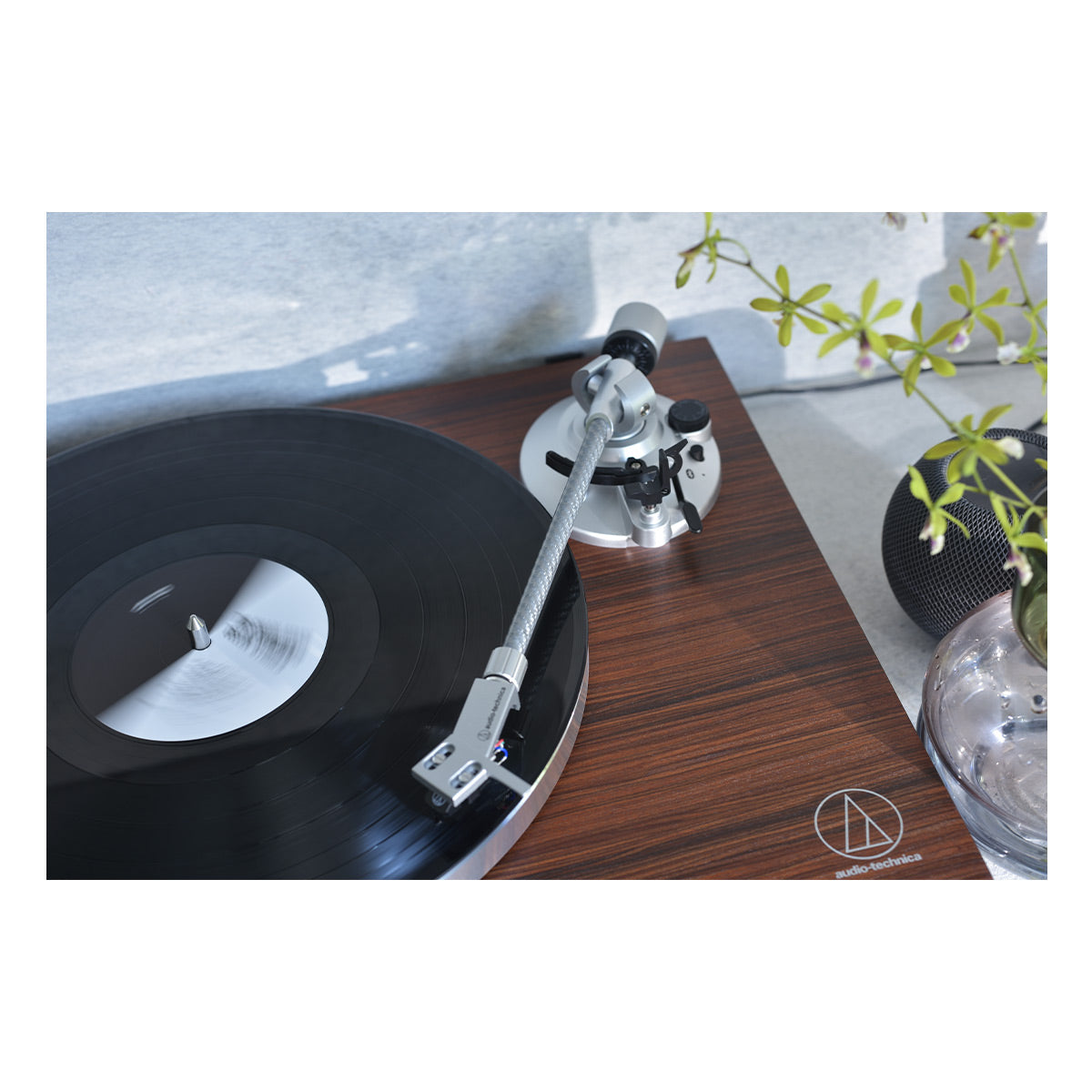

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and a matching matte-silver AT-HS4 universal ½"-mount headshell with a black AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW50BT-RW is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct-wired connection to components with or without a dedicated phono input. The turntable also connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology.
Specifications
- Communication Specifications
- Communication system: Bluetooth version 5.2
- RF Output: 15 mW EIRP
- Maximum Communication Range: Line of sight - approx. 10 m (33')
- Frequency Band: 2.402 GHz to 2.480 GHz
- Modulation Method: GFSK, Pi/4DQPSK, 8DPSK
- Supported Bluetooth Profiles: A2DP
- Supported Codec: SBC
- Turntable Specifications
- Type: Belt-drive manual turntable
- Motor: DC servo with Active Speed Stabilization
- Drive Method: Belt drive
- Speeds: 33-1/3 RPM, 45 RPM
- Turntable Platter: Aluminum Die Casting
- Wow and Flutter: < 0.15 % WRMS (33 RPM) at 3 kHz
- Signal-to-Noise Ratio: > 60 dB
- Output Level
- PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
- LINE: 200 mV nominal at 1 kHz, 5 cm/sec
- Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
- Tonearm Specifications
- Type: Static balanced straight carbon tonearm
- Effective Length: 8.80” (223.6 mm)
- Overhang: 18.6 mm
- Maximum Tracking Error Angle: Less than 2.0°
- Stylus Pressure Adjustment Range; 0 to 3.0 g
- Applicable Cartridge Weight Range (including headshell): 11.5 to 16.5 g
- Cartridge and Headshell Specifications
- Cartridge Model; AT-VM95EBK
- Cartridge Type: VM
- Recommended Load Impedance: 47,000 ohms
- Output Voltage: 4.0 mV (mV at 1 kHz, 5 cm/sec)
- Stylus: 0.3 × 0.7 mil bonded elliptical stylus
- Cantilever: Aluminum pipe
- Tracking Force Range: 1.8 to 2.2 g (standard 2.0 g)
- Cartridge Weight: 6.1 g (0.22 oz)
- Headshell Model: AT-HS4 SV
- Headshell Weight; 8.5 g (including lead wires), 7.7 g (excluding lead wires)
- Headshell Overhang Adjustment: ±5 mm
- General Specifications
- Power Supply Requirements; 100-240 V, 50Hz/60Hz, 0.6A Max.
- Power Consumption: 1.8 W
- AC Adapter: 12 V, 1.0 A
- Dimensions (W x H x D): 16.54" × 4.96" x 13.39"
- Weight: 12lbs
- Replacement Stylus (sold separately) AT-VMN95EBK
- Replacement Headshell (sold separately AT-HS4SV
- Replacement Belt (sold separately) AT-LPW50BT exclusive belt
What's In The Box
- AT-LPW50BT-RW Wireless Belt-Drive Turntable with Bluetooth
- Headshell (AT-HS4 SV) with VM stereo cartridge (AT-VM95EBK)
- Dual RCA (male) to dual RCA (male) stereo cable (Approx. 3.3 ft)
- 45 RPM adapter
- Rubber mat
- Removable hinged dust cover
- AC adapter (Approx. 4.9 ft)
*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
