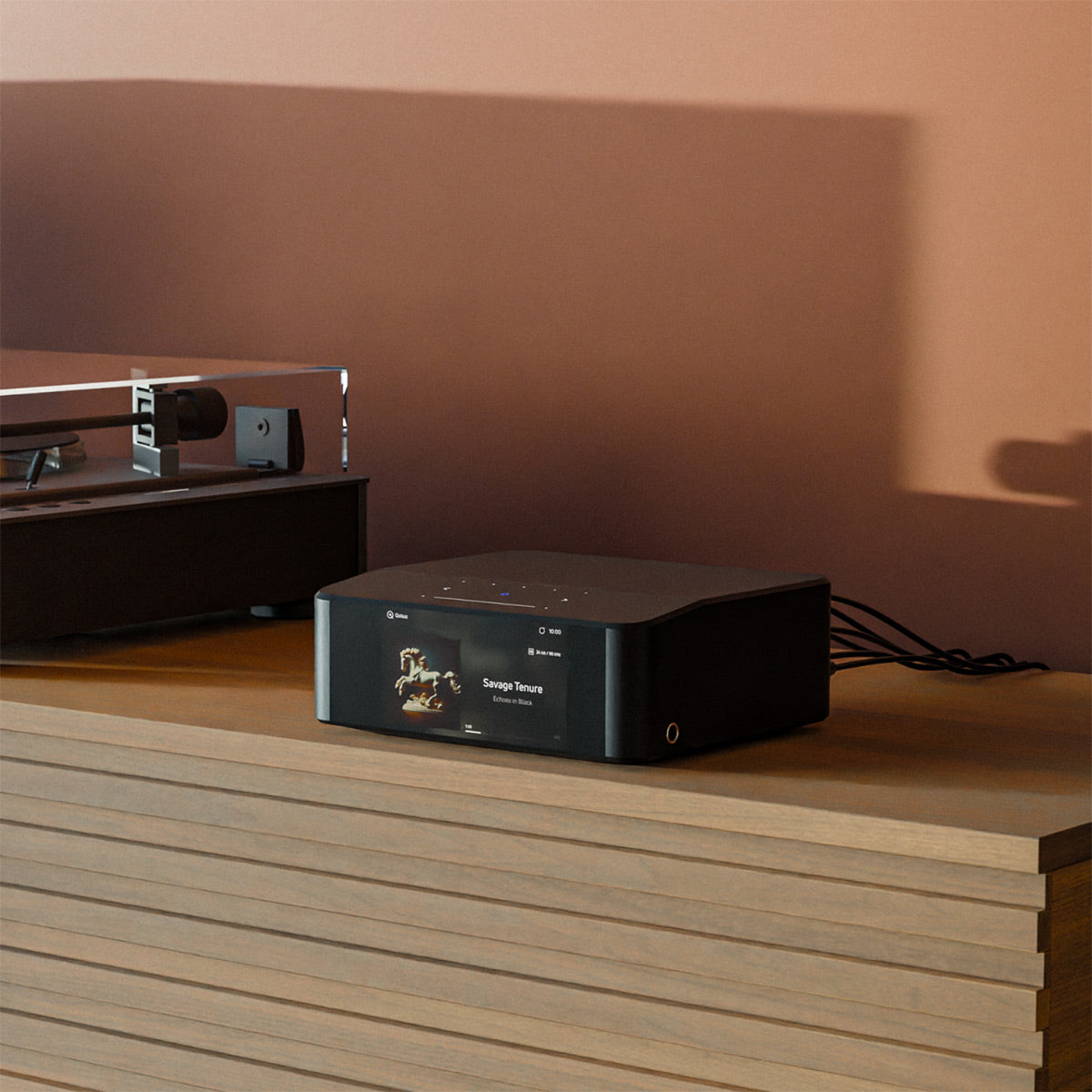

Bluesound NODE ICON Wireless Multi-Room Music Streamer

Regular price $999.00
Sale price $999.00 Regular price
Save $-999.00 (%)
OR

Coming Soon! Pre-order now to reserve yours and your order will ship as soon as product arrives.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Bluesound NODE ICON Overview

Product Information

Model: N530BLKUNV | UPC: 786357003047

Specifications

What's In The Box

Product Information

Model: N530BLKUNV | UPC: 786357003047

From Iconic to Icon

The NODE ICON is a flagship wireless music streamer for the audio obsessed.  Every detail of the design has been carefully engineered to the highest standard of performance, from its breakthrough Bluesound Dual-Mono design with two ESS SABRE® ES9039Q2M DAC chipsets implemented to perfection, to its sleek aluminum chassis and beautiful 5” full-color display. The NODE ICON seamlessly connects to any high-performance amplifier, powered speakers or headphones, bringing BluOS hi-res streaming, Apple AirPlay 2, THX AAA™ technology, aptX™ Adaptive Bluetooth® and DSD support to your existing stereo setup. With HDMI eARC, Dolby Digital and Dirac Live Ready, you can also transform the way you experience music and TV with Dolby downmixing and state-of-the-art room correction technology.

Features

  • Dual-Mono DAC Design
  • BLUOS™ Wireless Multi-Room Platform
  • Airplay 2 Integration
  • Spotify Connect + TIDAL Connect
  • Dual-Band Wi-Fi + Gigabit Ethernet
  • Two-Way APTX™ Adaptive Bluetooth
  • Balanced XLR, Stereo RCA, Optical, Coaxial, Headphone, & Subwoofer Outputs
  • Stereo RCA + Optical Toslink, HDMI eARC, & USB-C Inputs

Benchmark Sound Quality

With carefully selected componentry, and a masterfully engineered Bluesound Dual-Mono design with two ESS SABRE® ES9039Q2M DAC chipsets, the NODE ICON sets a new benchmark for wireless music streamers. It uses the latest fourth generation ESS Hyperstream® technology to let you experience sound with superior dynamic range, ultra-low distortion, and the highest possible resolution ever heard. From engineering to performance, the NODE ICON is the best streamer Bluesound has ever built.

Beautifully Designed for The Audio Obsessed

The NODE ICON features an all-new industrial design, with an aluminium cabinet construction, seamlessly integrated with the large front glass panel and the gorgeous 5" non-touch display.. Its sleek gloss black finish blends seamlessly into any existing setup, with audiophile-grade connections to support high-quality performance. It also features built-in IR learning and a proximity-sensing touch panel that provides quick control and access for up to five programmable presets, volume and playback controls.

Stream Everything

Stream all the music ever recorded, from popular music streaming services to your own digital music libraries, and access everything you listen to, including hi-res FLAC, MQA and DSD 256, in the BluOS app. Apple AirPlay 2 and aptX™ Adaptive Bluetooth® are also built-in to let you enjoy even more music from more apps and services. With HDMI eARC, you can easily connect the NODE ICON to your TV with a single cable and bring hi-res music streaming together with your movie and gaming experiences.

Go Beyond The Hi-Fi System

The NODE ICON can wirelessly connect to Bluesound speakers and stereo components to create a multi room music system connected by BluOS® throughout your whole home. With dual-band Wi-Fi for dropout free listening, you can play your new favorite track everywhere or listen to different music and genres in different rooms with total control from your phone, tablet, or desktop.

World-Class Headphone Amplifier Technology

Lifelike headphone listening is made possible by THX AAA™ technology, the headphone amplifier that boasts the world's most linear response. Its patented feed-forward error correction results in remarkably low noise and distortion, revealing exceptional soundstage and clarity. Connect your high-performance headphones to the left or right full-sized 1/4" headphone jacks and enjoy audiophile listening without fuss or compromise.

Smart Acoustics

The NODE ICON comes ready to intelligently fight bad room acoustics with Dirac Live, available as an upgrade directly from Dirac. Use Dirac's app to measure your room acoustics and eradicate bass traps, echoes, and other unwanted distortions from your audio. The result is clear, balanced, and detailed sound for your music and movie soundtracks. A calibration kit with a high-sensitivity microphone is also required and available from Bluesound.

Specifications

  • Audio
    • Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
    • Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
    • DSD Support: DSD256
    • Supported Multi-Channel Audio Formats: Dolby Digital®
    • Native Sampling Rates: up to 192 kHz
    • Bit Depth: 16-24
    • Audio Controls & EQ: BluOS Controller App
    • DAC: ESS ES9039Q2M x2
    • Signal-to-Noise Ratio: TBD
    • Distortion: TBD
    • Headphone Continuous Output Power (THD<0.1%): 160mW, 16Ω / 230mW, 32Ω / 53mW, 250Ω / 22mW, 600Ω
  • Software & Integrations
    • Operating System: BluOS
    • App Controller Operating System: iOS, Android, Windows, macOS
    • Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
    • Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
    • Album Art Supported: JPG, PNG
    • Music Services & Internet Radio: 23+
    • 3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
    • Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
    • Voice Control Integrations: Amazon Alexa Skills
  • Connections
    • Power Supply: Universal bi-pin AC cord input (100-240AC)
    • Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
    • Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
    • Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
    • Bluetooth Connectivity: Two-Way (transmit & receive)
    • IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
    • IR Input: 3.5mm Jack
    • Optical/Analog Input: Toslink Optical, RCA Analog
    • HDMI Input: HDMI eARC
    • USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
    • USB (other): USB Type C (PC input)
    • Audio Output: Analog RCA Stereo with Fixed option; Balanced XLR Stereo with Fixed option; USB Audio 2.0 (Type A)
    • Coaxial Output: RCA
    • Optical Output: TOSLINK digital optical
    • Trigger Out: 12 Volt
    • Headphone Output: 6.3mm/1/4" Stereo x2; Bluetooth
    • Subwoofer Output: RCA x 1; Wireless to PULSE SUB+
  • User Interface & Control
    • Status Indicator: LED
    • Play/Pause Button: Touch LED
    • Volume Control Buttons: Touch Slider LED
    • Previous/Next Track Buttons Touch LED
    • Preset Buttons: Touch LED x 5
    • Proximity Sensor: Yes
    • Display: 5" Non-touch display
  • General
    • Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
    • Operating Environment: 0°C to 40°C
    • SKU/Version: N530

What's In The Box

  • NODE ICON Wireless Multi-Room Music Streamer
  • Ethernet Cable
  • Stereo RCA to RCA Cable
  • Power Cord
  • Manual
