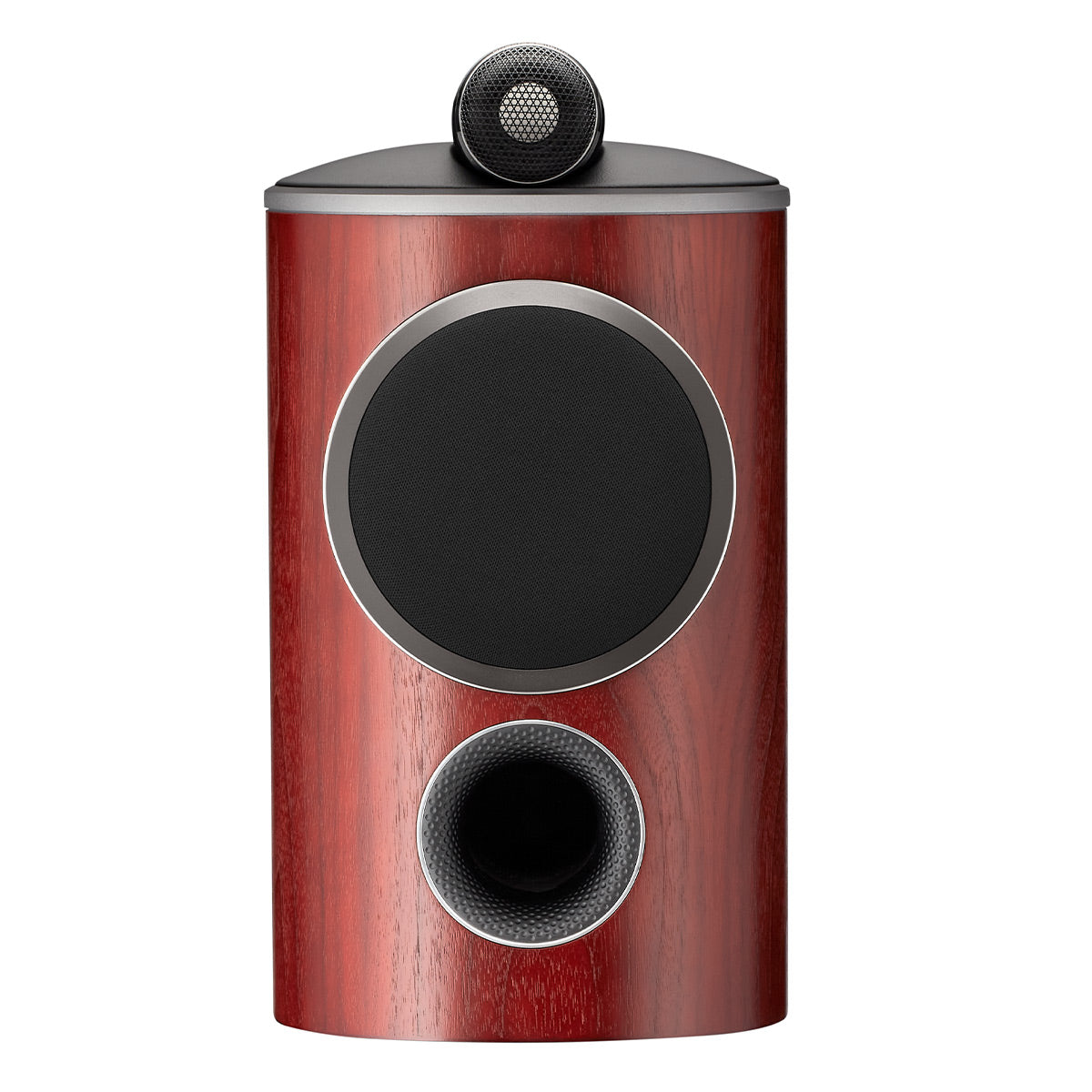

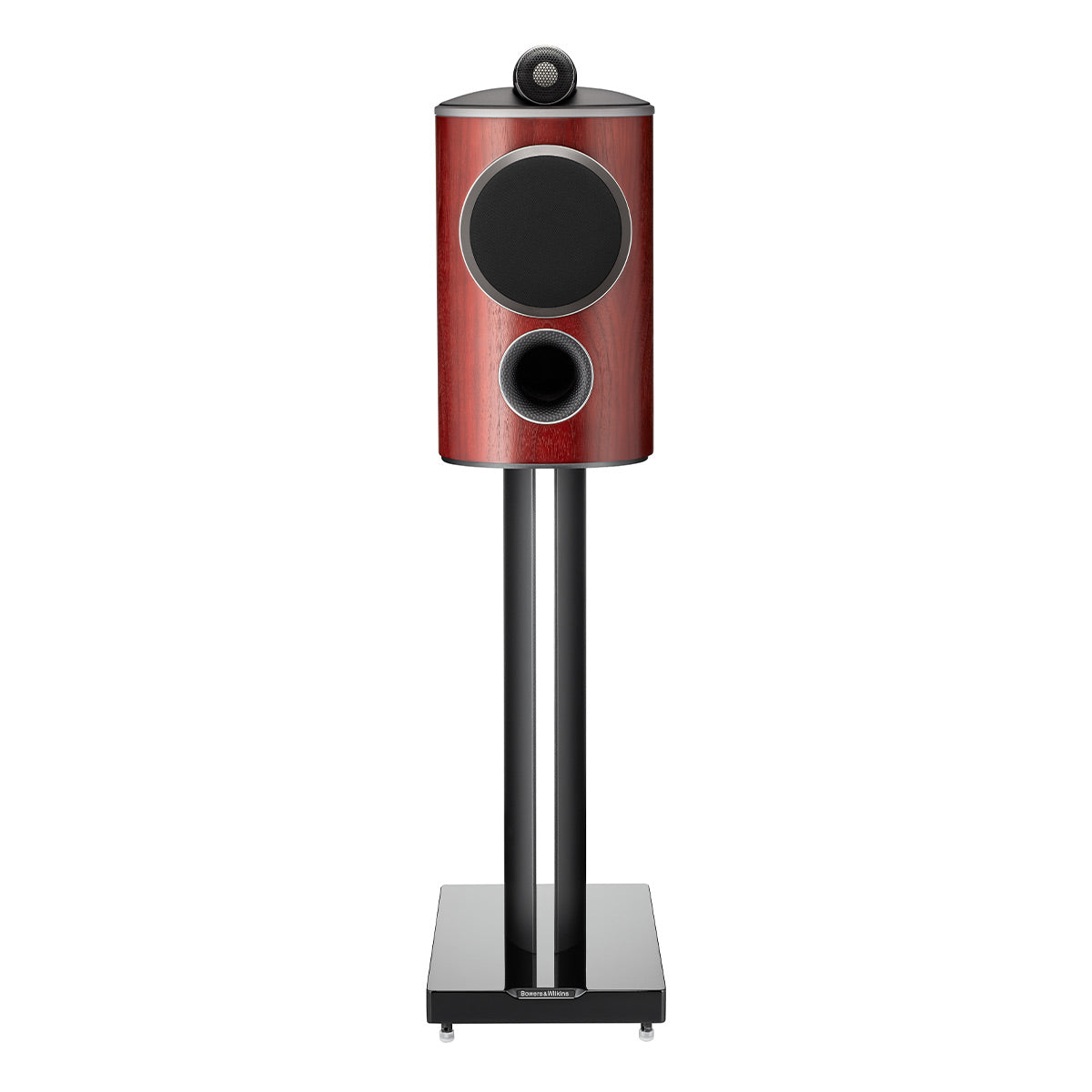

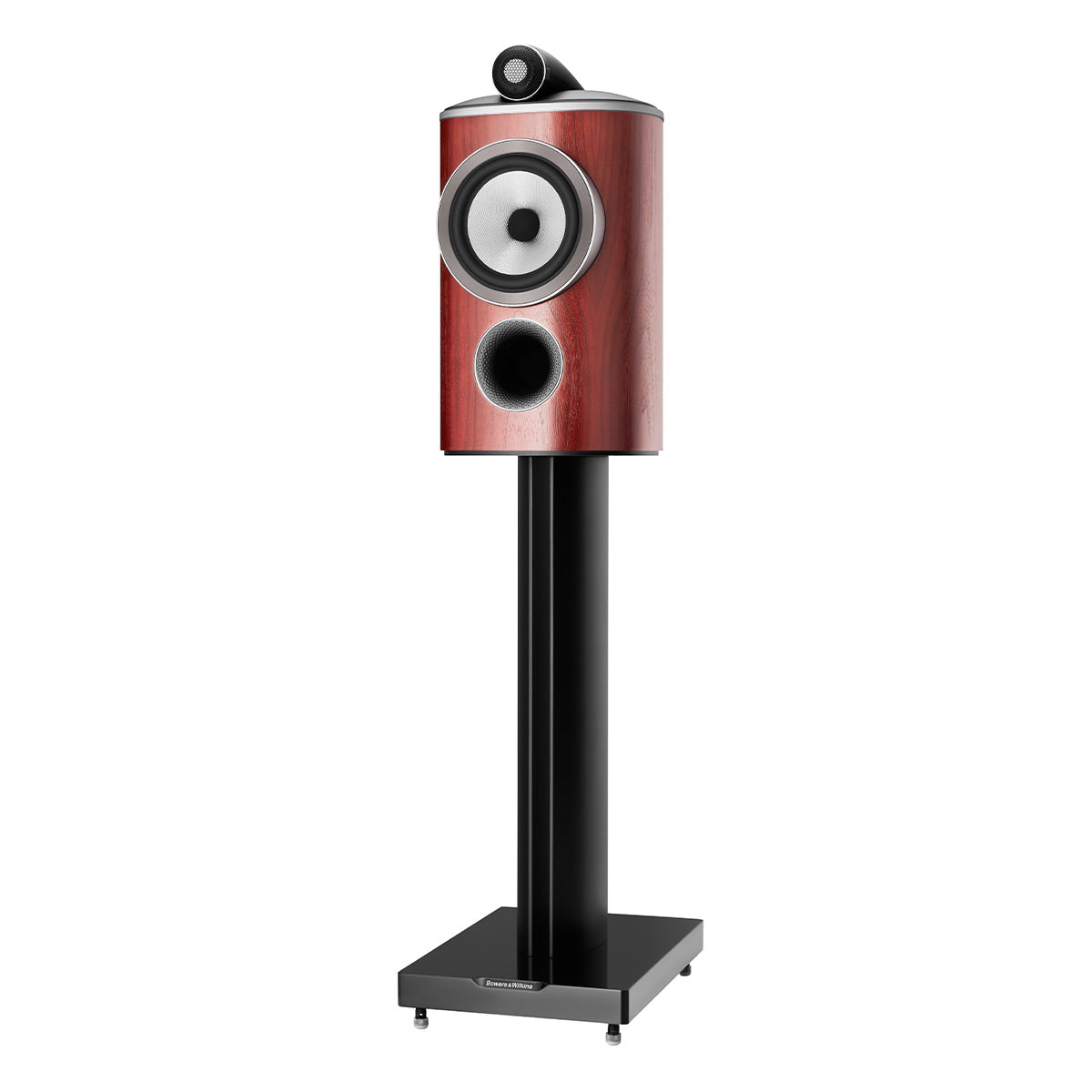

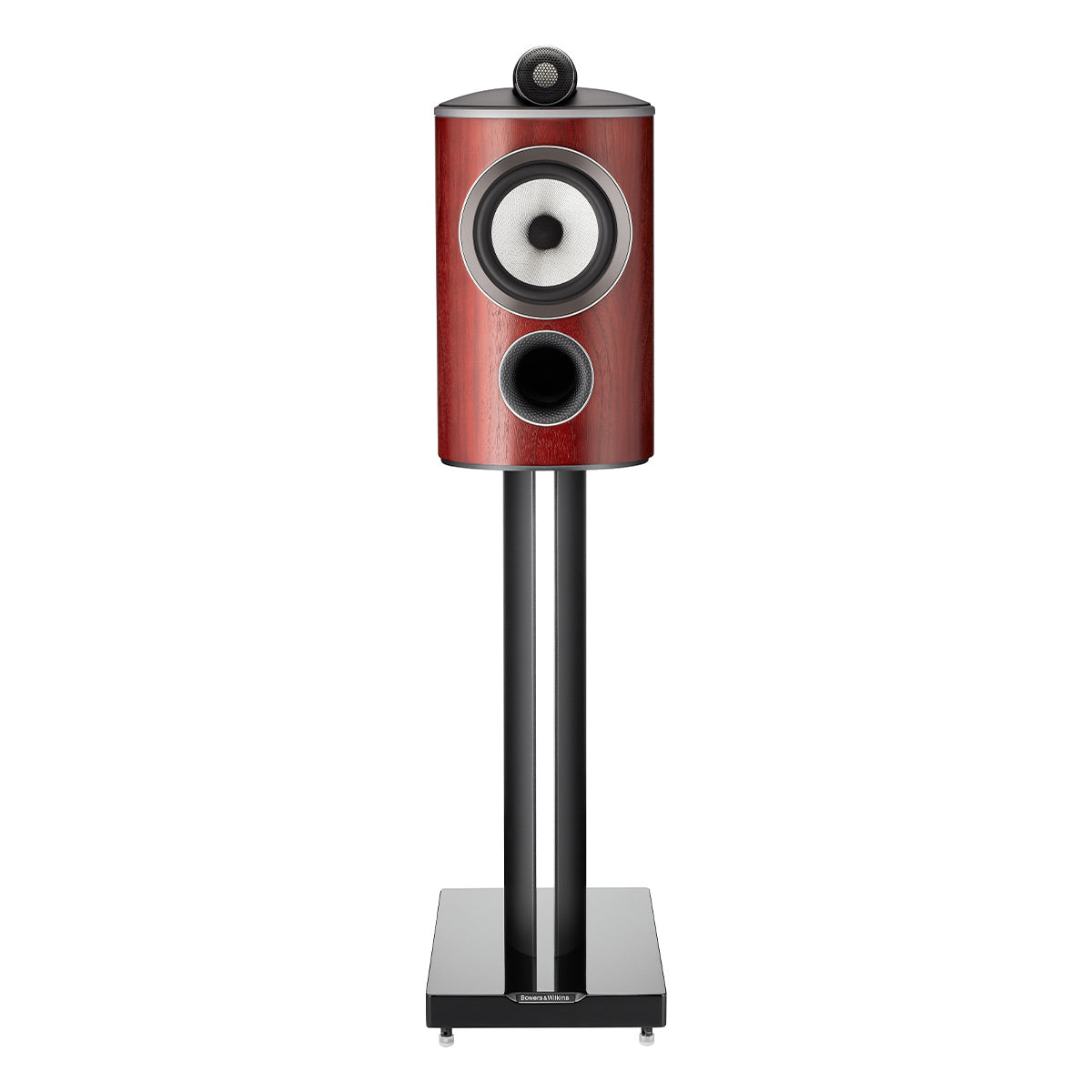

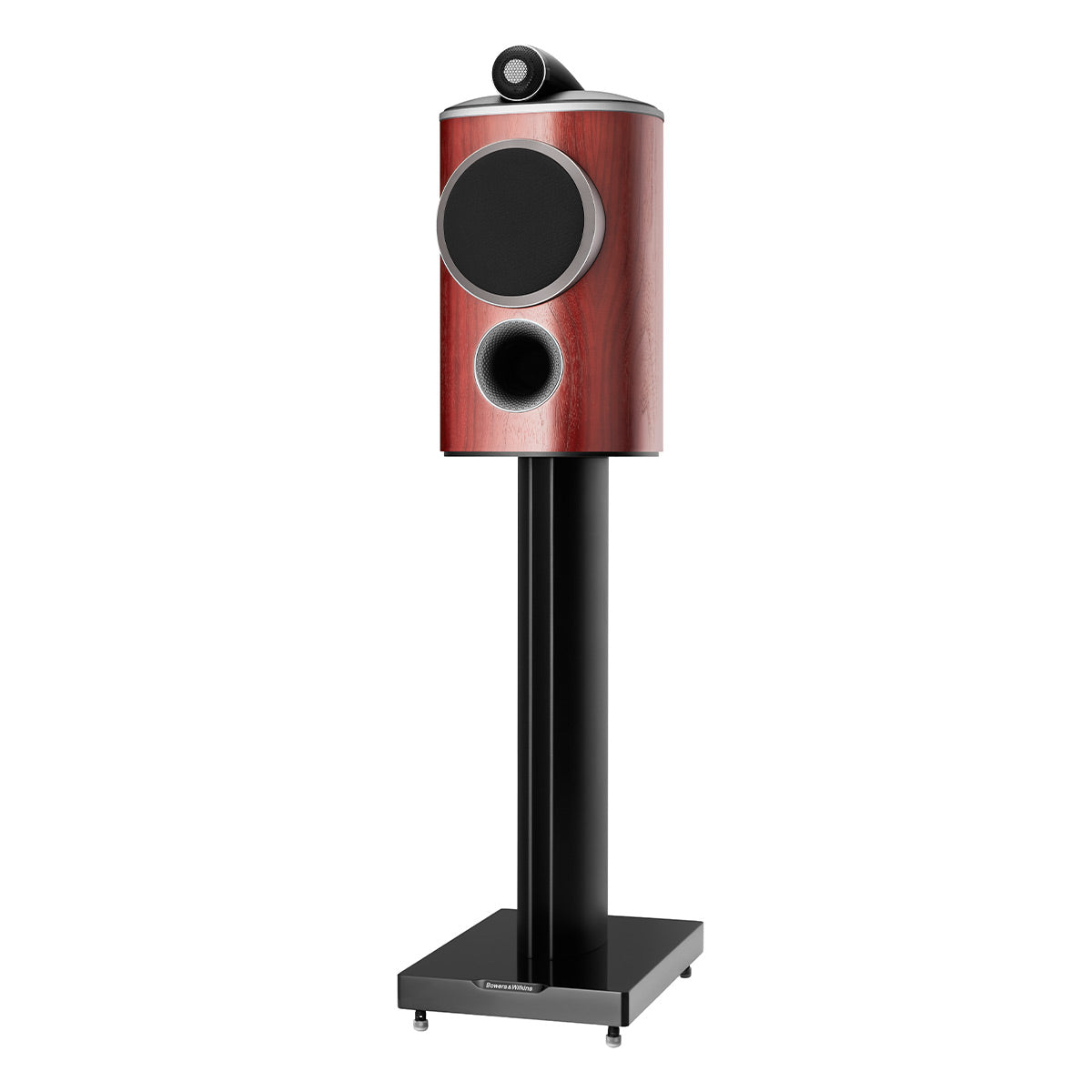

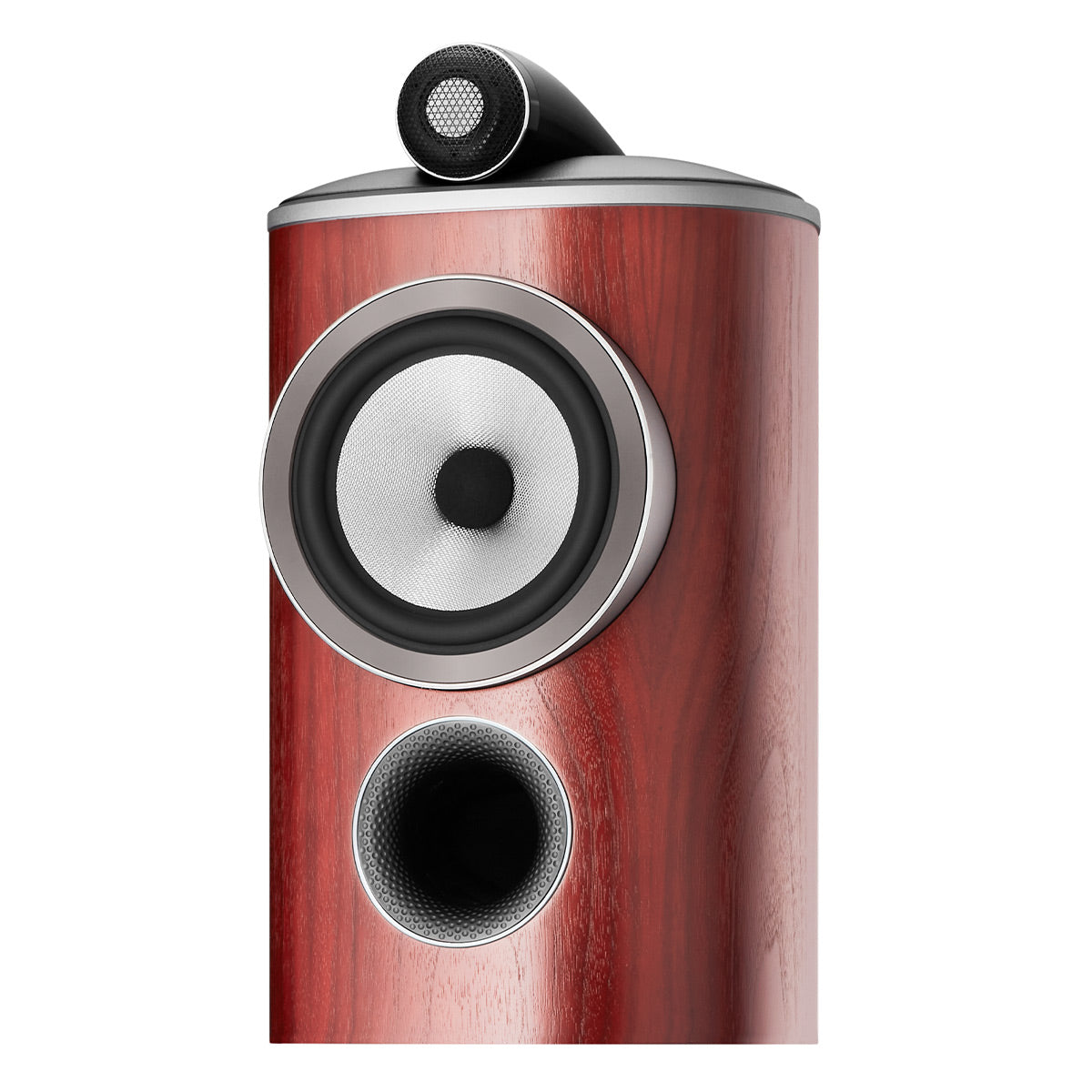

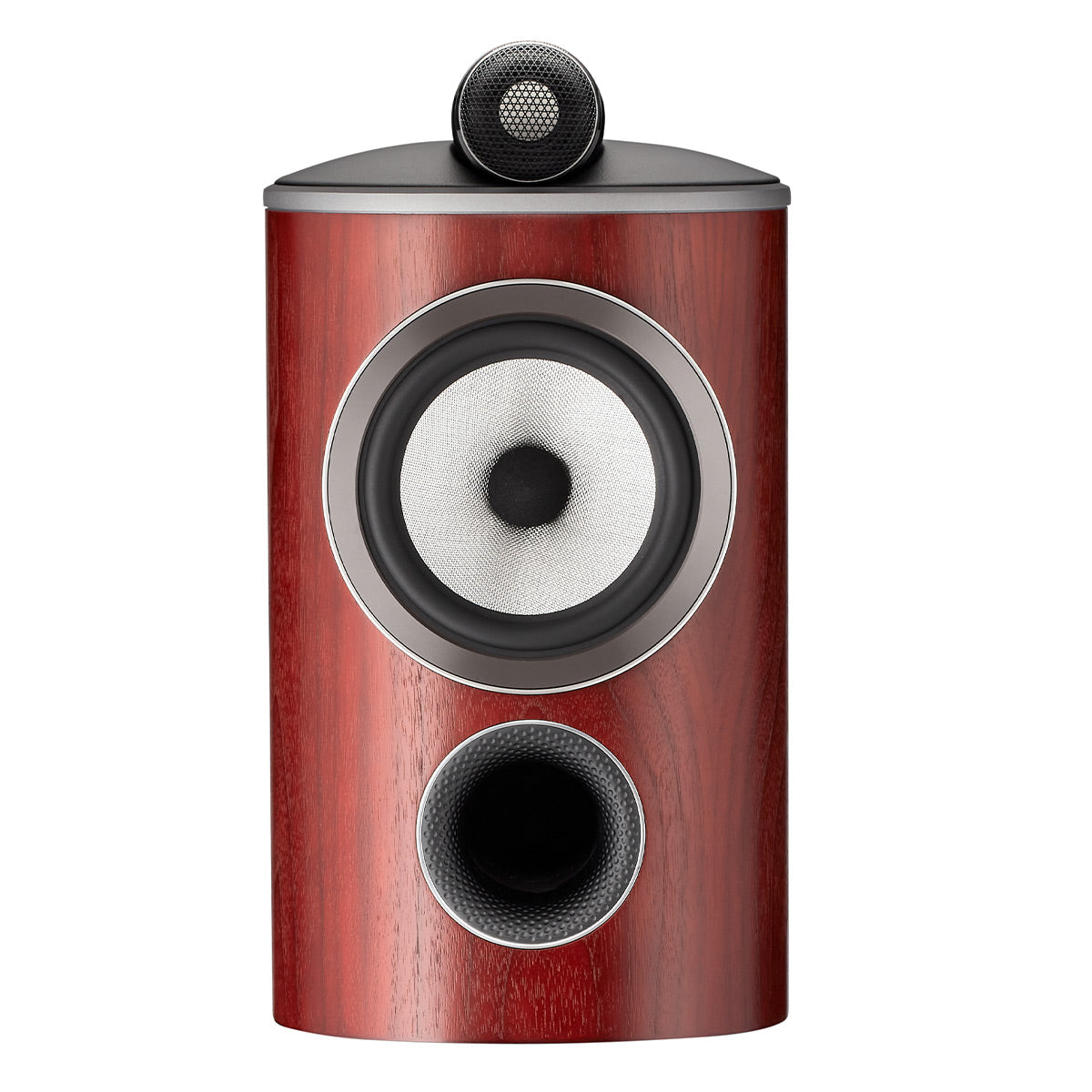

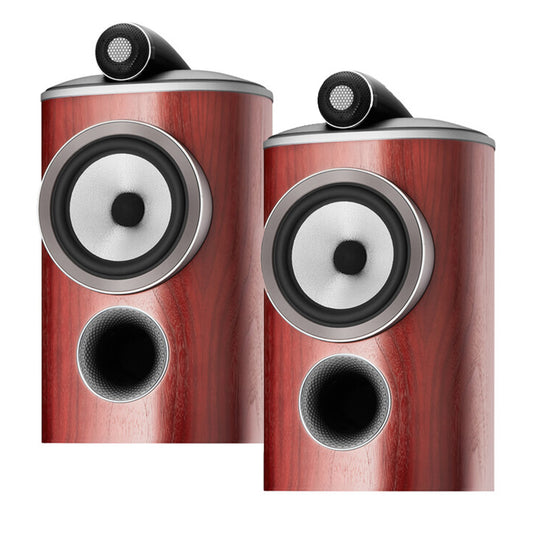

Bowers & Wilkins 805 D4 2-Way Bookshelf Speaker - Each (Satin Rosenut)












Bowers & Wilkins 805 D4 Overview
Product Information
Specifications
What's In The Box
Product Information
Excellence. Evolved.
This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it's still packed with advanced technologies, including that all-important Diamond dome tweeter and Solid-Body Tweeter-on-Top. It's proof positive that small can still be beautiful.
Features
- Diamond tweeter
- Solid-body Tweeter-on-Top
- Continuum cone bass/mid-Matrix™
- Anti-Resonance plug
- Flowport™

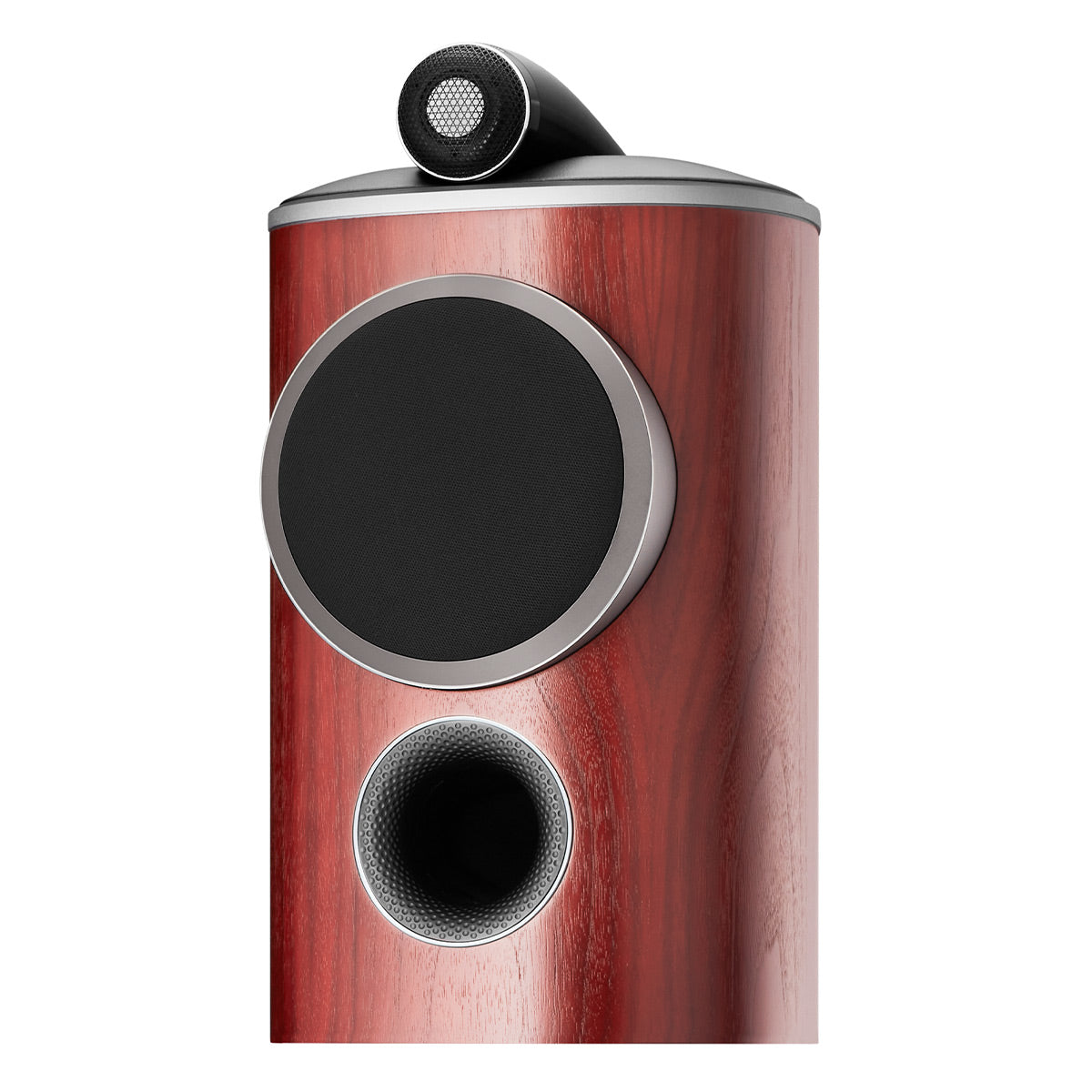

Solid-Body Tweeter
The iconic Solid-Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, creating an even more free and open sound with high frequencies. As before, the carefully decouples housing is milled from a single solid block of aluminum to better resist resonance.

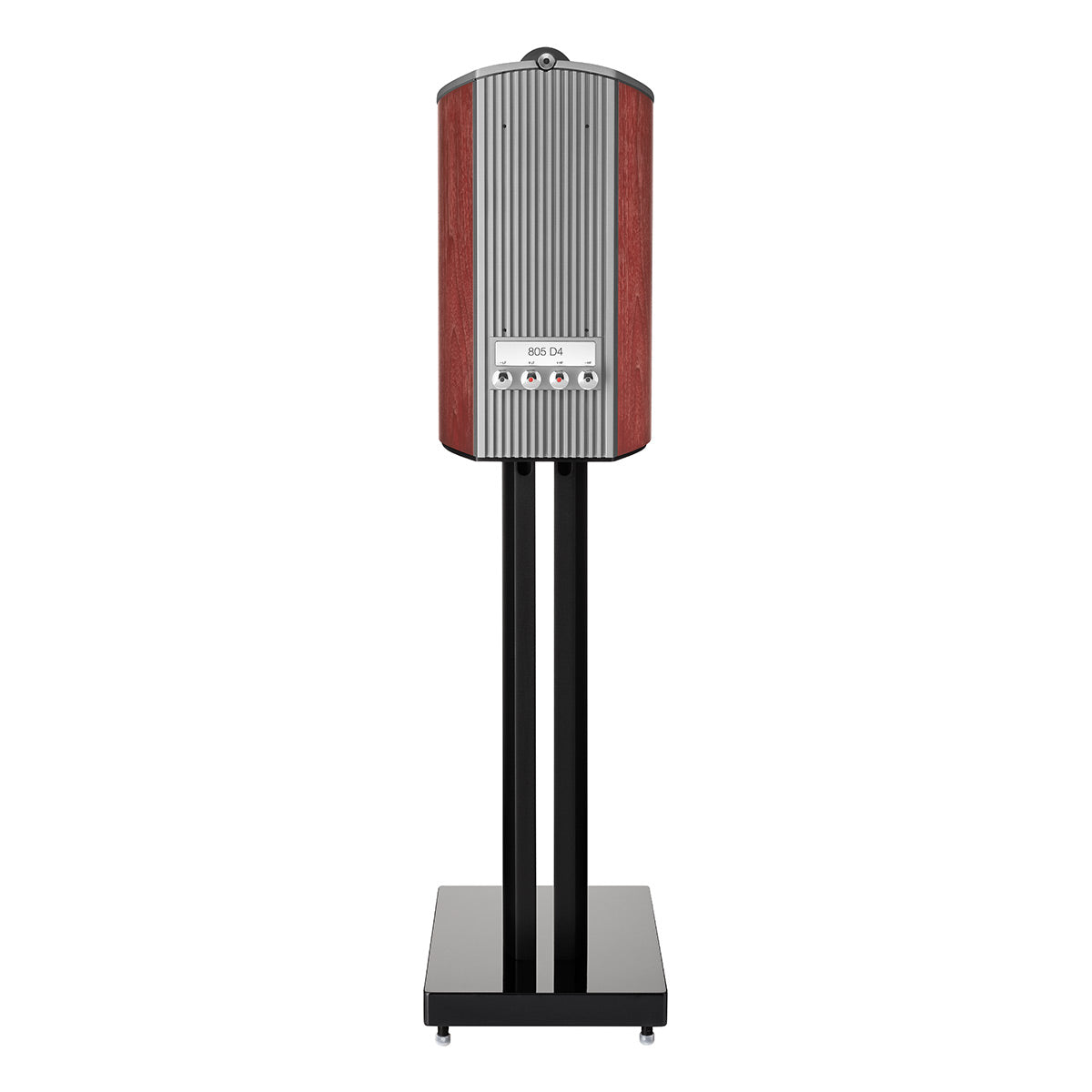

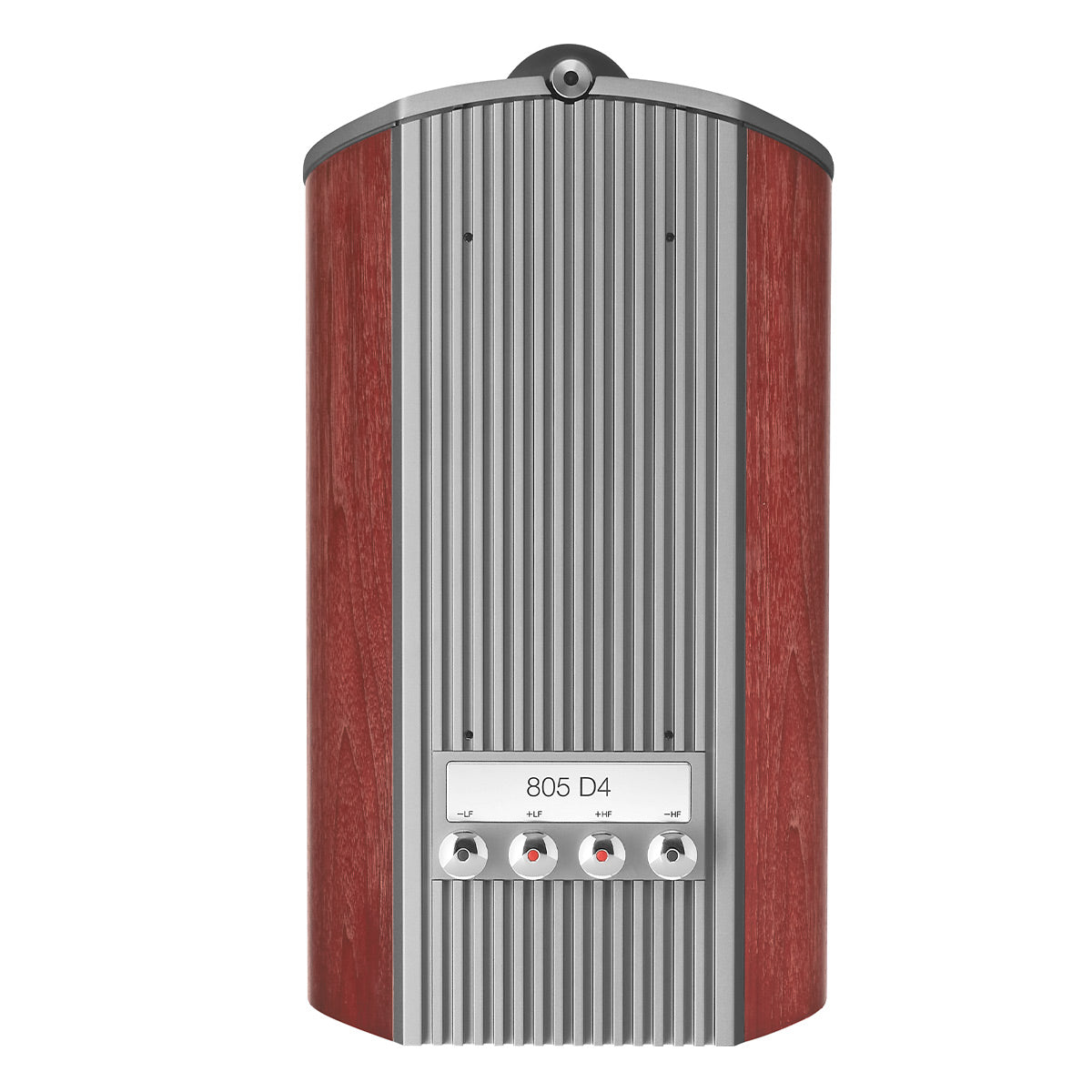

Rear-Mounted Crossover
All stereo models in the new range now use rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the effects of air pressure within the enclosure.
Specifications
- Description: 2-way vented-box system
- Drive Units
- 1x 25mm (1 in) diamond dome high frequency
- 1x 165mm (6.5 in) Continuum cone bass midrange
- Frequency Range: 34Hz to 35kHz
- Frequency Response (+/- 3dB from reference axis): 42Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 88dB
- Harmonic Distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 90Hz - 20kHz
- <0.3% 120Hz - 20kHz
- Nominal Impedance: 8Ω (minimum 4.6Ω)
- Recommended Amplifier Power: 50W - 120W into 8Ω on unclipped program
- Max. Recommended Cable Impedance: 0.1Ω
- Dimensions (W x H x D): 9.45" x 17.32" x 14.68"
- Weight: 34.28 lbs
What's In The Box
- 805 D4 2-Way Bookshelf Speaker - Each
- Manual
*Please Note: Speaker Stand Sold Separately
