Bowers & Wilkins CCM7.5S2 In Ceiling Speaker - Each

Regular price $1,000.00
Sale price $1,000.00 Regular price
Save $-1,000.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Bowers & Wilkins CCM7.5S2 Overview

Product Information

Model: FP41114 | UPC: 714346332205

Specifications

What's In The Box

Product Information

Model: FP41114 | UPC: 714346332205

See nothing, hear everything

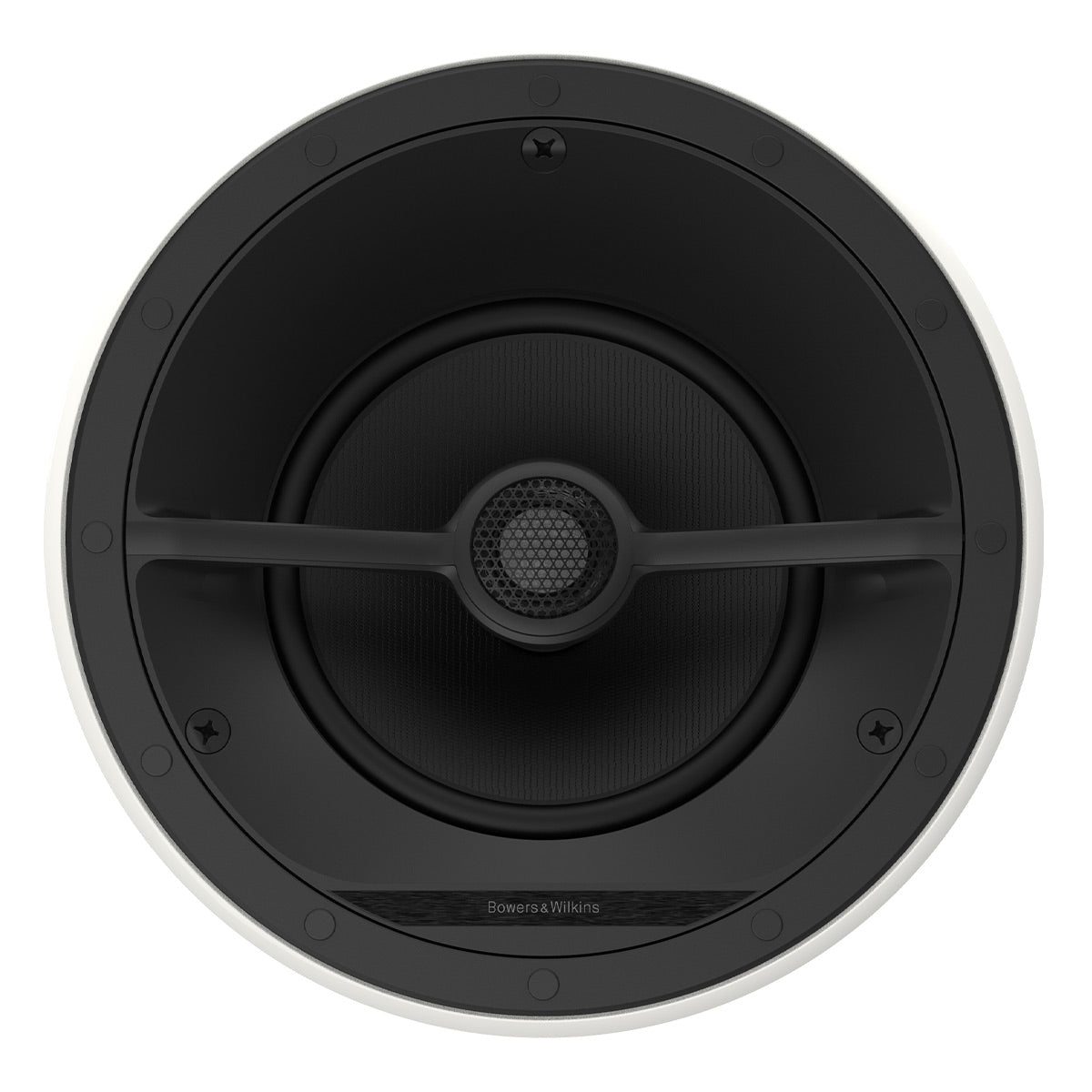

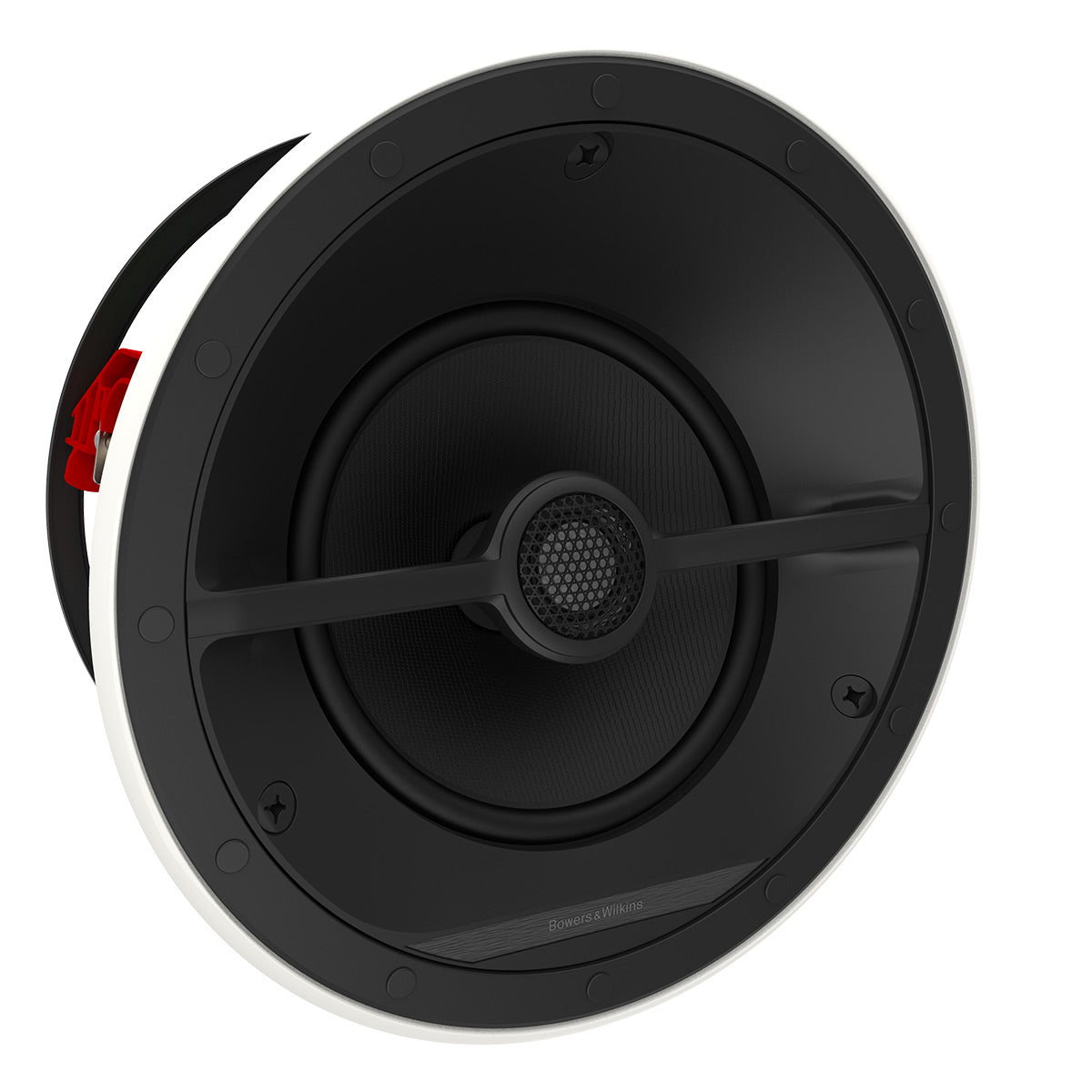

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, center, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1") Carbon Dome tweeter and a 180mm (7") Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

Specifications

  • Technical features
    • Carbon Dome tweeter
    • Continuum mid/bass
  • Description: 2-way in-ceiling system
  • Drive units
    • 1x ø25mm (1in) Carbon Dome high-frequency
    • 1x ø180mm (7in) Continuum cone mid/bass
  • Frequency range: (-6dB) -6dB at 25Hz - 33kHz
  • Frequency Response: -3dB 32Hz - 28kHz ±3dB
  • Sensitivity: 90dB spl (2.83Vrms, 1m)
  • Harmonic distortion
    • 2nd and 3rd harmonics (90dB, 1m)
    • <1% 70Hz - 33kHz
    • <0.5% 100Hz - 28kHz
  • Nominal impedance: 8Ω (minimum 4.8Ω)
  • Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
  • Frame diameter: 290mm (11.4")
  • Depth (behind surface): 128mm (5")
  • Cut-out diameter: 254mm (10")
  • Protrusion: 8.5mm (0.33")
  • PMK: PMK C8
  • Back box: BB 6C
  • Square grille option: GR68SQ
  • Net weight: 3.1kg (6.83 lb)

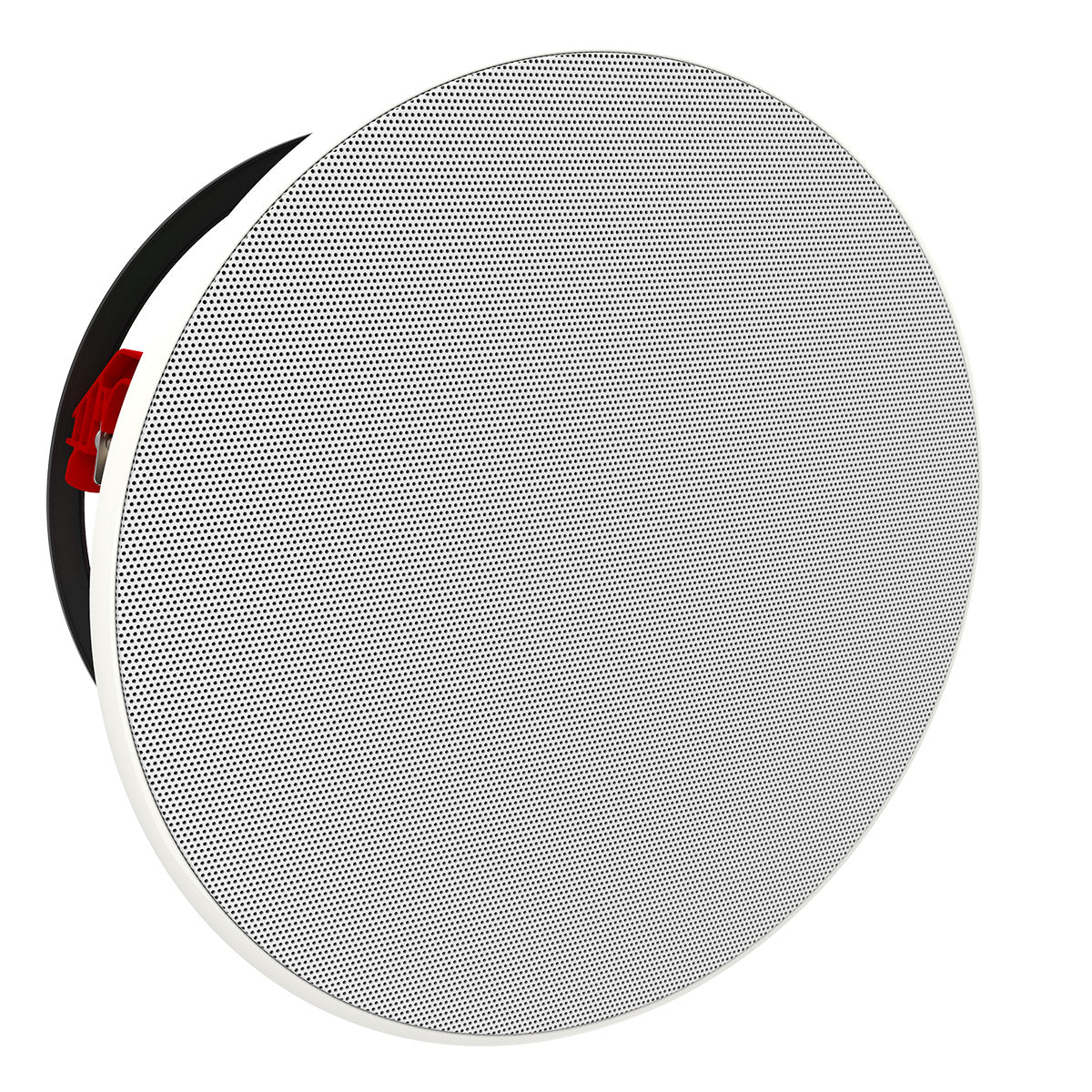

  • Finishes Grille: White

What's In The Box

  • CCM7.5S2 In Ceiling Speaker - Each
