Marantz LINK 10n Streaming Preamplifier (Champagne)

Regular price $12,000.00
Sale price $12,000.00 Regular price
Save $-12,000.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Marantz LINK10n Overview

Product Information

Model: LINK10N/U1C | UPC: 747192143077

Specifications

What's In The Box

Product Information

Model: LINK10N/U1C | UPC: 747192143077

LINK 10n is a highly versatile and fully featured high-end network audio player. It is the ideal choice for those looking for a flexible, high-performance component for their reference audio system. LINK 10n can be used as a streamer to deliver high-resolution digital playback and includes state-of-the-art digital to analog conversion. It can also serve as a complete preamplifier, with options to connect phono, analog and digital sources, or even your TV.

Features

  • HEOS® Built-in
  • HD TFT Color Display
  • Isolated Sub-Enclosures Reduce Distortion
  • Supports Optical, Coaxial, USB-A, USB-B DAC, & HDMI-ARC Inputs

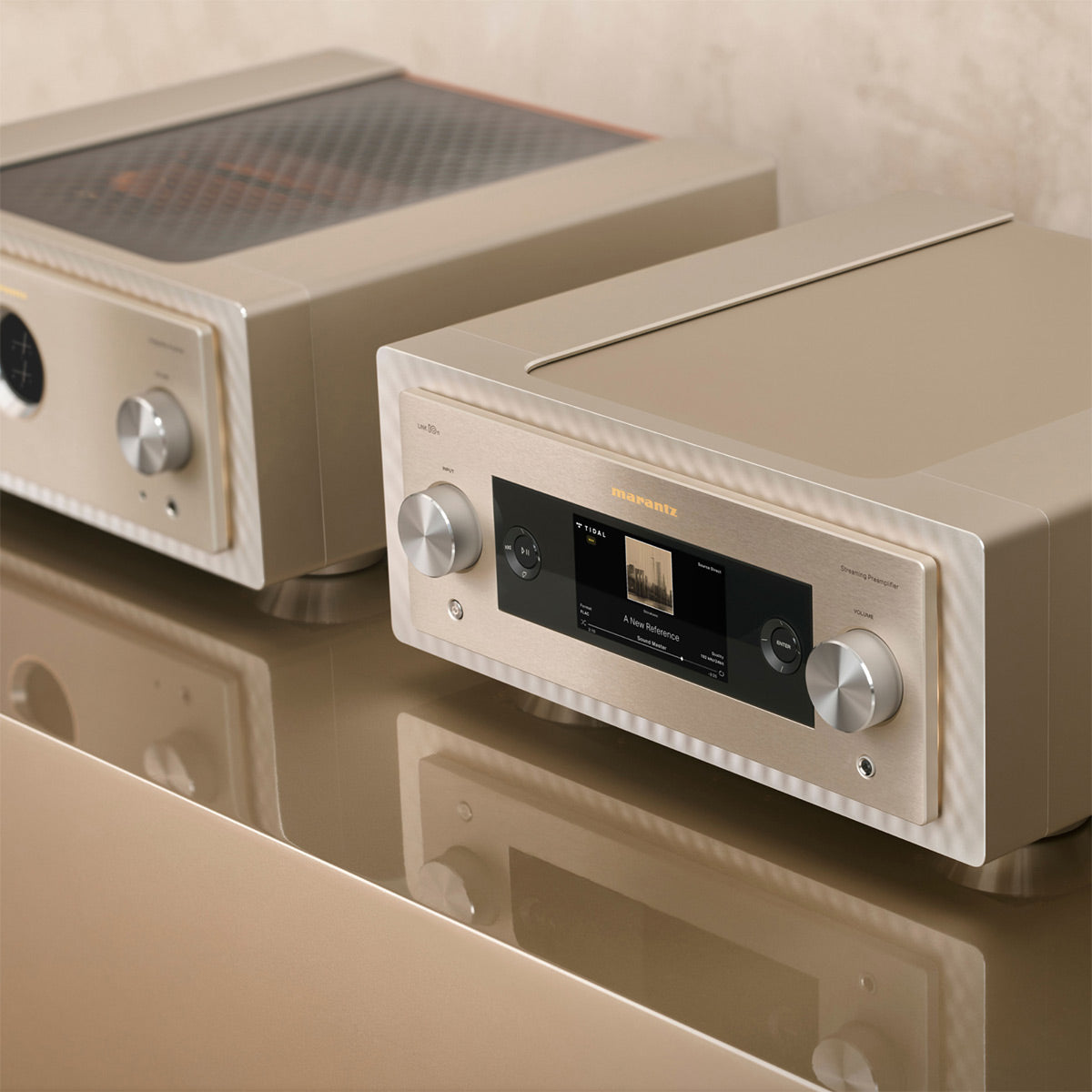

  • Pairs Perfectly with Model 10 Amplifier & SACD 10 Disc Player

The Best of the Best

From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. This remarkable product sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

Crafted in Shirakawa

The finest equipment Marantz has to offer is engineered and produced at our own facility in Japan. Shirakawa Audio Works is home to our most highly skilled and longest tenured engineers and artisans. LINK 10n is designed with such precision that it requires incredible care in manufacturing that only Shirakawa Audio Works can provide. Close collaboration between design and build teams under the same roof is a critical requirement to ensure the highest-level results.

Sound Master Tuned

As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. But that’s not a sufficient goal. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

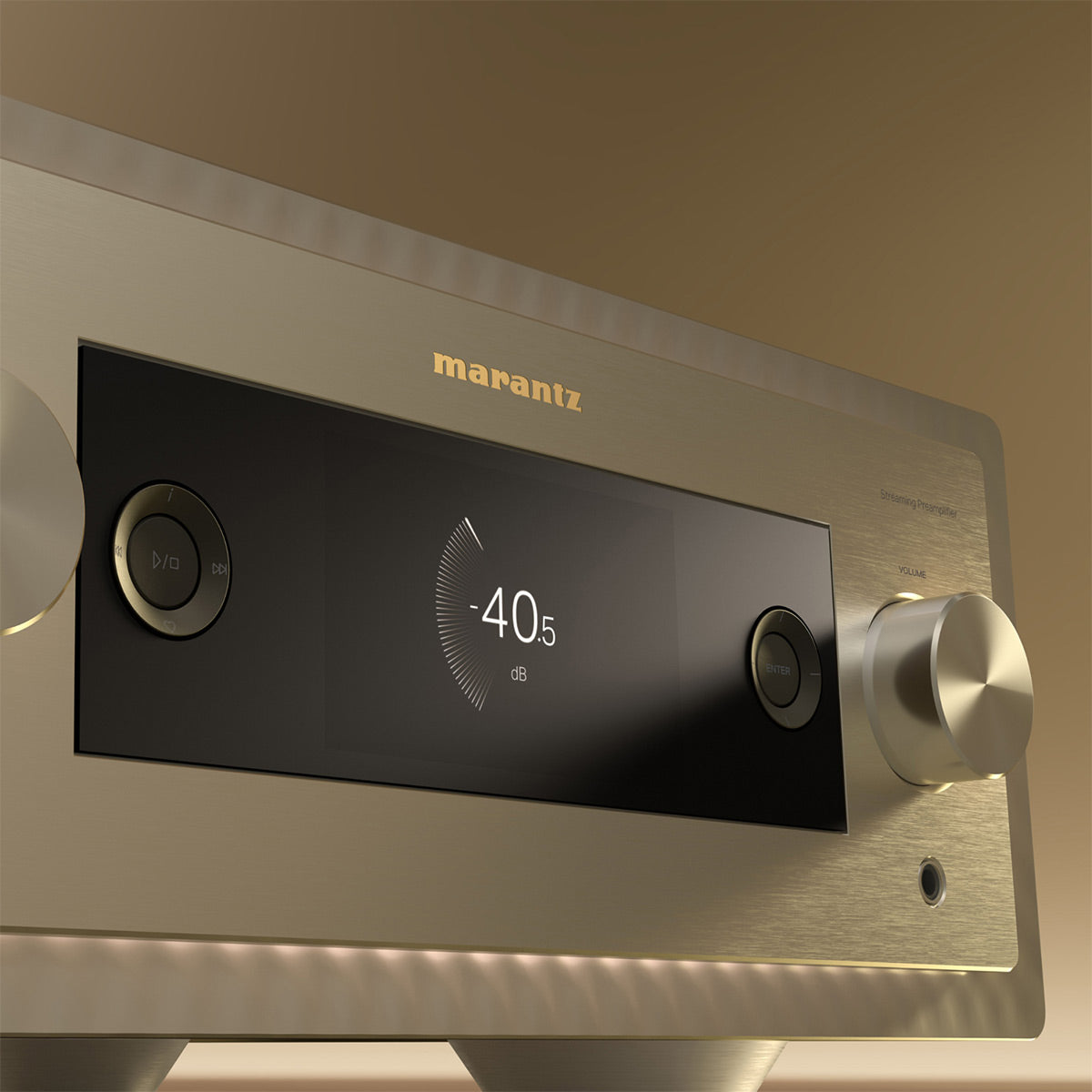

Luxurious OLED Display

LINK 10n comes with a large high-resolution full-color HD large TFT Color Display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.

Marantz Industrial Design

Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.

HEOS® Built-in

Enjoy limitless connectivity with HEOS® Built-in. Stream in high resolution from today’s leading music platforms and enjoy high-resolution digital audio files up to 24-bit 192kHz sampling. Numerous streaming services and technologies are supported including TIDAL Max, AirPlay 2, and more.

Preamplifier Function

LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, LINK 10n is a fully featured front end for even the highest performance stereo systems.

Digital Inputs

Whether it acts as your network audio player to add high-resolution digital playback, or seamlessly facilitates digital to analog conversion, you’ll enjoy upgraded performance for legacy audio components such as CD players, or even your TV. LINK 10n supports a variety of digital inputs including optical, coaxial, USB-A, USB-B DAC, and HDMI-ARC.

Specifications

  • General
    • Unit (W × H × D): 17.32” × 7.55” × 16.61" (with antenna)
    • Net weight: 73.41 lbs.
    • Voice Assistants: Apple Siri, Google Assistant
  • Audio
    • Frequency Response: PCM 2Hz–50kHz (-3dB)
    • Harmonic distortion: PCM 0.0004%
    • S/N: PCM 0.0004%
    • Dynamic range: PCM 0.0004%
    • Line Output Level
      • UNBALANCED: 2.0Vrms
      • BALANCED: 4.0Vrms
    • Headphone Output Level: 130mW / 32 ohms
    • Frequency Response (analog input): 5 Hz–100 kHz (+0dB/-3 dB)
    • Harmonic distortion (analog input): 0.001% (20Hz–20kHz)
    • S/N
      • PHONO (MC): 76dB
      • PHONO (MM): 88dB
      • BALANCED: 122dB
      • LINE: 122dB
    • Phono Input sensitivity
      • MM: 8mV
      • MC: 80mV
    • Phono Input impedance
      • MC Low: 32 ohms
      • MC Mid: 100 ohms
      • MC High: 390 ohms
      • MM: 39 kohms
  • Power
    • Consumption: 75W
    • Standby: Less than 0.3W
    • Network Control On (Bluetooth, Ethernet, Wi-Fi, USB): Less than 2W
  • Audio Feature
    • Output Circuit: New HDAM
    • Power Transformer: Toroidal
    • Pre Amplifier Circuit: New HDAM High Grade, Full balance
    • Volume: Electric (MUSES 72323) Variable gain
    • Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
    • Type of Tone Control: Electric
    • Headphone Circuit: Discrete
    • H/P Amp Gain Setting: Yes (Low / Mid / High)
    • H/P On.Off Setting: H/P Off automatically, when in use
    • DAC Circuit: New MMM-Conversion
    • Dither: MMM-Stream (Dither 1, 2, Off)
    • Noise Shaper: MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
    • Digital Filter: MMM-Stream (Filter 1, 2 Selectable)
    • Jitter Reducer: Yes
    • DAC Master Clock Design (No Support for Network Playback): Yes
    • Asynchronous mode (for USB-B input): Yes
    • Isolator (for USB-B input): Yes (Complete Isolation System Duo)
    • Fixed Analog Output (RCA): Cinch × 1 (Thick nickel-plated independent terminals)
    • Pre / Variable Audio Output (RCA): Cinch × 1 (Thick nickel-plated independent terminals)
    • Fixed Balanced XLR Output: Yes (1 Pair)
    • Pre/ Variable Balanced XLR Output: Yes (1 Pair)
    • RCA Input: Cinch × 1 (Thick nickel plated independent terminals
    • Balanced XLR Input: Yes (1 Pair)
    • Phono input
      • Yes (MM / MC)
      • Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
    • Optical input / output (Maximum Support) 2 / 1 (on/off switchable): 44.1 kHz - 192 kHz
    • Coaxial input / output (Maximum Support) 1 / 1 (on/off switchable): 44.1 kHz - 192 kHz
    • HDMI input / output: No / Yes (ARC)
    • Headphone Output: Yes (F6.3 ×1)
    • Subwoofer: Yes with LP filter adjustable

What's In The Box

  • LINK 10n Streaming Preamplifier
  • Remote
  • Power Cord
  • Manual
