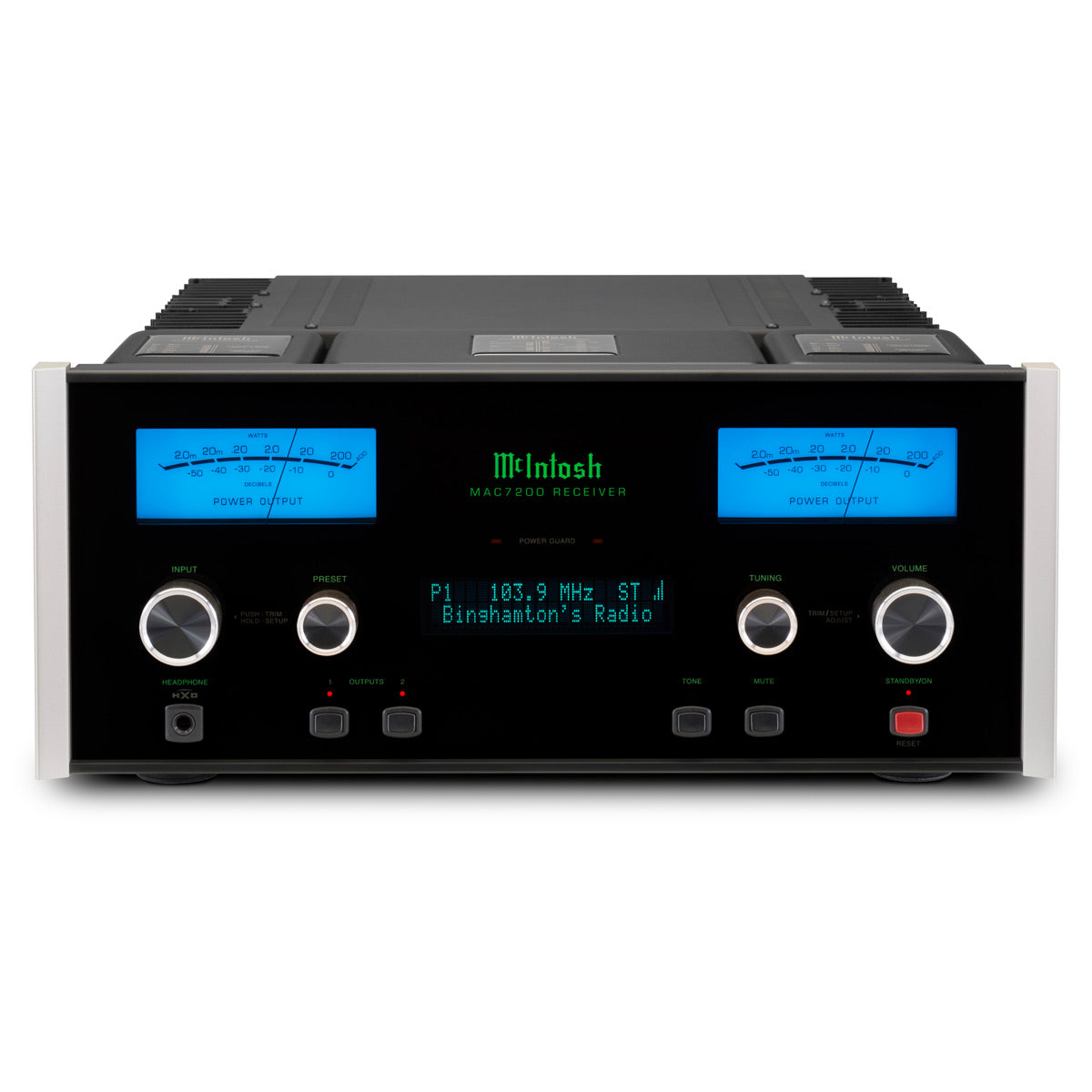

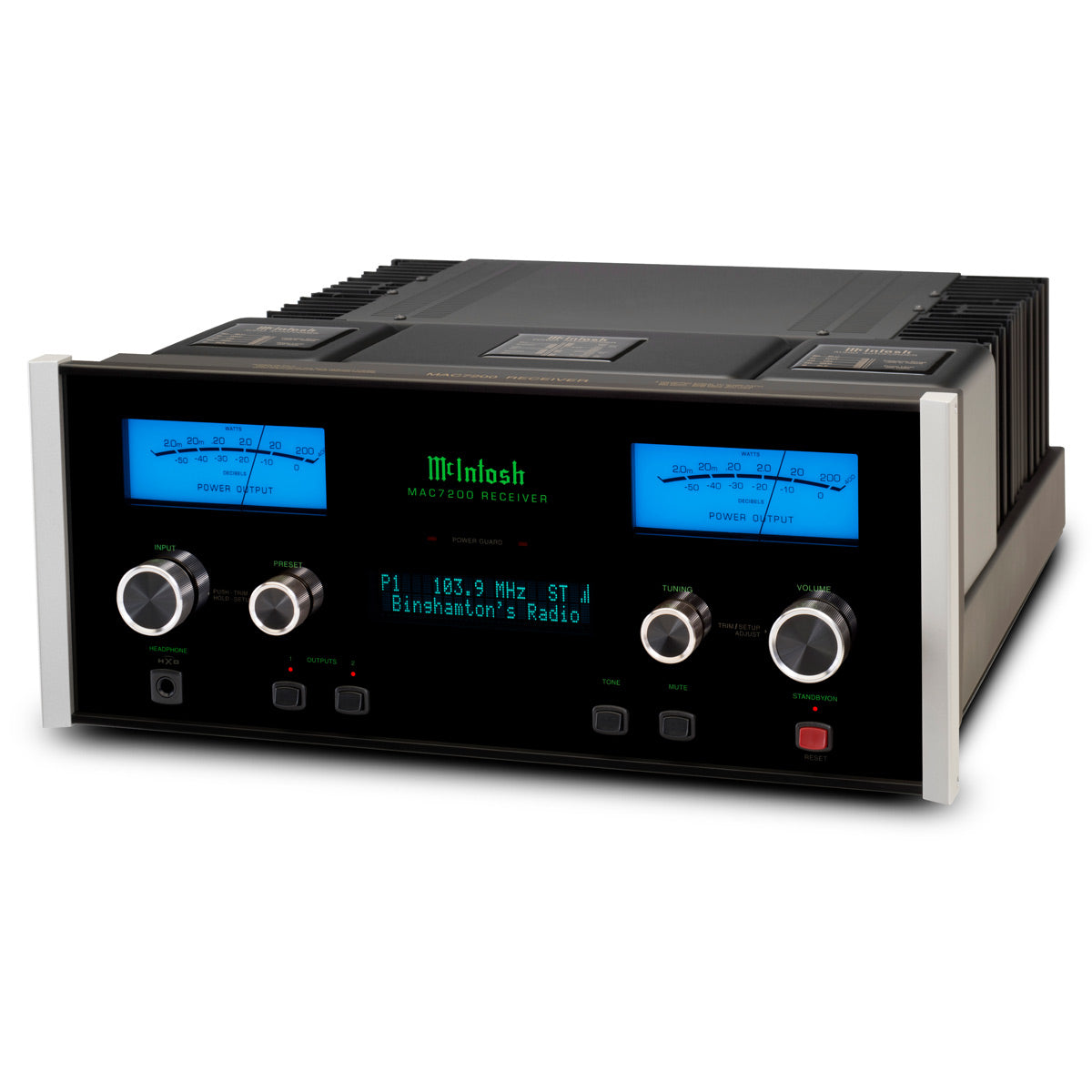

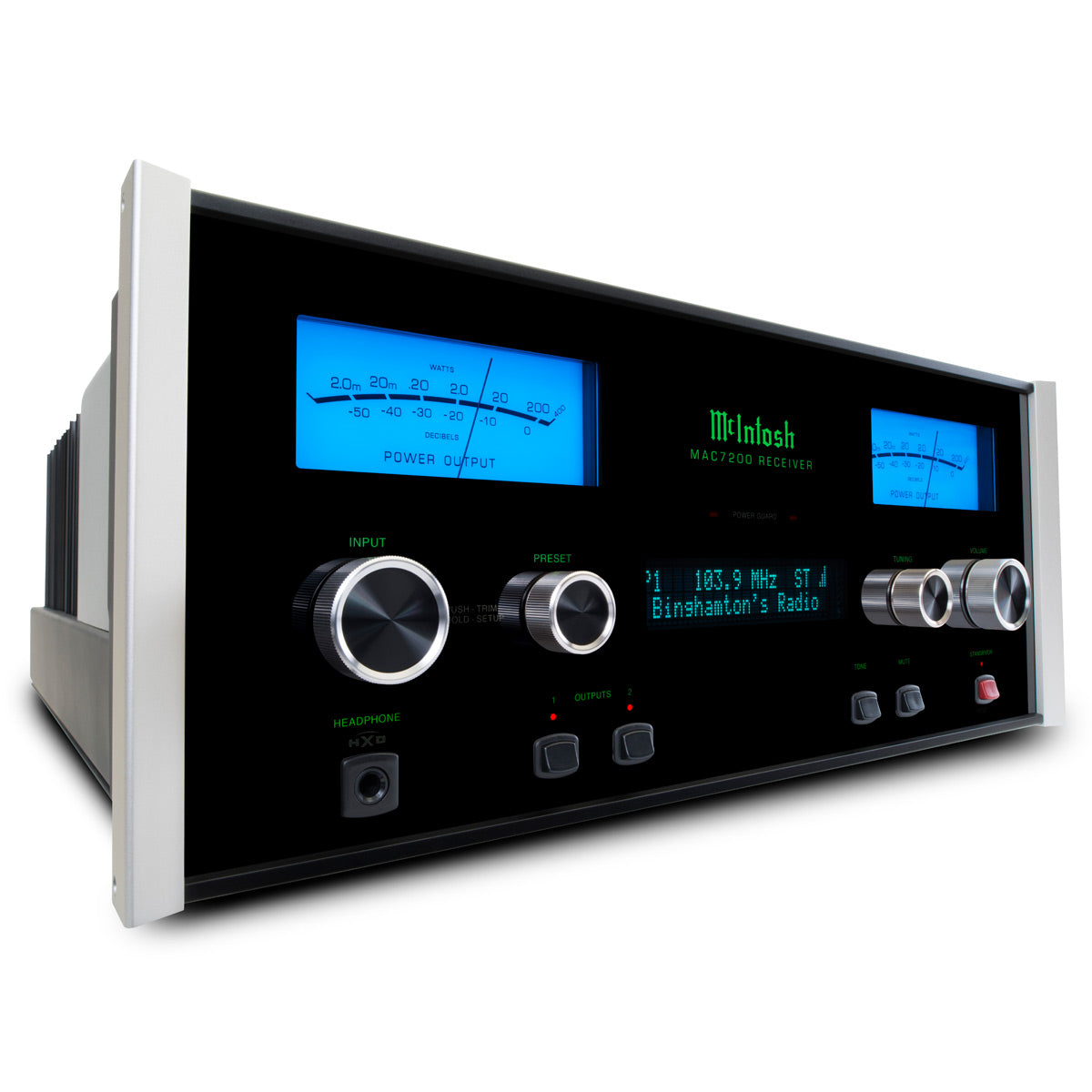

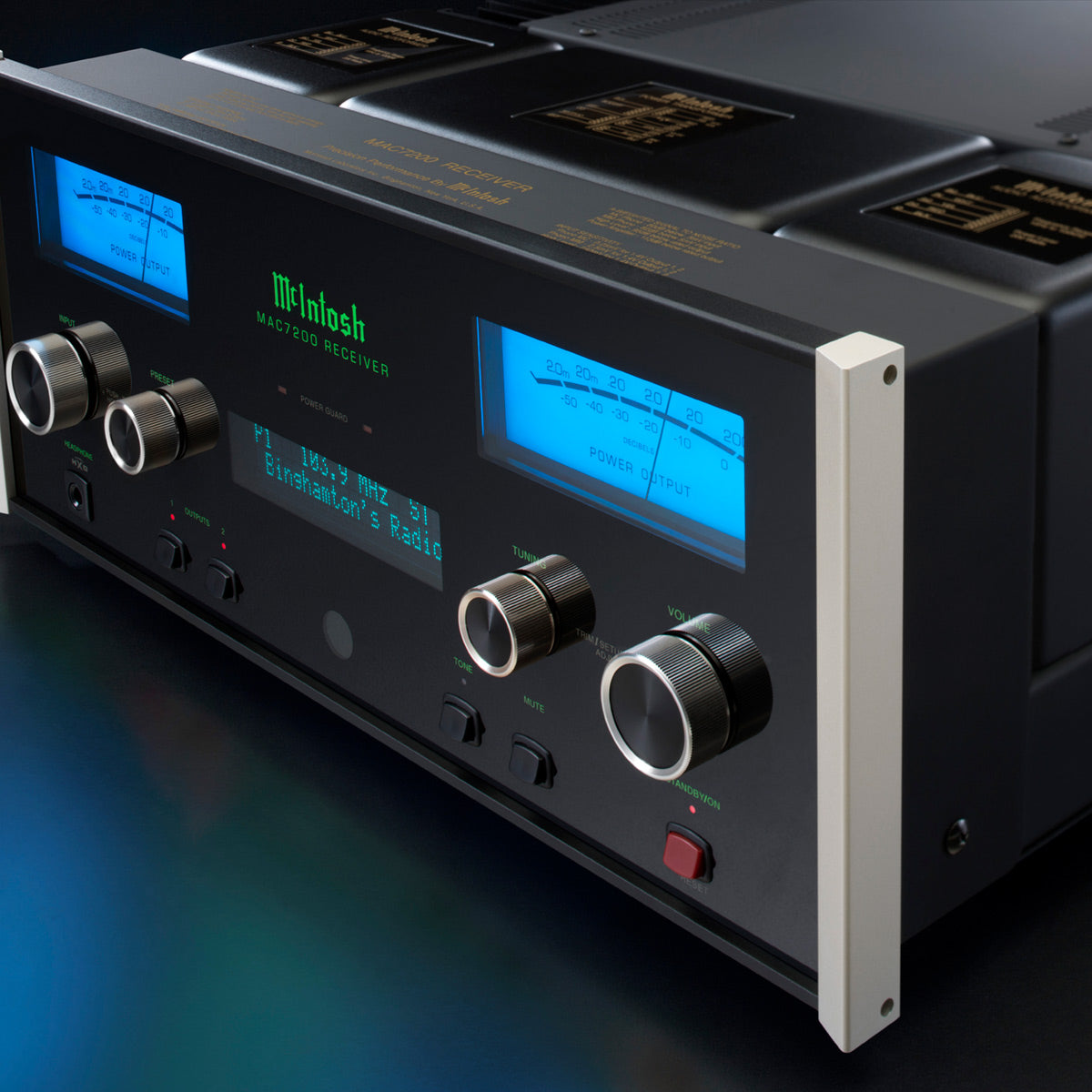

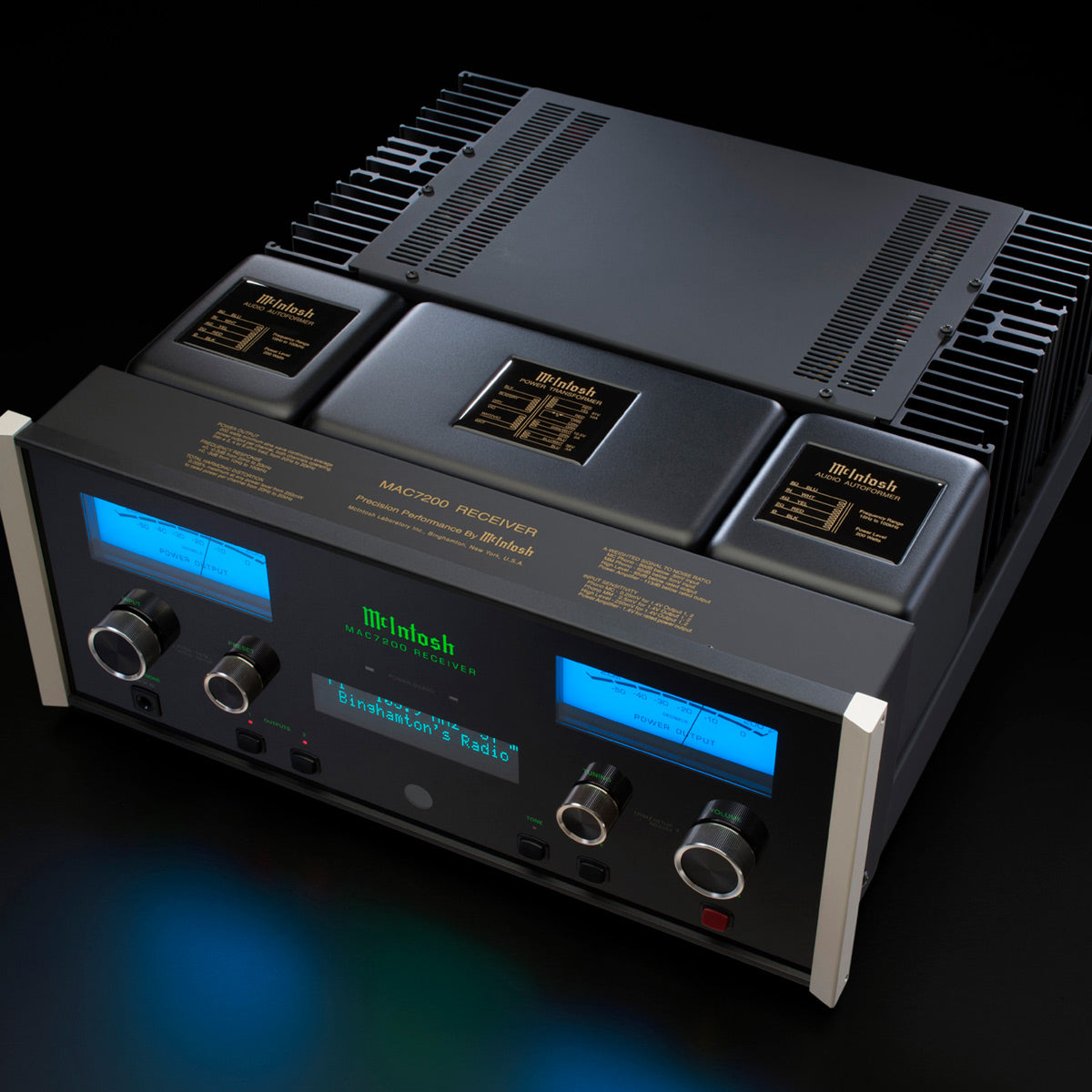

McIntosh MAC7200 2-Channel Stereo Receiver
Overview
Product Information
Specifications
What's In The Box
Product Documents
Product Information
Introducing the McIntosh MAC7200: a premium 2-channel receiver delivering 200 Watts per channel, equipped with a high-performance AM/FM tuner and versatile connectivity options. Designed for audiophiles seeking exceptional sound quality and comprehensive features, the MAC7200 seamlessly integrates with both analog and digital audio sources.
Features
- 200-Watt per Channel Amplification
- Built-in High-Performance AM/FM Tuner
- Versatile Connectivity Options
- Advanced DA1 Digital Audio Module
- Future-Ready Modular Design
- Iconic McIntosh Design and Build Quality
Powerful Amplification
The MAC7200 provides 200 Watts per channel, ensuring ample power to drive a wide range of speakers with precision and clarity. This robust output guarantees an immersive listening experience, faithfully reproducing your favorite music.
High-Performance AM/FM Tuner
Drawing from McIntosh's rich heritage in tuner design, the MAC7200's built-in AM/FM tuner offers exceptional reception and audio quality. Features like Radio Data System (RDS) support display station information, while 20 presets per radio band and a remote AM antenna enhance user convenience.
Versatile Connectivity

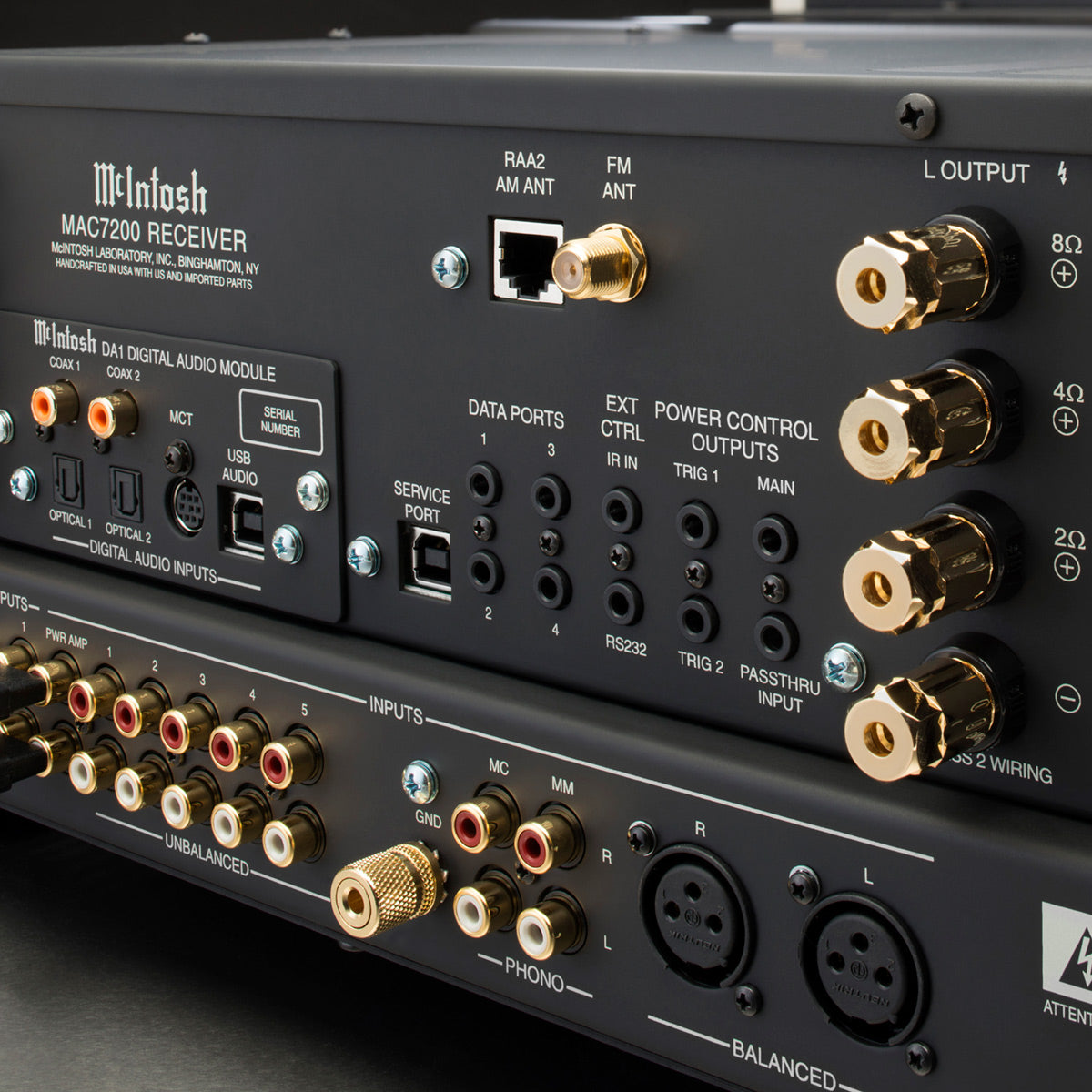

With a total of 14 inputs, the MAC7200 accommodates a variety of audio sources. Analog inputs include one balanced and five unbalanced connections, along with dedicated Moving Coil and Moving Magnet inputs for turntables. Digital inputs are managed by the DA1 Digital Audio Module, featuring two coaxial, two optical, one USB, and a proprietary MCT input for seamless integration with devices like the MCT500 SACD/CD Transport.
Advanced Digital Audio Module
The DA1 module houses an 8-channel, 32-bit Digital-to-Analog Converter (DAC) operating in Quad Balanced mode. It supports high-resolution audio playback, with the USB input handling PCM signals up to 32-bit/384kHz, DSD256, and DXD 384kHz, while coaxial and optical inputs support up to 24-bit/192kHz files. The modular design allows for future upgrades to keep pace with evolving digital audio technologies.User-Friendly Features

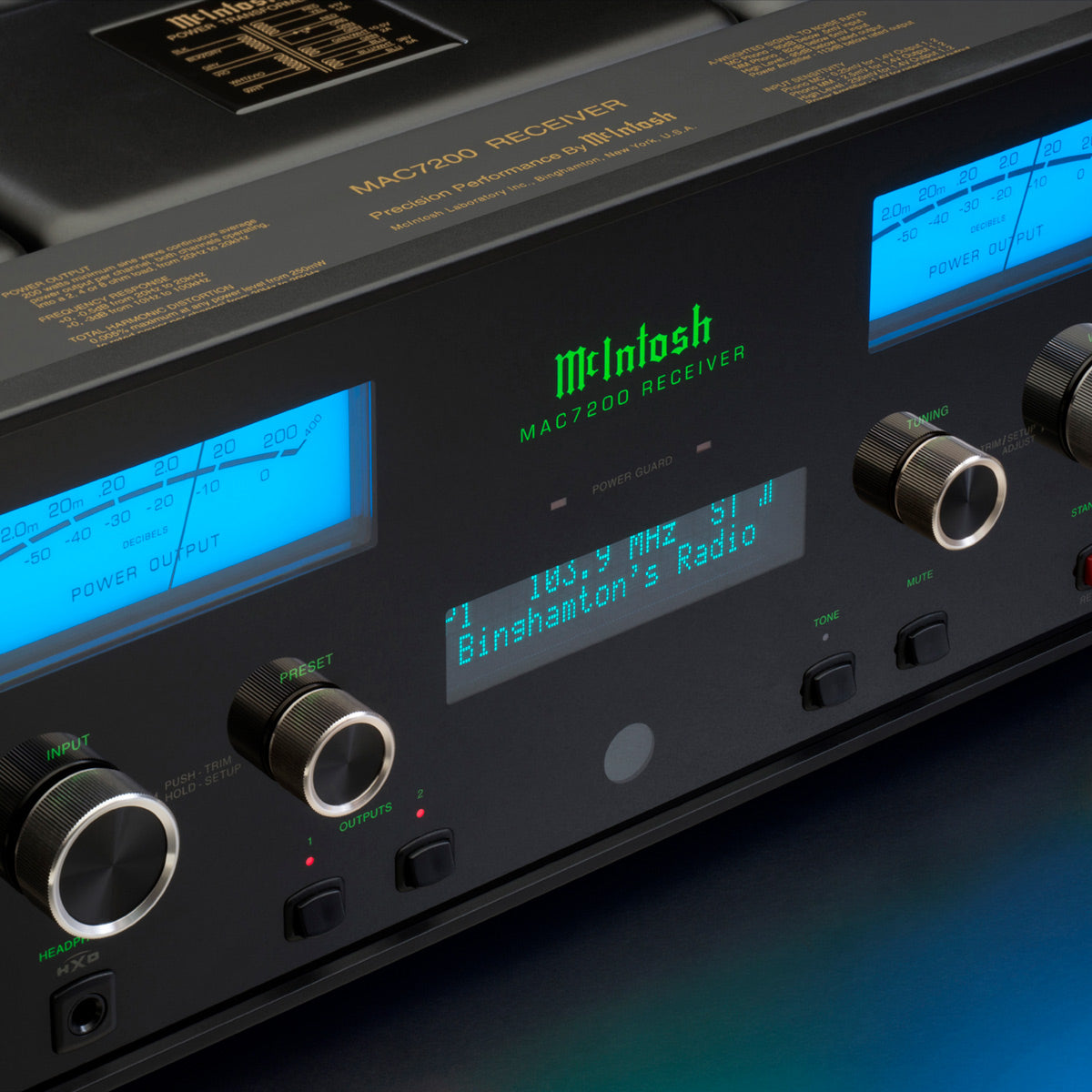

Customizable input naming simplifies system control, and dedicated PRESET and TUNING knobs facilitate easy radio operation. An advanced signal quality monitor assists in optimizing antenna placement for the best reception, ensuring a seamless and enjoyable user experience.
Specifications
- Power output per channel: 200 watts
- Number of channels: 2
- Speaker impedance: 2, 4, or 8 ohms
- Rated power band: 20Hz to 20kHz
- Total harmonic distortion: 0.005%
- Dynamic headroom: 2dB
- Frequency response (+0, -0.5dB): 20Hz to 20kHz
- Frequency response (+0, -3dB): 10Hz to 100kHz
- Sensitivity phono (moving coil): 0.25mV
- Sensitivity phono (moving magnet): 2.5mV
- Sensitivity high level (balanced/unbalanced): 0.5V/0.25V
- Sensitivity (power amp): 1.4V
- Signal-to-noise ratio (moving coil): 80dB
- Signal-to-noise ratio (moving magnet): 82dB
- Signal-to-noise ratio (high level): 95dB
- Signal-to-noise ratio (power amp): 113dB
- Input impedance (balanced/unbalanced): 20K/20K
- Damping factor: >40
- Maximum output (balanced/unbalanced): 8V unbalanced
- Balance input: 1
- Unbalanced input: 5
- Phono input moving coil: 1 (adjustable loading)
- Phono input moving magnet: 1 (fixed loading)
- Upgradeable digital audio module: Yes
- Digital coaxial input: 2
- Digital optical input: 2
- Digital MCT (DIN) input: 1
- Digital USB input: 1
- Balanced variable output: 0
- Unbalanced fixed output: 0
- Unbalanced variable output: 2
- Headphone output: 1/4" high drive with headphone crossfeed director (HXD)
- AM/FM tuner option: Included
- Home theater passthrough: Yes
- Unbalanced analog connector type: Standard
- Speaker binding post type: Standard
- Service port
- Digital-to-analog converter (DAC) type: 8-channel, 32-bit/192kHz PCM/DSD, quad balanced
- Digital coaxial input sample rate: 24-bit/44.1kHz to 192kHz
- Digital optical input sample rate: 24-bit/44.1kHz to 192kHz
- Digital MCT (DIN) input sample rate
- 16-bit/44.1kHz (CD)
- DSD64 (SACD)
- Digital USB input sample rate
- 32-bit/44,1kHz to 384kHz (PCM)
- DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
- FM tuning range: 87.9MHz - 107.9MHz
- FM channel spacing: 200kHz
- FM antenna input: 75 ohms, Type F coax connector
- FM useable sensitivity: 2.2uV (18.1dBf)
- FM 50dB quieting sensitivity: 1.5uV (14.8dBf)
- FM signal-to-noise ratio
- Mono: 70dB
- Stereo: 68dB
- FM frequency response: ±1dB 20Hz to 15,000Hz
- FM total harmonic distortion
- Mono: 0.4%
- Stereo: 0.8%
- FM channel selectivity
- 60dB adjacent channel
- 66dB alternate channel
- FM stereo separation: 38dB
- AM tuning range: 530kHz - 1720kHz
- AM channel spacing: 10kHz
- AM antenna input: Balanced, RJ45 connector
- AM selectivity: 45dB adjacent channel
- AM signal-to-noise ratio: 50dB
- AM frequency response: 0dB, -6dB 50Hz to 3,000Hz
- AM total harmonic distortion: 0.5%
- AM sensitivity: 350uV/m
- Tone controls: Bass and treble
- Tone bypass and input assign: Yes
- RS232 control input: Yes
- Power control output: 1 main, 2 trigger
- Rear panel data ports: 4
- Rear panel IR sensor input: Yes
- Input level match: Yes
- Vacuum tube or solid state: Solid state

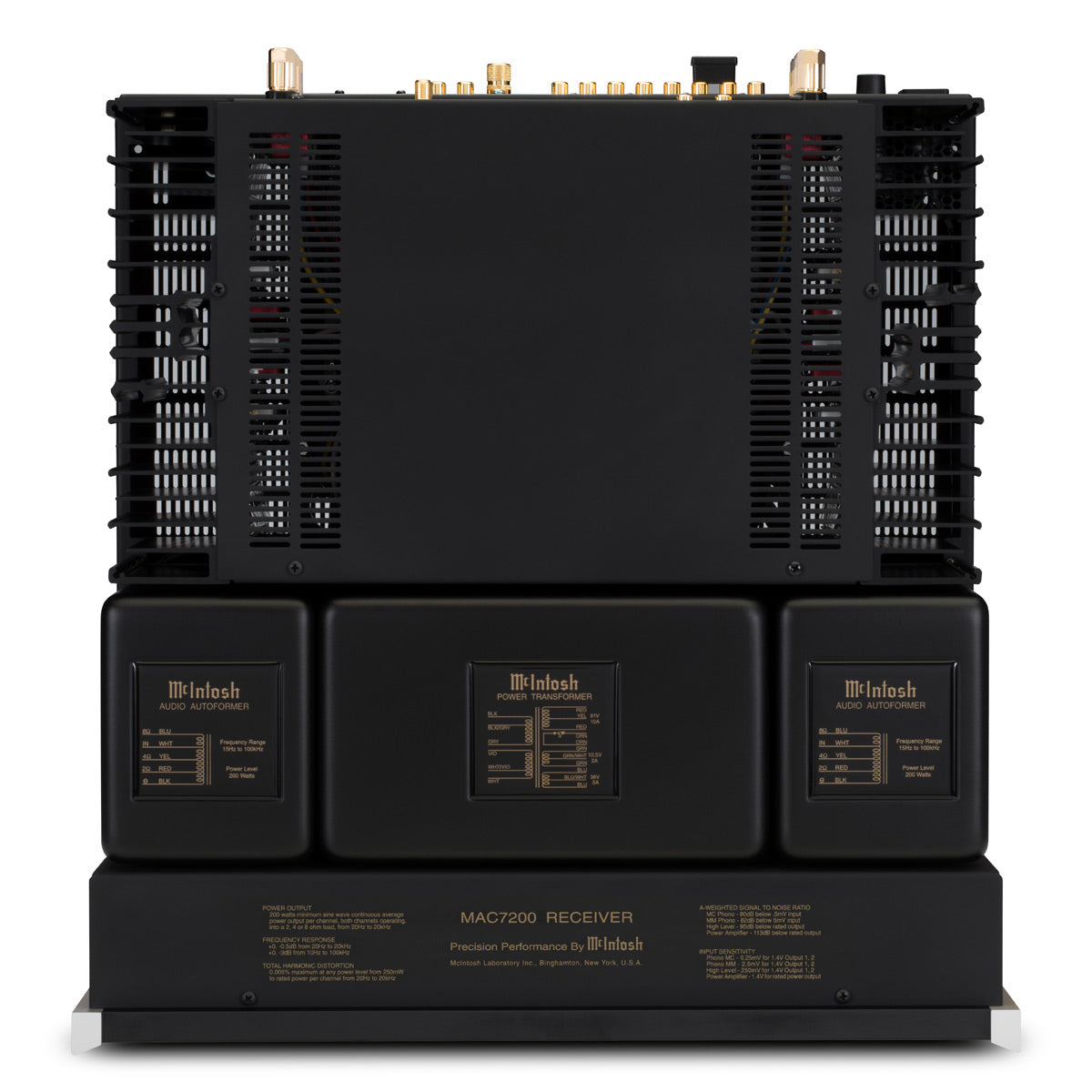

- Output autoformer: Yes
- Output meters: Yes
- Dual layer chassis: Yes
- Chassis finish: Black painted steel

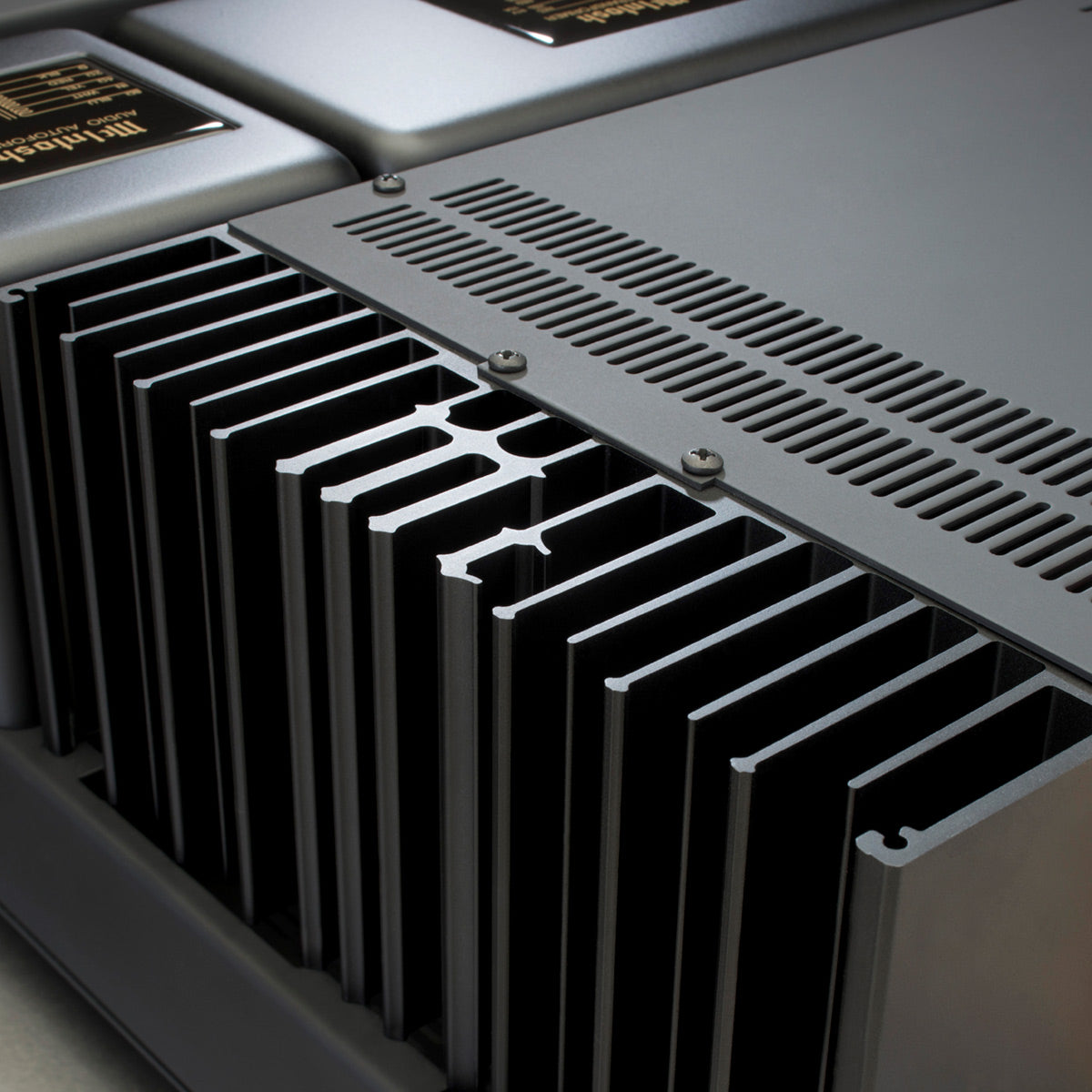

- McIntosh monogrammed heat sinks: Yes
- Power requirement: 120V 50/60Hz, 4.4 amps
- Standby power requirement: <0.25W
- Dimensions (W x H x D): 17 1/2" x 7 5/8" x 22"
- Weight: 75 lbs.
What's In The Box
- MAC7200 2-Channel Stereo Receiver
- Remote
- Power Cord
- Manual
