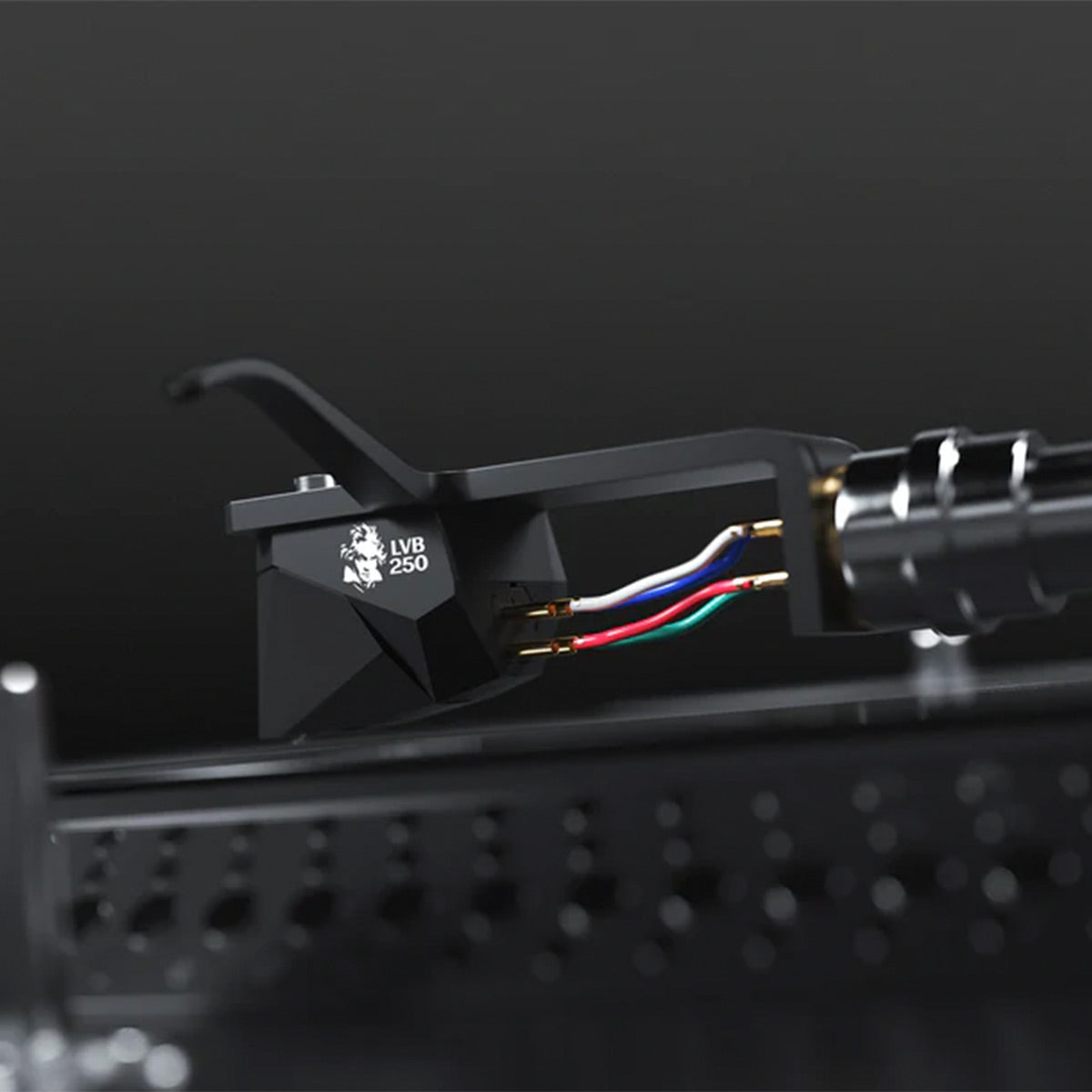

Ortofon 2M Black LVB 250 Premounted MM Phono Cartridge

Regular price $1,159.00
Sale price $1,159.00 Regular price
Save $-1,159.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon 2M Black LVB on SH-4 Black Overview

Product Information

Model: 2MBLVBSH4B | UPC: 5705796080445

Specifications

What's In The Box

Product Information

Model: 2MBLVBSH4B | UPC: 5705796080445

Beyond Amazing

The 2M Black LVB 250 upgrades the great build of the 2M Black with a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

Features

  • Nude Shibata Stylus
  • Boron Cantilever
  • Nano Tube Suspension System

Accuracy Level

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would Ortofon attempt to create something even better? Because perfection runs in their blood. The 2M Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

Stylus

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness. The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

Multi Wall Carbon Nano Tubes (MWCNT)

To attain an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes' (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 5 mV
  • Channel seperation at 1 kHz: 27 dB
  • Channel seperation at 15 kHz: 15 dB
  • Frequency response 20 Hz - 20 kHz: + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 22 µm/mN
  • Stylus type: Nude Shibata
  • Stylus tip radius: r/R 6/50 µm
  • Tracking force range: 1.5-1.7 g (15-17 mN)
  • Tracking force, recommended: 1.6 g (16 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.2 kOhm
  • Cartridge color: Black/Black
  • Cartridge weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 630 mH
  • Recommended load capacitance: 150-300 pF

What's In The Box

  • 2M Black LVB 250 Premounted MM Phono Cartridge
