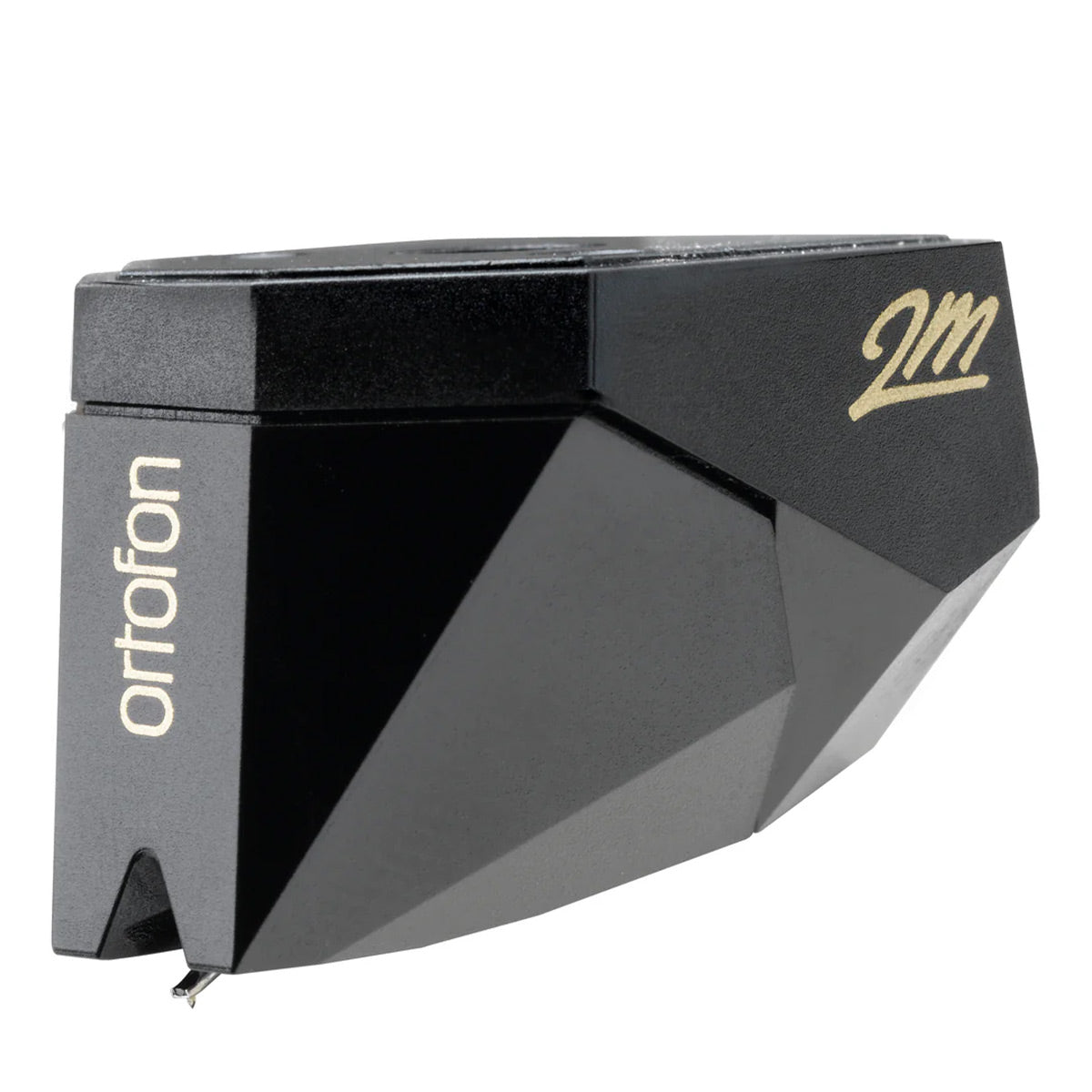

Ortofon 2M Black Premounted MM Phono Cartridge

Regular price $779.00
Sale price $779.00 Regular price
Save $-779.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon 2M Black on SH-4 Black Overview

Product Information

Model: 2MBLKSH4B | UPC: 5705796080414

Specifications

What's In The Box

Product Information

Model: 2MBLKSH4B | UPC: 5705796080414

True To the Groove

The 2M Black is the flagship of the series and it lives up to this with flying colors. You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. The 2M Black is mounted on Ortofon's classic SH-4 headshell. The sturdy, slim-designed SH-4 headshell offers strength and delicacy, complemented by an ergonomic, easy-to-lift finger grip. Simplify your setup while embracing quality.

Features

  • Shibata Diamond Stylus
  • Split Pole Pin Technology
  • Optimized Sound Reproduction

Accuracy level

With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.

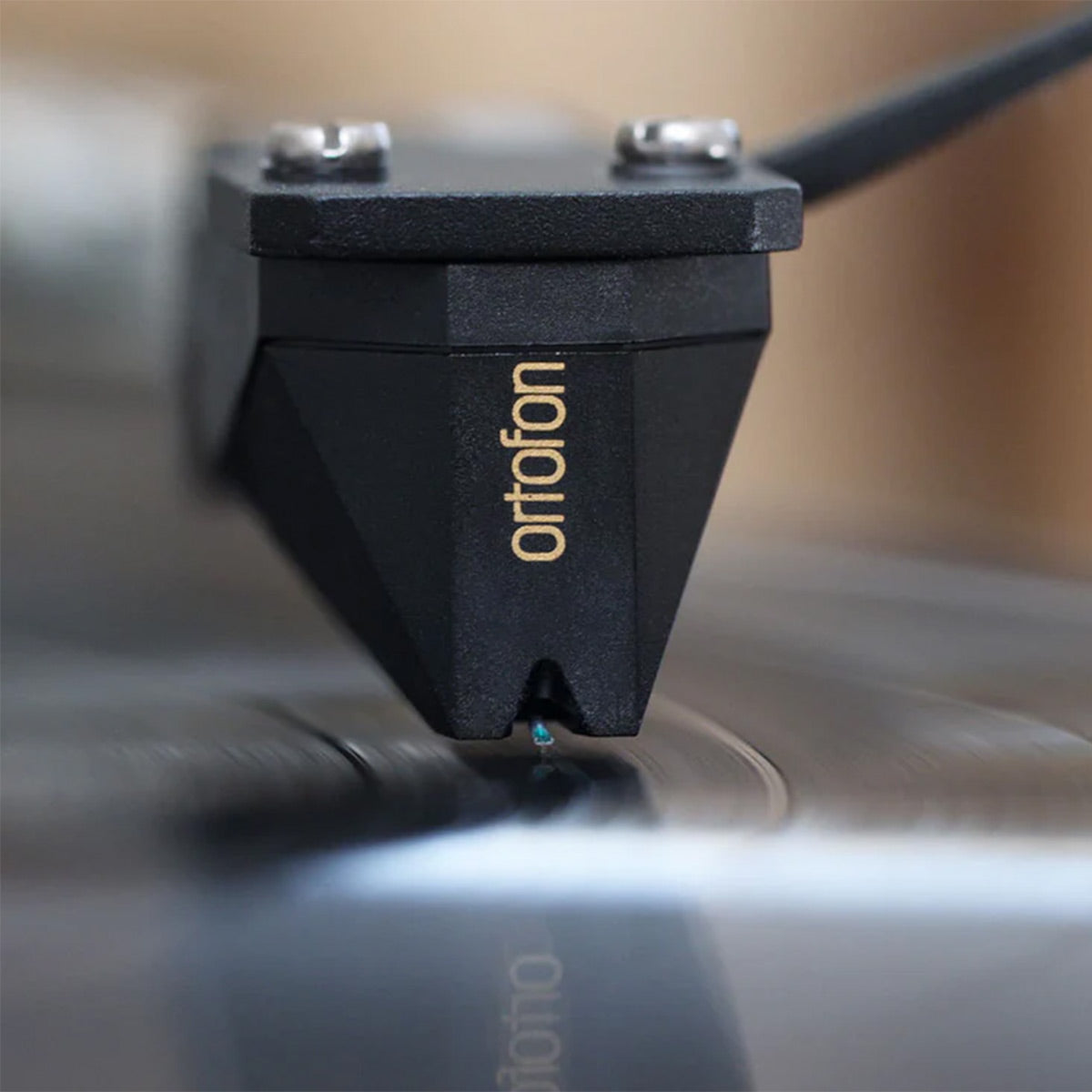

Stylus

The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.

Split Pole Pin Technology

The 2M Black features a high-performance motor system incorporating quad coils with Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

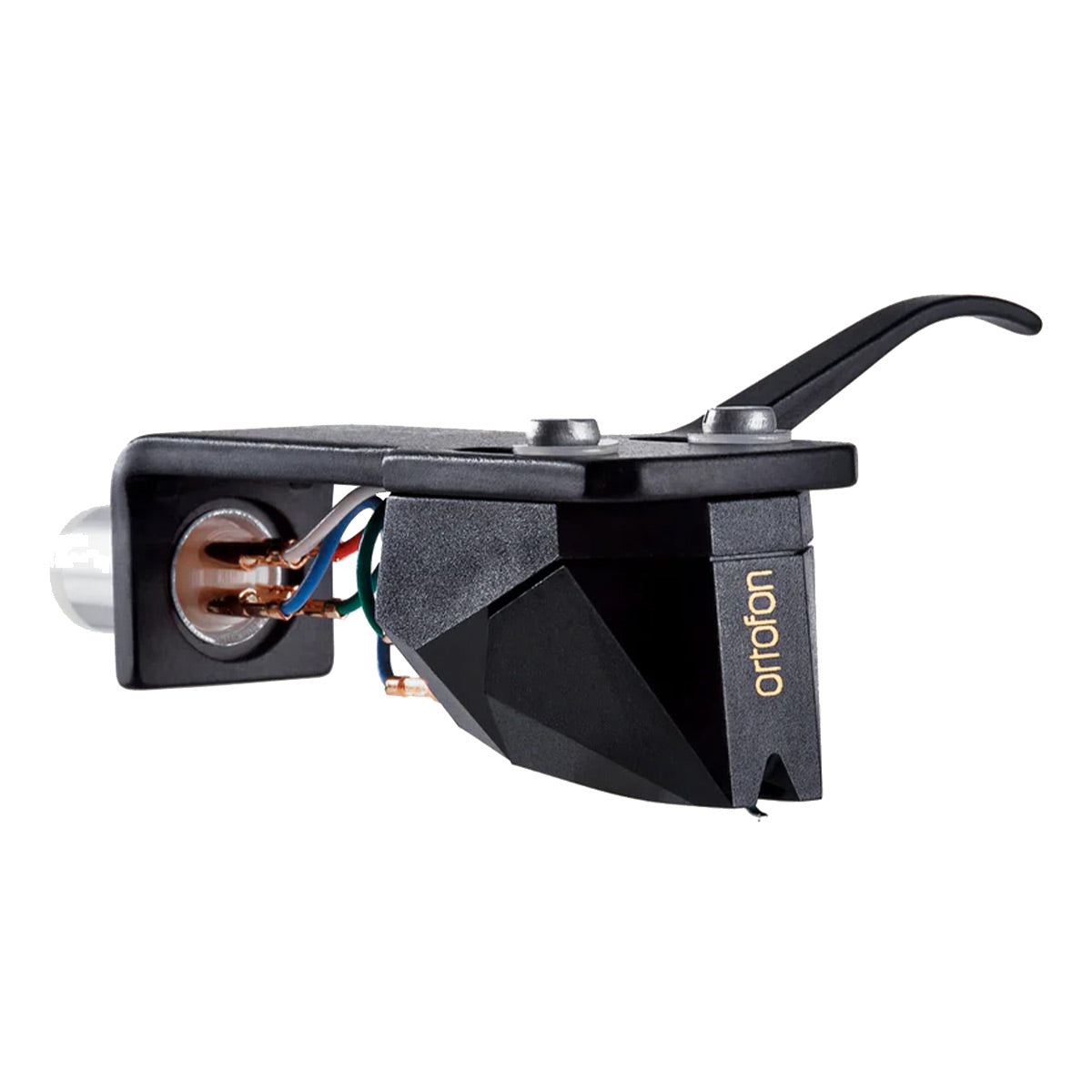

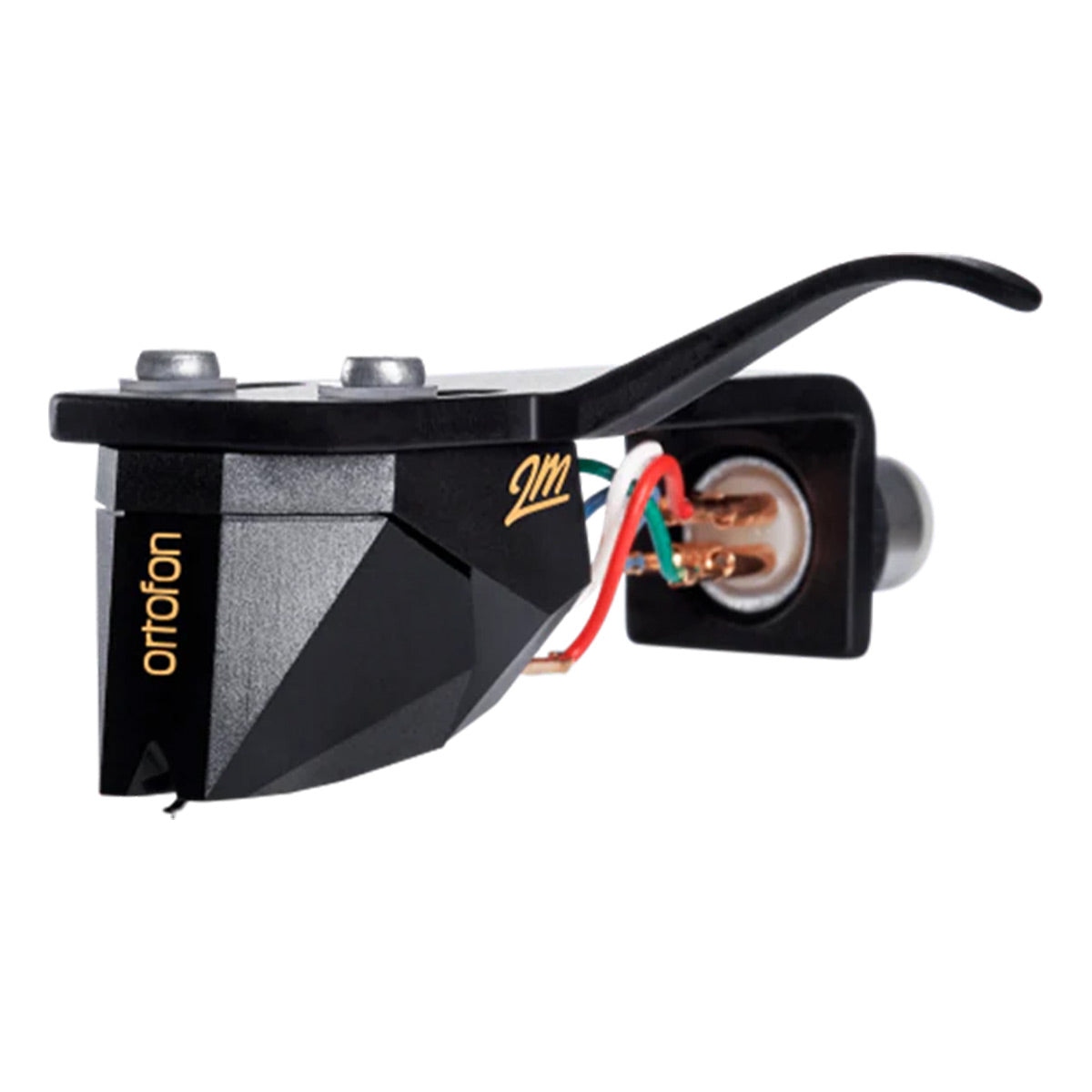

SH-4 Headshell

The 2M is mounted on a classic Ortofon SH-4 headsheel and is for customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 5 mV
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response 20 Hz - 20 kHz: 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 22 µm/mN
  • Stylus type: Nude Shibata
  • Stylus tip radius: r/R 6/50 µm
  • Tracking force range: 1.4-1.7 g (14-17 mN)
  • Tracking force, recommended: 1.5 g (15 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.2 kOhm
  • Cartridge color: Black/Black
  • Cartridge weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 630 mH
  • Recommended load capacitance: 150-300 pF

What's In The Box

  • 2M Black Premounted MM Phono Cartridge
