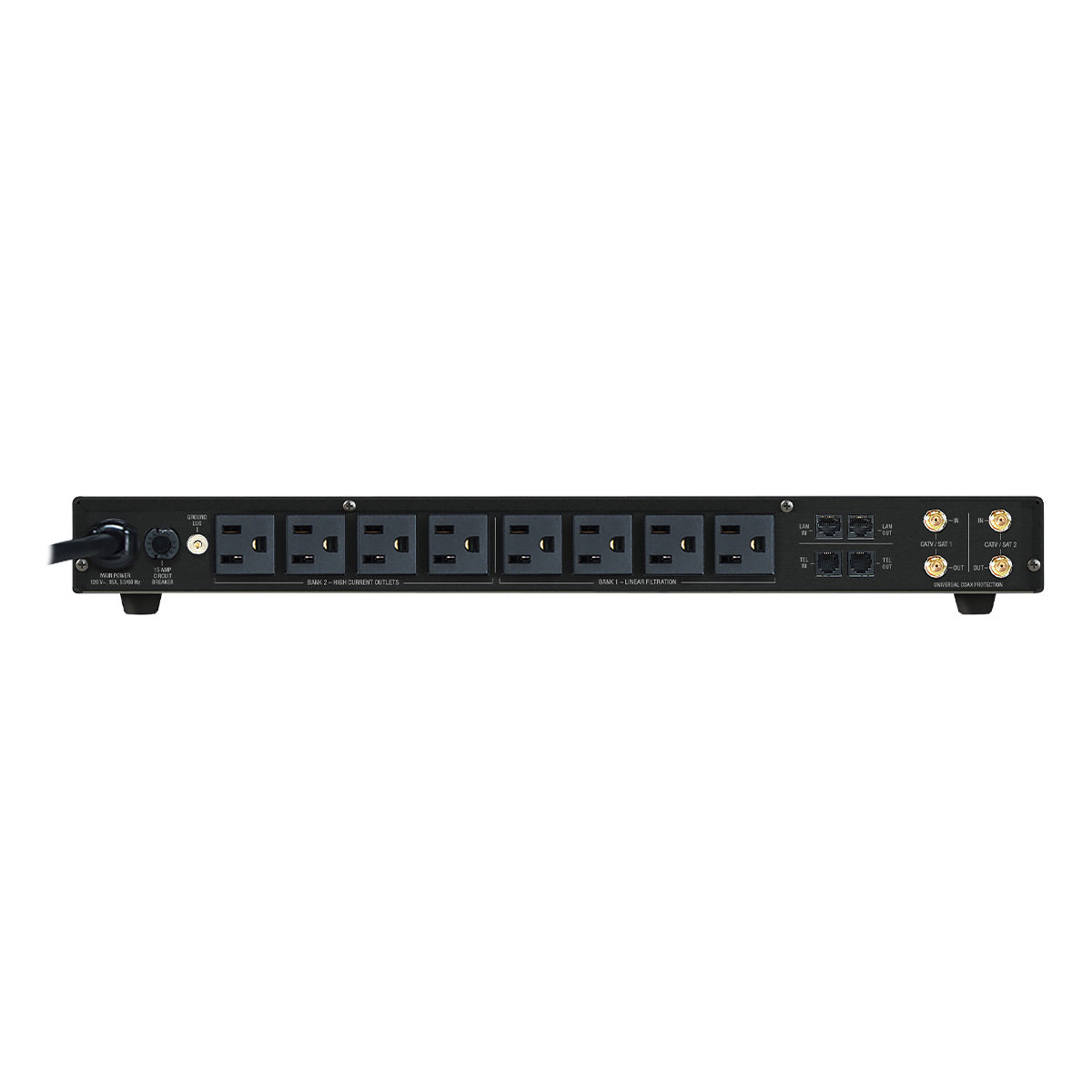

Panamax MR4300 Power Line Conditioner and Surge Protector

Regular price $349.00
Sale price $349.00 Regular price
$504.17 Save $155.17 (31%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Sep 15 – Tue, Sep 22
Man with brown hair and beard wearing glasses and a gray button-down shirt

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781
Sad face plus music note equals happy face graphic

Panamax MR4300 Overview

Product Information

Model: MR4300 | UPC: 050616008938

Specifications

What's In The Box

Product Documents

Product Information

Model: MR4300 | UPC: 050616008938
Nine outlet power management, specifically designed and engineered to provide protection, filtration, and power monitoring for your home theater system.

Features

  • 9 Protected Filtered Outlets
  • Automatic Voltage Monitoring
  • Protect Or Disconnect Technology
  • Level 3 Linear Filtration
  • High Current Outlet Bank
  • Signal Line Surge Protection
  • Media Lights

Automatic Voltage Monitoring

The Nice MR Family of products offers several layers of surge protection. Patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Protect or Disconnect™ Technology

Another critical layer of surge protection is the exclusive Nice/Panamax Protect or Disconnect™ technology. This ultra-fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, the Nice MR4300 immediately disconnects AC power to connected equipment. All Nice Power products offer this core protection technology.

Signal Line Protection

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Nice has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

Specifications

  • General
    • Family: MR Series
    • Line Voltage: 120 Volts
    • Number of Outlets: 9
    • Number of Isolated Banks: 2
    • Outlet Descriptions: All 9 outlets are filtered and surge protected. Bank 2 outlets are high current.
    • Rack Mountable: Yes
    • Rack Ears Included: Yes
    • Front Panel Meter(s): LED voltmeter
    • Front Media Light(s): 2 rotating, dimmable media lights
    • Control: On/Off control to all outlets through front panel power button.
    • Voltage Regulation: No
    • Compliance: cCSAus
    • USB Charging: 1 front panel USB charger
    • Low Voltage Trigger: N/A
    • AC Power Cord: 8 ft. captive, with low profile plug
    • Dimensions (W x H x D): 17″ x 1.75″ x 6″ (2.19″ H with feet)
    • Weight: 6.5 lbs
  • AC Protection
    • AC Protection Technology: Protect or Disconnect; Automatic Voltage Monitoring; L-N, L-G, N-G Protection Modes; Thermal Fusing
    • Under-Voltage Shutoff: 100V ± 2V
    • Over-Voltage Shutoff: 140V ± 4V
    • Maximum Current Rating: 15 Amps
    • Initial Clamping Level: 200V Peak
    • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
    • Single Pulse Energy Dissipation: 1575 Joules
    • Response Time: 1ns
    • Nominal Discharge Current (UL 1449 3rd Edition): 3,000A
  • Filtration
    • Filtration Technology: LiFT
    • Filtration Rating – Bank 1: -70dB min. @ 100kHz; -65dB min. @ 250kHz; -45dB min. @ 500kHz; Max filtration: -80dB @ 150kHz
    • Filtration Rating – Bank 2, High Current, Low Impedance: -50dB min. @ 100kHz; -60dB min. @ 250kHz; -45dB min. @ 500kHz; Max filtration: -63dB @ 250kHz
    • Signal Line Protection: 1 LAN, 1 Tel, 2 Cable/Satellite
  • LAN Protection
    • LAN Protection – Wires Protected: 8-Wires
    • LAN – Jacks: RJ-45
    • LAN – Compatibility: 10/100/1000bT
    • LAN – Clamping Level: 62V ± 6V @ 1 mA
  • Telco Protection
    • TEL Protection – Wires Protected: 2 Wires, 1 Pair (4, 5)
    • Telco – Jacks: RJ-11
    • Telco – Fuseless/Auto-Resetting: Yes
    • Telco – Clamping Level: 260V
  • Coax Protection
    • Coax Protection – Shielded: Yes
    • Coax – Insertion Loss: < 0.5 dB
    • Coax – HD 1080 i/p Ready: Yes
    • Coax – Frequency Range: 0 MHz – 2.2 GHz
    • Coax – Connections: Female “F”, Gold Plated
    • Coax – Clamping Level: 75V
    • Coax – Bidirectional: Yes

What's In The Box

  • MR4300 Power Line Conditioner and Surge Protector
  • Rack Ears
  • Power Cord
  • Manual
