Polk Audio Signature Elite ES90 Dolby Atmos Height Speaker Cable Bundle (Black)

Regular price $449.00
Sale price $449.00 Regular price
$518.99 Save $69.99 (13%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Nov 3 – Mon, Nov 10
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 300849-01-00-005+PR14250 | UPC: 632665614898

Specifications

What's In The Box

Product Information

Model: 300849-01-00-005+PR14250 | UPC: 632665614898

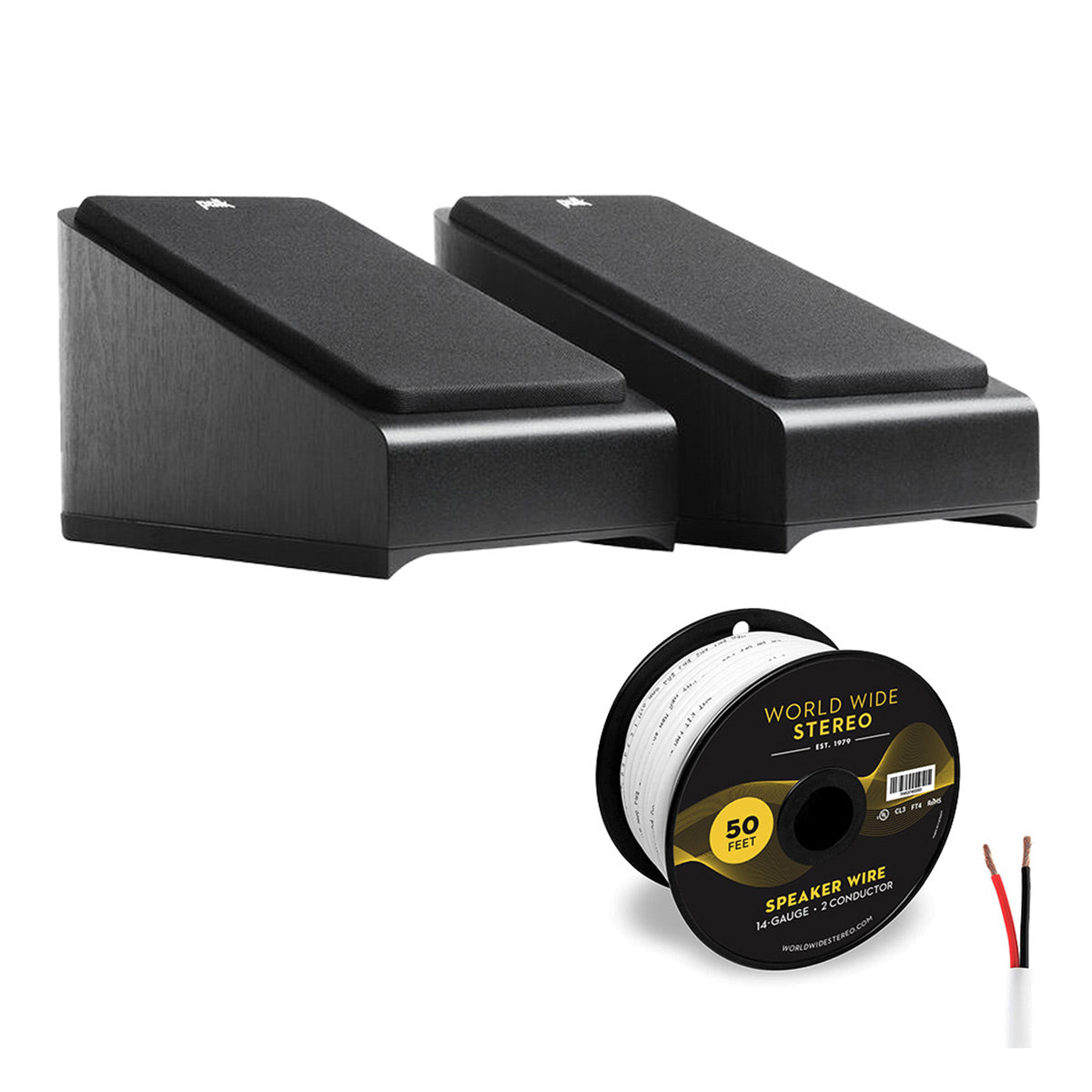

This Package Includes

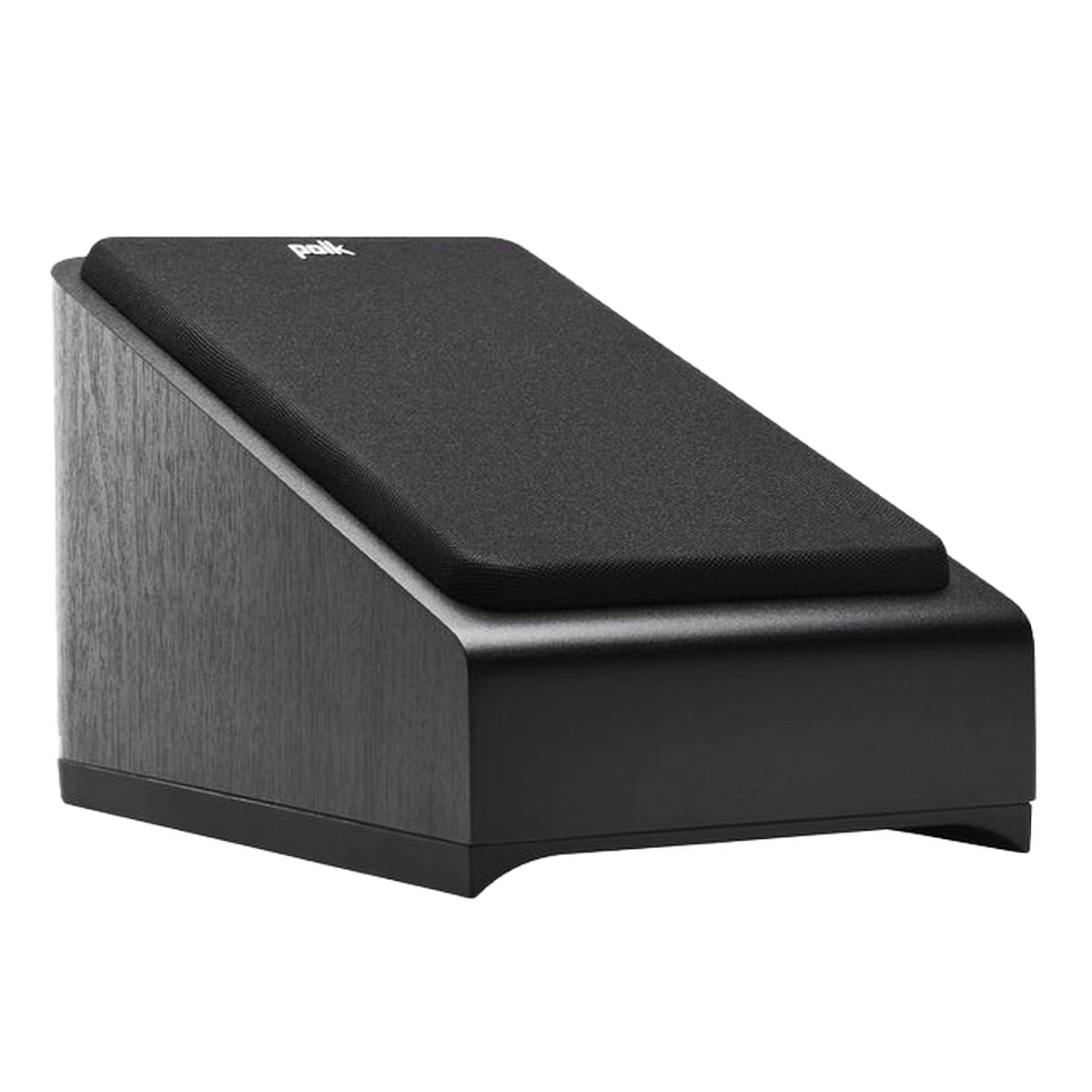

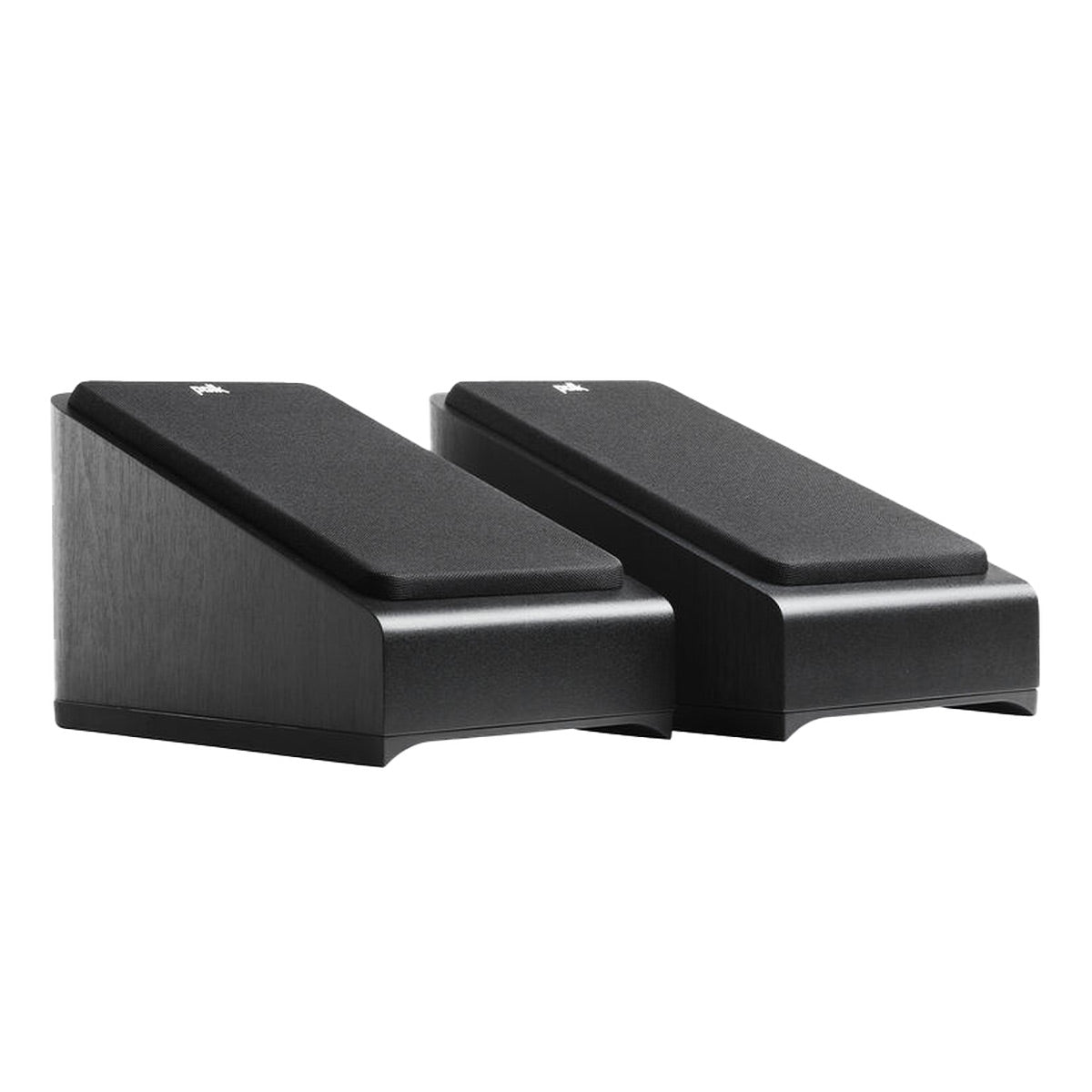

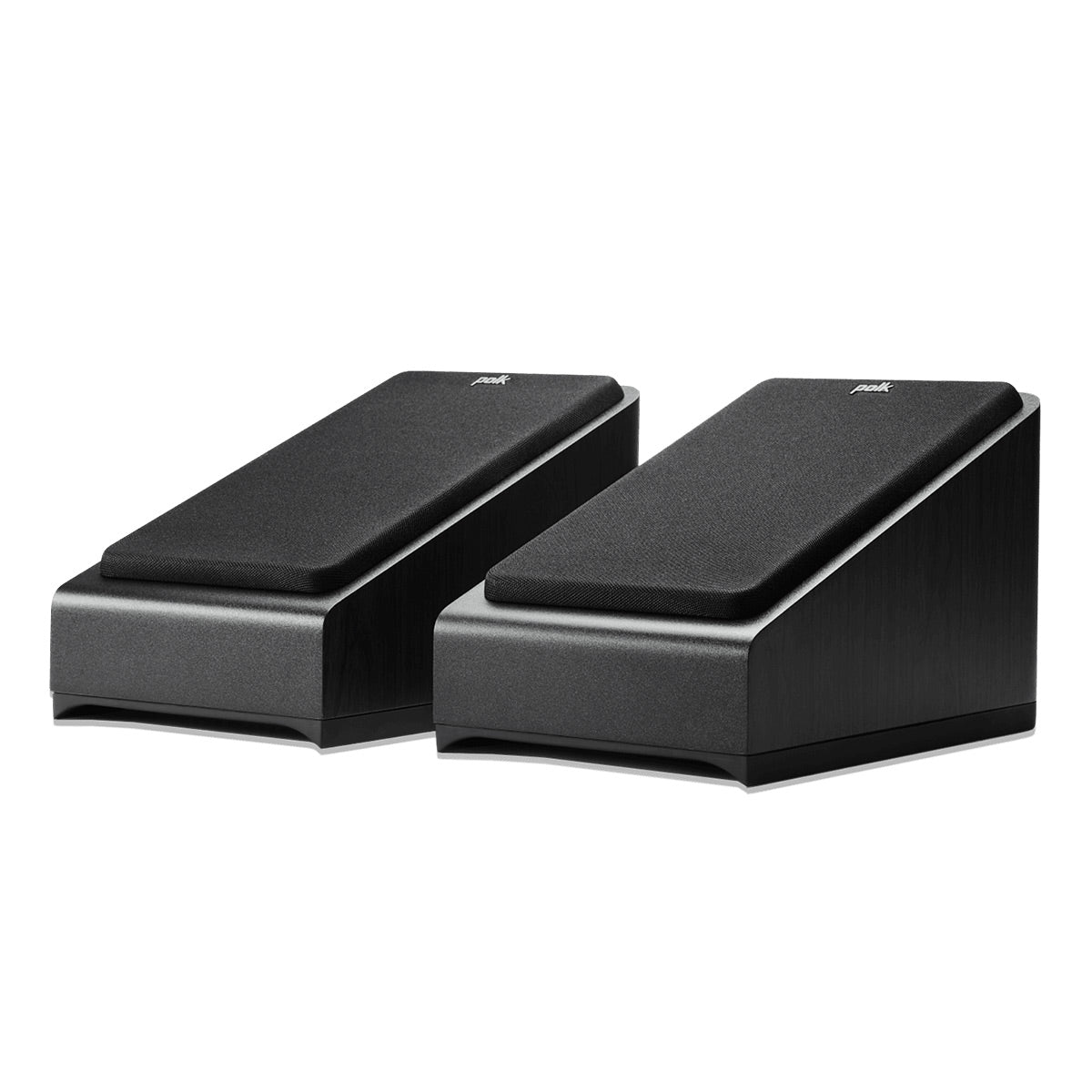

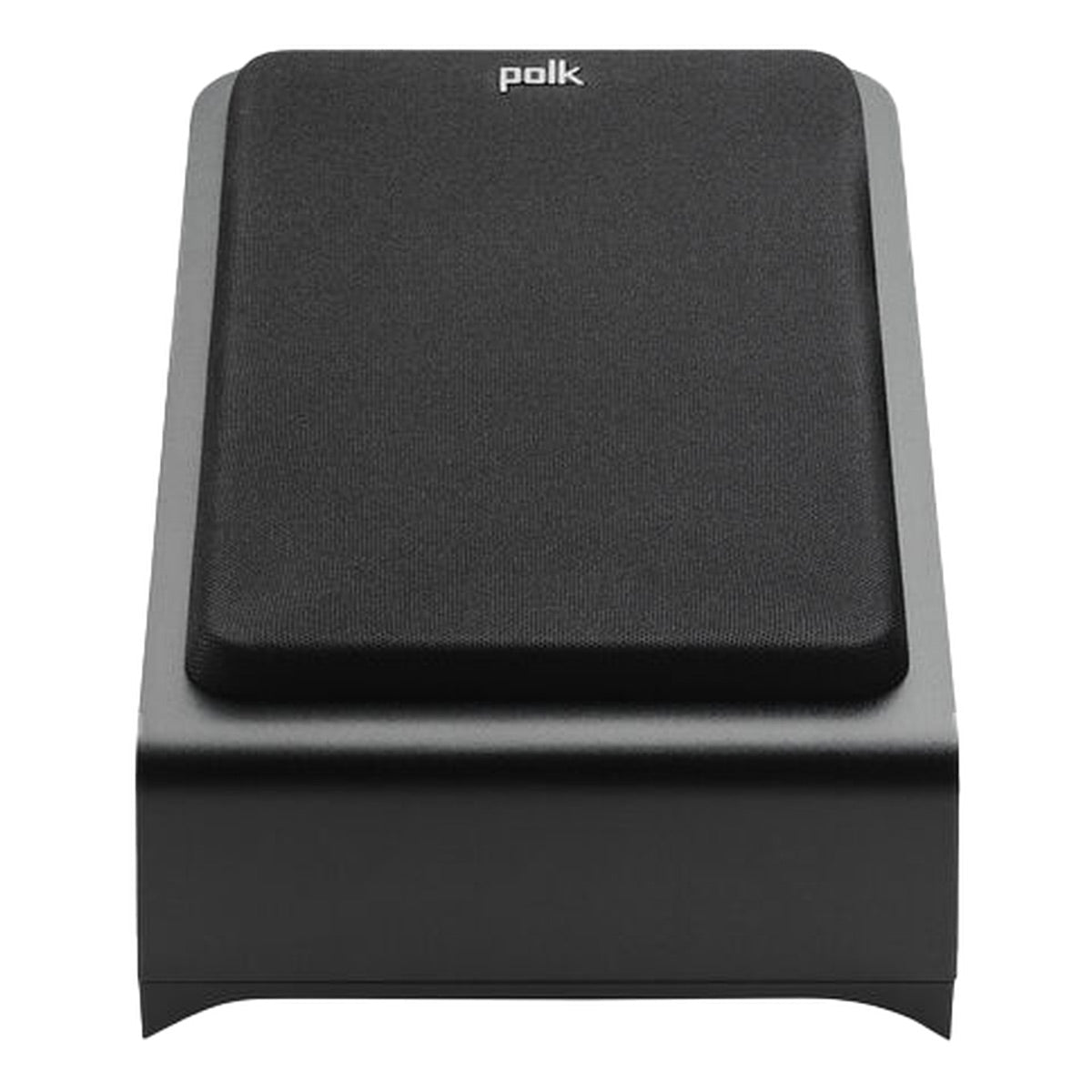

Polk Audio Signature Elite ES90 Dolby Atmos Height Module - Pair

Cinematic Overhead Sound for Movies, Music, and More

Add Dolby Atmos-certified height modules to Signature Elite ES20, ES55, and ES60 and Signature S20, S55, and S60 speakers to elevate immersive home theater experiences with overhead sound. The modules fit securely atop these floor-standing and bookshelf speakers; their upward-angled, full-range drivers reflect sound off the ceiling for ultra-realistic, enveloping height effects.

Features

  • Extra-Large 5.25” Woofer
  • 1” Terylene Dome Tweeter
  • Secure Fit
  • Easy Setup
  • Anti-Diffraction Grille

The Ultimate Atmos Experience

Elevate immersive home theater experiences with Dolby Atmos-certified height modules.

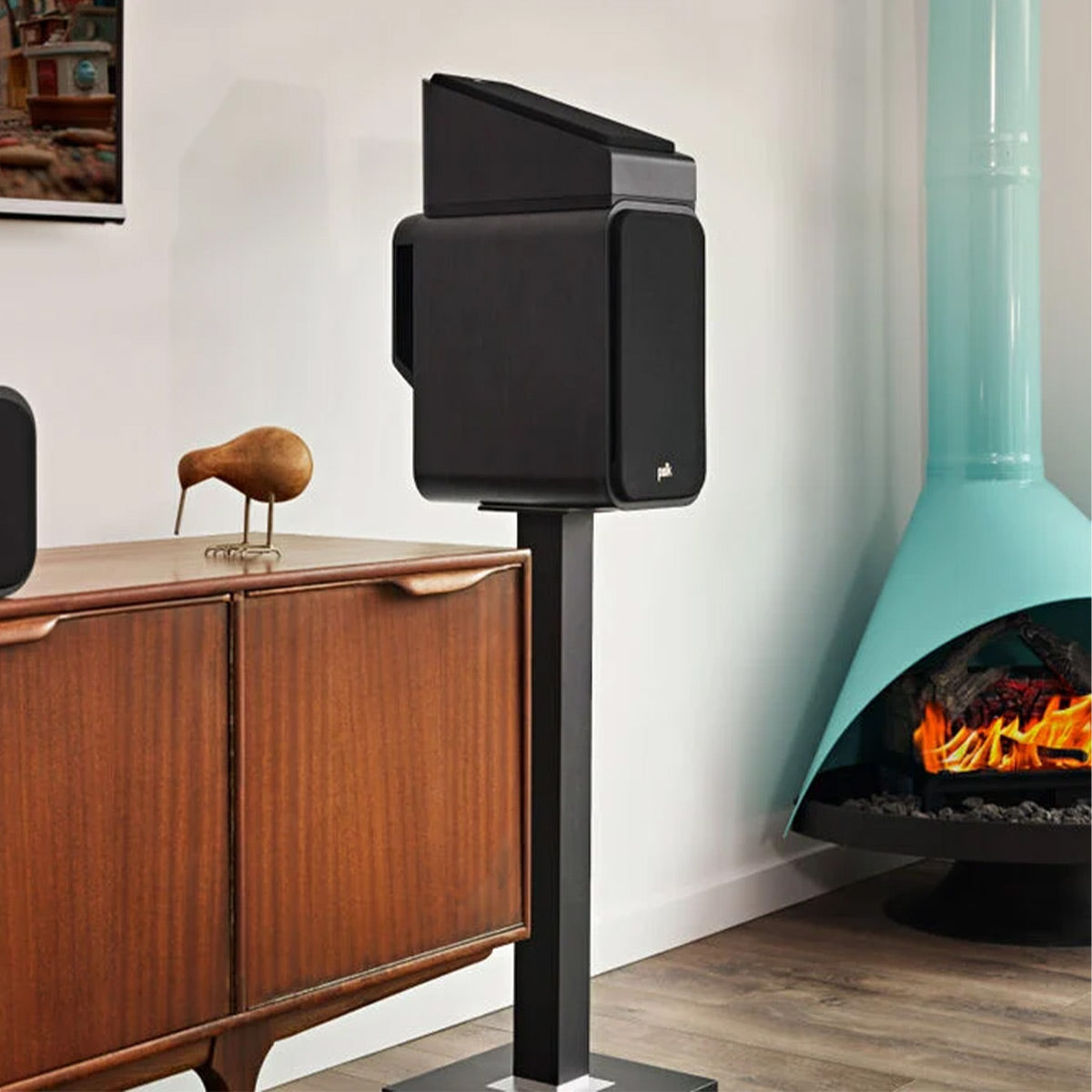

A Perfect Fit

Modules attach securely to Signature Elite ES20, ES55, and ES60 speakers.

Rich, Full-Range Overhead Effects

Timbre-matched 5.25” woofer and 1” Terylene dome tweeter for powerful, enveloping sound.

Dolby Atmos and DTS:X

From jets flying overhead to enveloping otherworldly effects, experience your favorite movies, music, and games on a whole new plane with true Dolby Atmos, DTS:X, or IMAX Enhanced immersion.

Timbre-Matched For Seamless Sound

Signature Elite and Signature Series speakers feature common driver technologies, delivering a cohesive soundstage in any configuration.

A Perfect Fit

Modules attach securely to Signature Elite ES20, ES55, and ES60 speakers.

Easy Power Matching

Match the ES90 with any 4- or 8-ohm A/V receiver that provides a minimum of seven channels and supports Dolby Atmos, DTS:X, or DTS Virtual:X.

Elevate Any Soundtrack

Use ES90s as discrete immersive height channels or to experience height effects in upmixed 2.1 and 5.1-channel soundtracks (compatible receiver required).

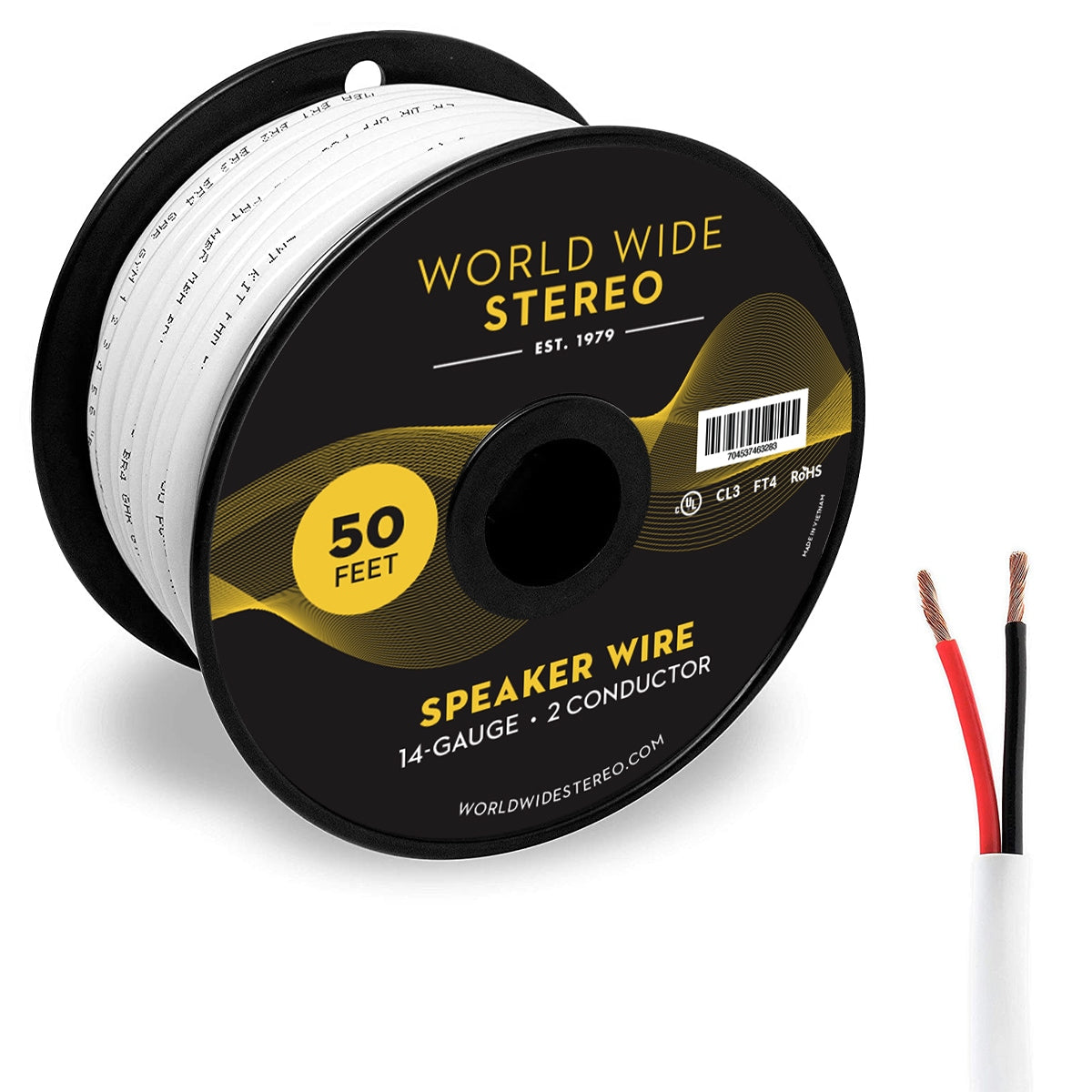

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

This high-quality 14-Gauge Oxygen-Free Copper Wire, Lead-Free PVC jacketed speaker cable may be used to connect speakers to any receiver or amplifier and is rated for in-wall use.

Product Details

  • 14AWG x 2 Conductor
  • Color: White
  • Put-Up: 50 Feet

Cable Technologies

  • 14-gauge Oxygen-Free Copper wire
  • Round jackets
  • Ripcord
  • Lead-Free PVC

Certifications

  • UL CL3-rated for in-wall use
  • FT4
  • RoHS

Specifications

Polk Audio Signature Elite ES90 Dolby Atmos Height Module - Pair

  • Speaker Type: Height (topper)
  • Quantity Included: Pair
  • Tweeter: 1 in. (2.5 cm) Terylene dome
  • Midrange/Midbass: 5.25 in. mica-reinforced polypropylene driver
  • Crossover Frequency: 2200 Hz
  • Frequency Response
    • -10dB Frequency Limits: 52 Hz–40 kHz
    • -3dB Frequency Limits: 142 Hz–26 kHz
  • Nominal Impedance: 4Ω (8Ω compatible)
  • Recommended Amplifier Power: 20–150W per channel
  • Sensitivity: 85dB

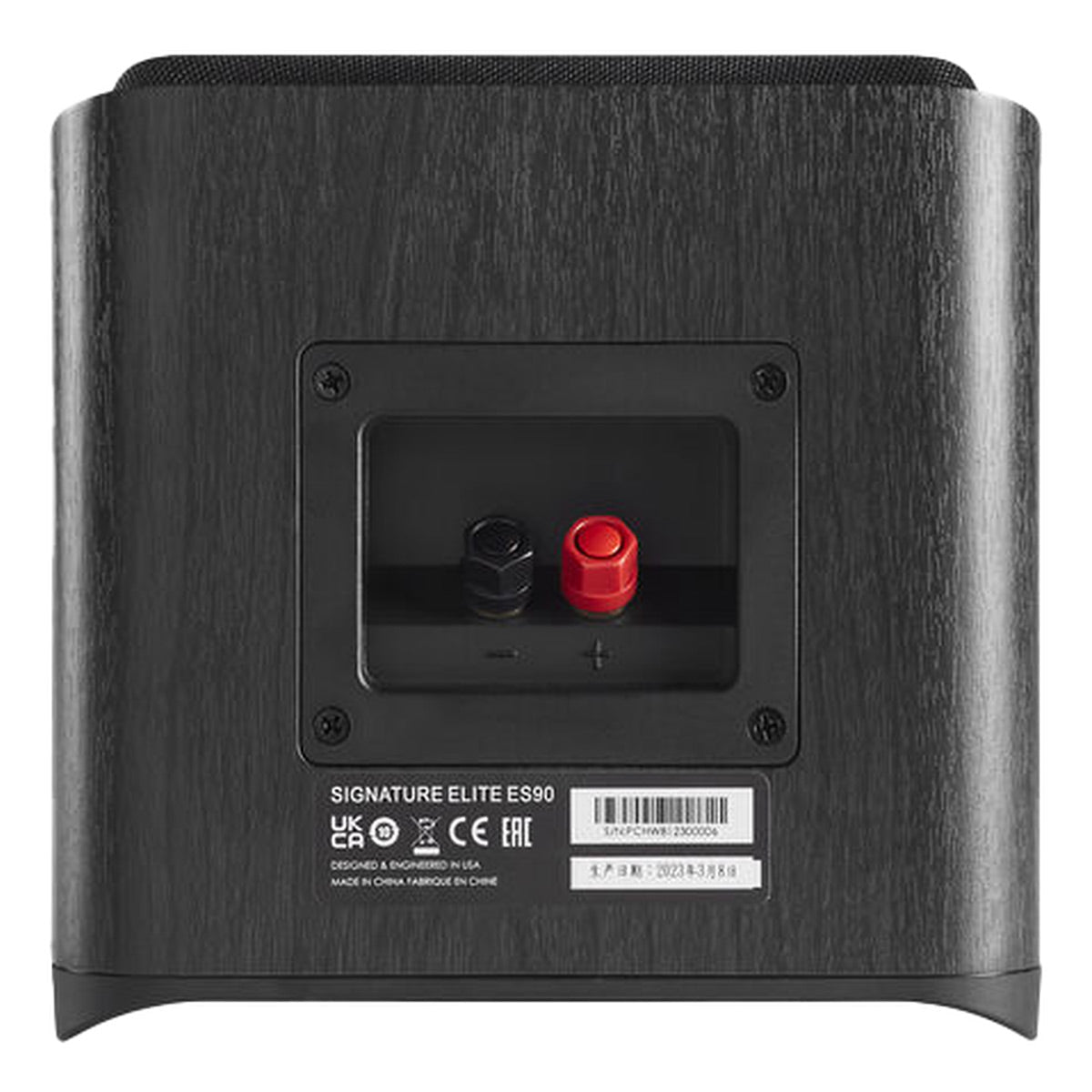

  • Inputs: 1 pair of 5-way binding posts (gold)
  • Certifications: Dolby Atmos
  • Speaker Compatibility
    • Signature Elite Series: ES55, ES60, ES20
    • Signature Series: S20, S55, S60
  • Product Dimensions (W x H x D): 7.5” x 7.3” x 12.1”
  • Weight (one speaker): 8.3 lbs (3.76 kg)

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

  • Style: 75ºC, 300 V Speaker Cable
  • Size: 14 AWG x 2 Conductor
  • Construction:
    • Conductor
      • Size: 14 AWG x 2 Conductor
      • Conductor Material: Annealed Copper Stranded
      • Conductor Construction (mm): 41/0.251 ± 0.003
      • Approximate Outside Diameter (mm): 1.86
    • Insulation
      • Average Thickness (mm): 0.45 ± 0.08
      • Minimum Thickness at any point (mm): 0.36
      • Diameter (mm): 2.70 ± 0.2
      • Material: Lead-Free PVC
      • Color: Core 1 = Red, Core 2 = Black
      • Ripcord: Nylon (1000D)
    • Jacket
      • Nominal Thickness (mm): 0.50 ± 0.08
      • Minimal Thickness at any point (mm): 0.34
      • Diameter (mm): 6.40 ± 0.30
      • Material: Lead-Free PVC
      • Color: White
  • Electrical & Physical Properties
    • Item: 14 AWG x 2 Conductor
    • Rating Temp & Voltage: 75ºC, 300 V
    • Conductor Resistance (Ohm/Km/20°C Max): 8.60
    • Insulation Resistance: 100 Mega Ohm/Km at 20ºC (Minimum)
    • Dielectric Strength (Underwater): 500 V/1 Minute (No broken)
    • Spark Test: 2.5 KV for 0.15 seconds (No broken)
    • Insulation
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Jacket
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Minimum Bending Radius: 15 * F (Minimum)
    • Bonding Force of Insulation: 3.40 (+10%, -30%) (Kgf)
    • Cold Bend Test: -20±1ºC x 4 Hrs (No crack)

What's In The Box

Polk Audio Signature Elite ES90 Dolby Atmos Height Module - Pair

  • Signature Elite ES90 Dolby Atmos Certified Height Module - Pair
  • Manual

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

  • 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet
