Rotel S14 Integrated Network Streamer (Black)

Regular price $1,999.00
Sale price $1,999.00 Regular price
Save $-1,999.00 (%)
OR

Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel S14 Overview

Product Information

Model: FR01279 | UPC: 672563279119

Specifications

What's In The Box

Product Information

Model: FR01279 | UPC: 672563279119

The Rotel S14 Integrated Network Streamer provides seamless access to the near limitless catalog of online music with ease and sophistication. This all-in-one product streams music directly from popular music sources rendering the audio with detailed precision and clarity delivering 150 Watts of Class AB power into 4 ohms to even the most demanding loudspeakers.

Features

  • Powerful Class AB Design
  • Wireless aptX HD & AAC Bluetooth
  • ESS 32-bit DAC
  • Remote Control Included

Oversized Toroidal Transformer

Leveraging over 60-years of audio design experience the S14 renders digital music files including MQA utilizing a 32-bit ESS Sabre Digital to Analog converter. The integrated amplifier circuits feed an array of high current output transistors powered by an oversized toroidal transformer delivering accuracy with exceptional bass control.

Connectivity

Convenient and intuitive the S14 supports both wired and dual-band Wi-Fi network connections for ultimate installation flexibility. Album artwork, track, title, and artist information is presented on the front panel color graphic display. Simple device setup and configuration is also available using the front panel and included remote control.

Streaming

Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.

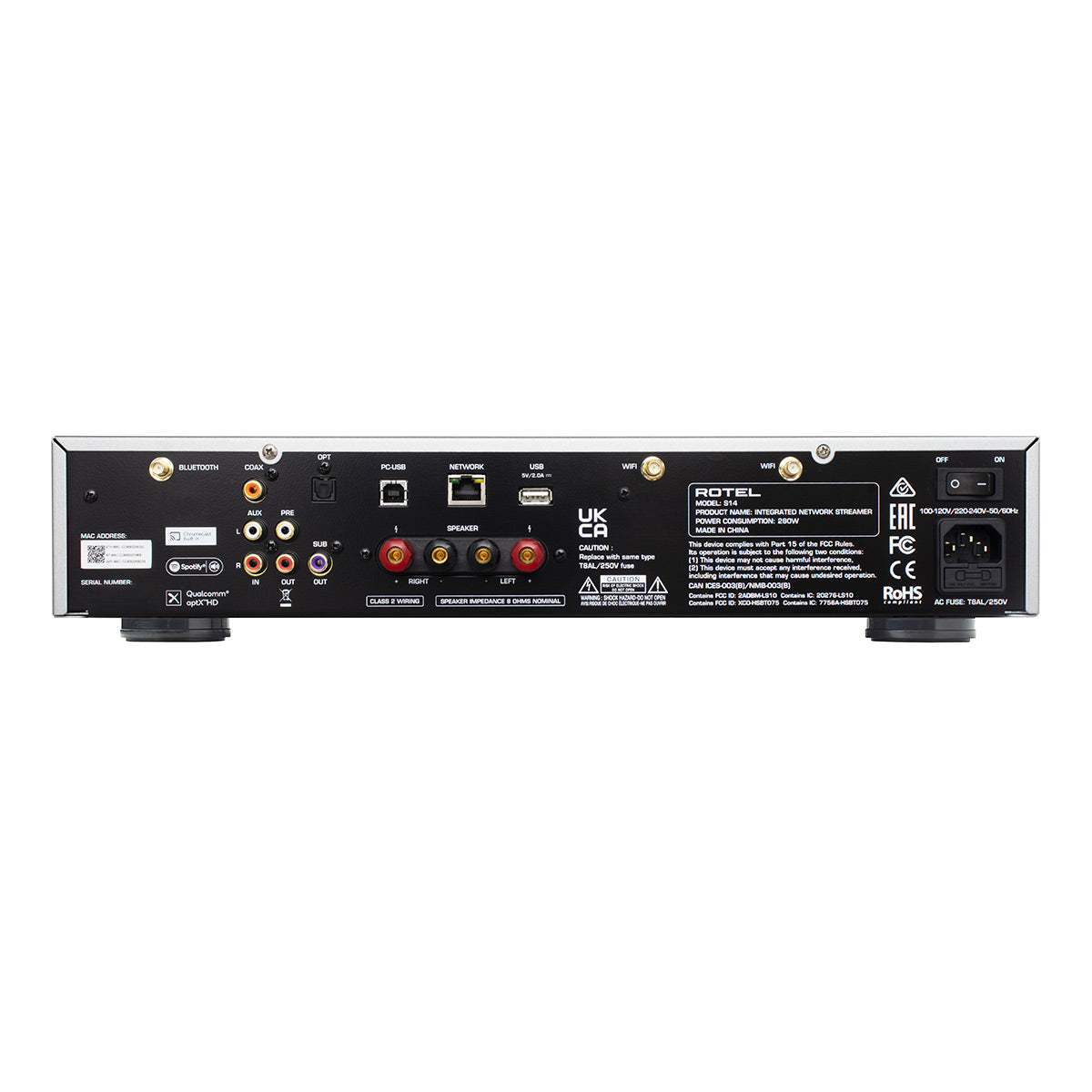

Inputs & Outputs

The S14 also includes Coaxial, Optical, Analog RCA, PC-USB and aptXTM HD Bluetooth providing connection to your favorite audio sources such as CD Players, Tuners and Turntables with line level outputs. A rear USB connection supports playback of MP3, WMA and AAC audio files from flash drives.

Specifications

  • Total Harmonic Distortion: < 0.04%
  • Intermodulation Distortion (60 Hz : 7k Hz, 4:1): < 0.03%
  • Frequency Response (Line Level Inputs): 10 Hz - 100k Hz, ± 0.5 dB
  • Damping Factor (20 Hz – 20k Hz, 8 ohms): 400
  • Input Sensitivity / Impedance (Line Level Inputs): 200 mV / 47k Ohms
  • Input Overload (Line Level Inputs): 4.5 V
  • Tone Controls – Bass / Treble: +/- 10 dB at 100Hz / 10k Hz
  • Signal to Noise Ratio (A weighting, Line Level Inputs): 100 dB
  • Digital
    • Frequency Response: 10Hz - 90k Hz (± 2dB, MAX)
    • Signal to Noise Ratio (A weighting): 98 dB
    • Input Sensitivity / Impedance: - 20 dBFS / 75 ohms
    • Digital Inputs
    • SPDIF LPCM (up to 192k Hz/24 bit)
    • PC-USB USB Audio Class 2.0 (up to 384k Hz/24 bit) *Driver installation required*
    • Support MQA and MQA Studio (up to 384k Hz/24 bit)
  • General
    • Power Requirements: 120V, 60 Hz
    • Standby Power Consumption (Normal): < 0.5 watts
    • Power Consumption: 280 watts
    • BTU (4 ohms, 1/8th power): 733 BTU/h
    • Dimensions (W x H x D): 17” x 3-5/8” x 13-1/2”
    • Panel Height : 3-1/8”
    • Weight (net) 9.15 kg, 20.17 lbs.

What's In The Box

  • S14 Integrated Network Streamer
  • Remote
  • Power Cord
  • Manual
