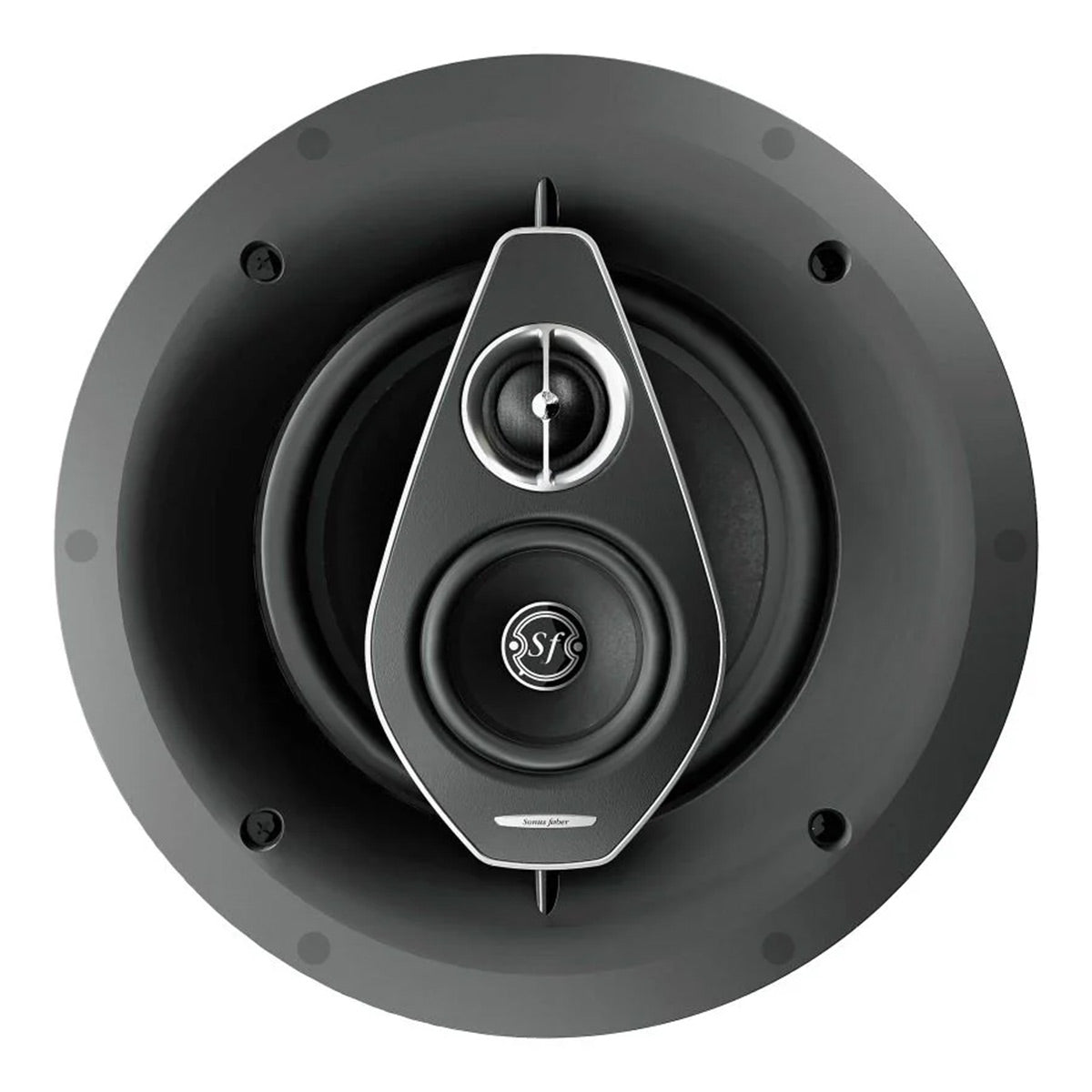

Sonus faber PC-683 3-Way 8" In-Ceiling Speaker - Each

Regular price $900.00
Sale price $900.00 Regular price
Save $-900.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Sonus Faber PC-683 Overview

Product Information

Model: CIL335FIN | UPC: 8056684712748

Specifications

What's In The Box

Product Information

Model: CIL335FIN | UPC: 8056684712748

The Sonus faber PC-683 is a premium in-ceiling speaker designed to deliver exceptional audio performance while seamlessly integrating into any living space. Its sophisticated design and advanced acoustic technologies make it an ideal choice for audiophiles seeking both aesthetics and high-quality sound.

Features

  • High-Performance 3-Way Design
  • Premium Materials and Craftsmanship
  • Seamless In-Ceiling Integration
  • Advanced Acoustic Technologies
  • User-Friendly Installation
  • Flexible Power Handling

Elegant Design Inspired by Olympica Nova

Embodying the craftsmanship of the Olympica Nova Collection, the PC-683 features leather accents around the tweeter and midwoofer, adding a touch of luxury to its appearance. This design not only enhances visual appeal but also reflects Sonus faber's commitment to quality.

Advanced Acoustic Engineering

At the heart of the PC-683 lies a 1.1-inch Damped Apex Dome (DAD) silk dome tweeter, delivering crisp and detailed high frequencies. The 3.1-inch midrange driver, crafted from natural fiber and cellulose pulp, ensures a natural and warm midrange response. Complementing these is an 8-inch woofer designed for deep and controlled bass reproduction, providing a balanced and immersive listening experience.

Seamless Integration and Customization

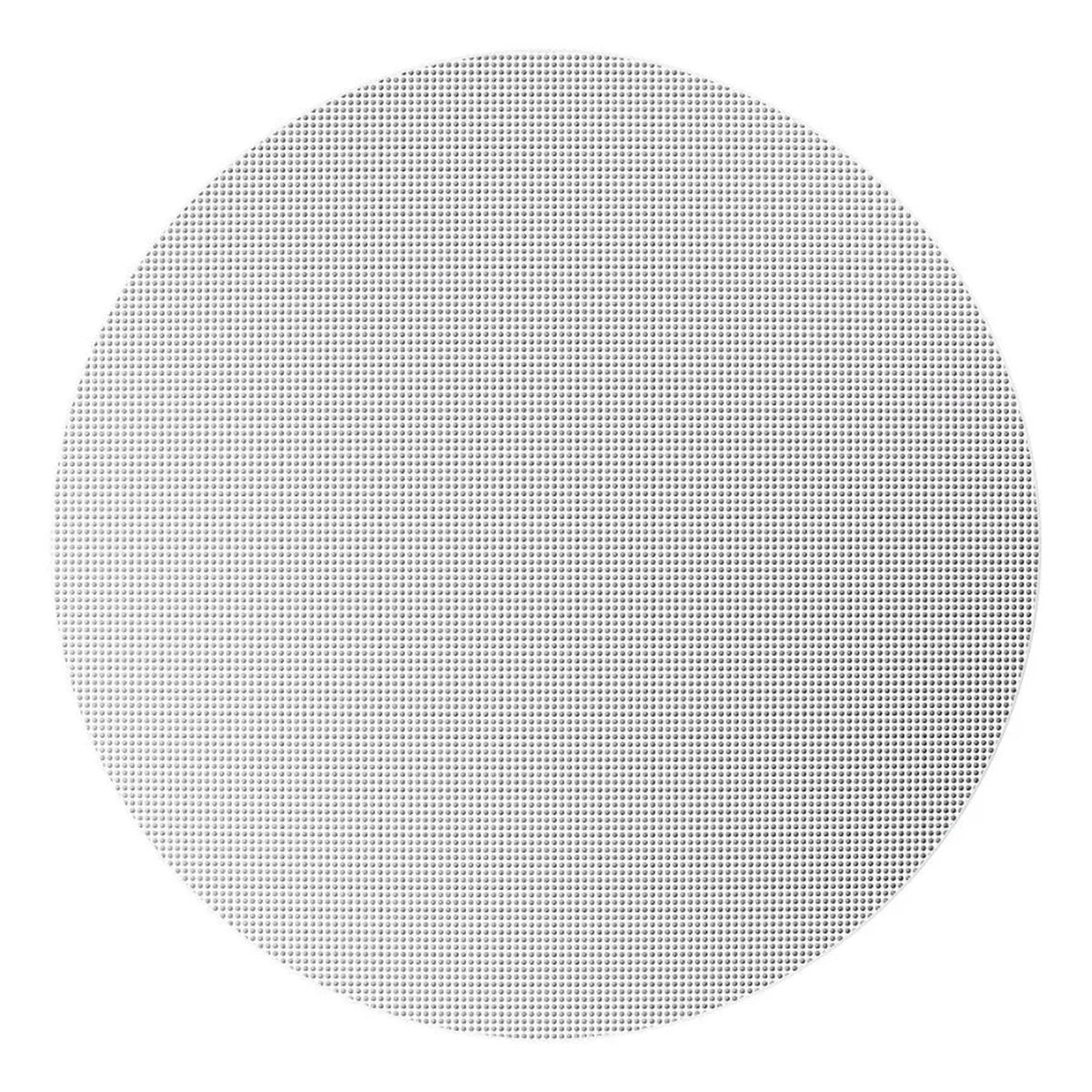

Designed for versatility, the PC-683 comes with a magnetic, edgeless metal grille that can be painted to match any décor, allowing the speaker to blend effortlessly into various environments. Additionally, both round and square grille options are available to suit different aesthetic preferences.

Effortless Installation

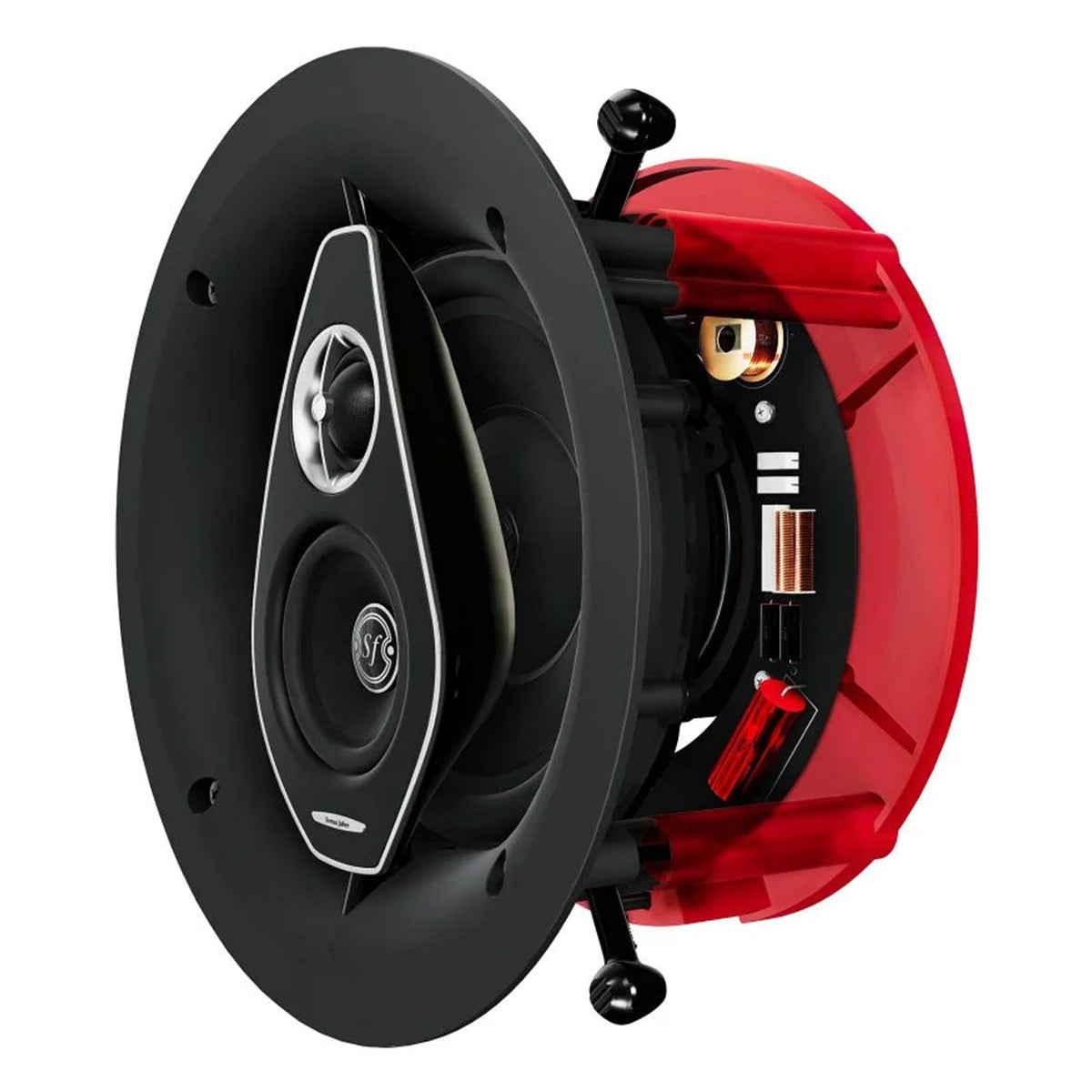

The PC-683 is engineered for easy installation, featuring a swing-out dog fixing system that securely attaches the speaker to plasterboard surfaces. For new construction projects, an optional pre-mount kit is available, ensuring a straightforward and efficient setup process.

Specifications

  • Loudspeaker System: 3-way in ceiling system. Infinite baffle.
  • Tweeter – D.A.D. Driver: 1.1”
  • Midrange: 3.1”
  • Woofer: 8”
  • Crossover Frequency - Paracross Topology: 1400 - 3,500 Hz
  • Frequency Response: 45 – 25,000 Hz (-6dB)
  • Sensitivity (2.83 Vrms @ 1m): 90 dBSPL
  • Nominal Impedance: 4 Ω
  • Suggested Amplifier Power Output: 40 – 200 W Undistorted Signal
  • Frame Outer Ø: 11.1”
  • Cut Out Ø: 10.1”
  • Depth Behind Surface: 5.7”
  • Protrusion: 0.51”
  • Net Weight: 10 lbs.

What's In The Box

  • PC-683 3-Way 8" In-Ceiling Speaker - Each
  • Bezel-Free Square Magnetic Grille
  • Manual
