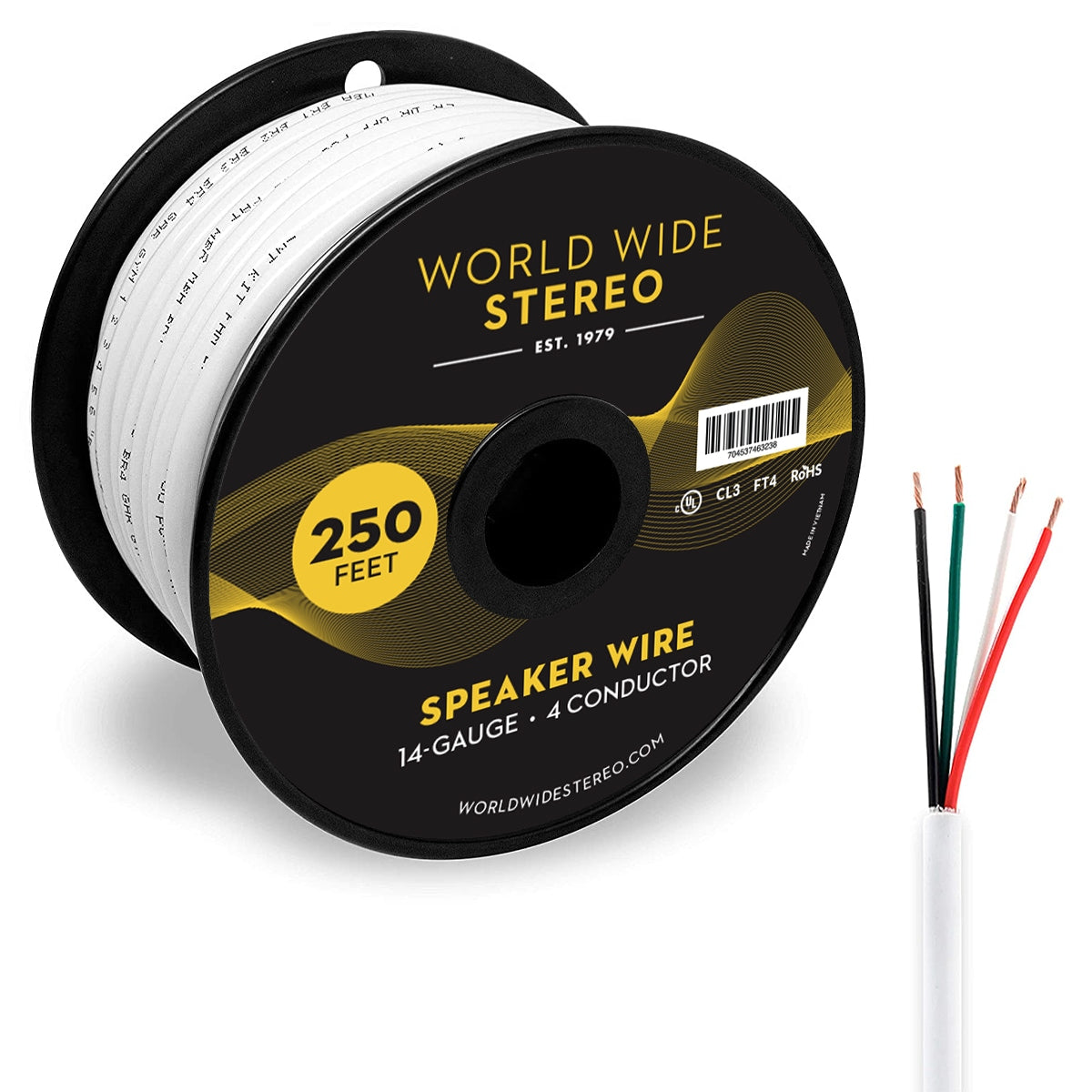

World Wide Stereo 14-Gauge, 4-Conductor Copper Speaker Wire - 250 Feet
Overview
Product Information
Specifications
What's In The Box
Product Information
This high-quality 14-Gauge Oxygen-Free Copper Wire, Lead-Free PVC jacketed speaker cable may be used to connect speakers to any receiver or amplifier and is rated for in-wall use.
Product Details
- 14AWG x 4 Conductor
- Color: White
- Put-Up: 250 Feet
Cable Technologies
- 14-gauge Oxygen-Free Copper wire
- Round jackets
- Ripcord
- Lead-Free PVC
Certifications
- UL CL3-rated for in-wall use
- FT4
- RoHS
Specifications
- Style: 75ºC, 300 V Speaker Cable
- Size: 14 AWG x 4 Conductor
- Construction:
- Conductor
- Size: 14 AWG x 4 Conductor
- Conductor Material: Annealed Copper Stranded
- Conductor Construction (mm): 41/0.251 ± 0.003
- Approximate Outside Diameter (mm): 1.86
- Insulation
- Average Thickness (mm): 0.45 ± 0.08
- Minimum Thickness at any point (mm): 0.36
- Diameter (mm): 2.70 ± 0.2
- Material: Lead-Free PVC
- Color: Core 1 = Red, Core 2 = Black, Core 3 = White, Core 4 = Green
- Ripcord: Nylon (1000D)
- Jacket
- Nominal Thickness (mm): 0.55 ± 0.08
- Minimal Thickness at any point (mm): 0.38
- Diameter (mm): 7.60 ± 0.30
- Material: Lead-Free PVC
- Color: White
- Conductor
- Electrical & Physical Properties
- Item: 14 AWG x 4 Conductor
- Rating Temp & Voltage: 75ºC, 300 V
- Conductor Resistance (Ohm/Km/20°C Max): 8.60
- Insulation Resistance: 100 Mega Ohm/Km at 20ºC (Minimum)
- Dielectric Strength (Underwater): 500 V/1 Minute (No broken)
- Spark Test: 2.5 KV for 0.15 seconds (No broken)
- Insulation
- Unaged
- Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
- Elongation: 100% (Minimum)
- Aged
- Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
- Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
- Unaged
- Jacket
- Unaged
- Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
- Elongation: 100% (Minimum)
- Aged
- Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
- Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
- Unaged
- Minimum Bending Radius: 15 * Φ (Minimum)
- Bonding Force of Insulation: 3.40 (+10%, -30%) (Kgf)
- Cold Bend Test: -20±1ºC x 4 Hrs (No crack)
What's In The Box
- 14-Gauge, 4-Conductor Copper Speaker Wire - 250 Feet
